22 Years History "CHEN GAO " 88ton Hot Chamber Zinc Die Casting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
CHEN GAO
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGDONG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
22 Years History CHEN GAO Brand 30 Ton Full Automatic Metal Die Casting Machine for ZincNegotiableMOQ: 1 Set -
22 Years Brand CHEN GAO 88T Full Automatic Metal Die Casting Machine for ZincNegotiableMOQ: 1 Set
-
22 Years History CHEN GAO Brand 30T High Pressure Automatic Zinc Metal Die Casting MachineNegotiableMOQ: 1 Set
-
22 Years History CHEN GAO Brand 88T High Pressure Automatic Zinc Metal Die Casting MachineNegotiableMOQ: 1 Set
-
22 Years History CHEN GAO Brand 130T High Pressure Automatic Zinc Metal Die Casting MachineNegotiableMOQ: 1 Set
Condition
New
Place of Origin
Guangdong, China
Brand Name
CHEN GAO
Model Number
CG-88
Voltage
380V
Power(W)
11KW
Dimension(L*W*H)
3845*1475*1858mm
Weight
4ton
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
CHEN GAO ------- 22 years history for die casting machine

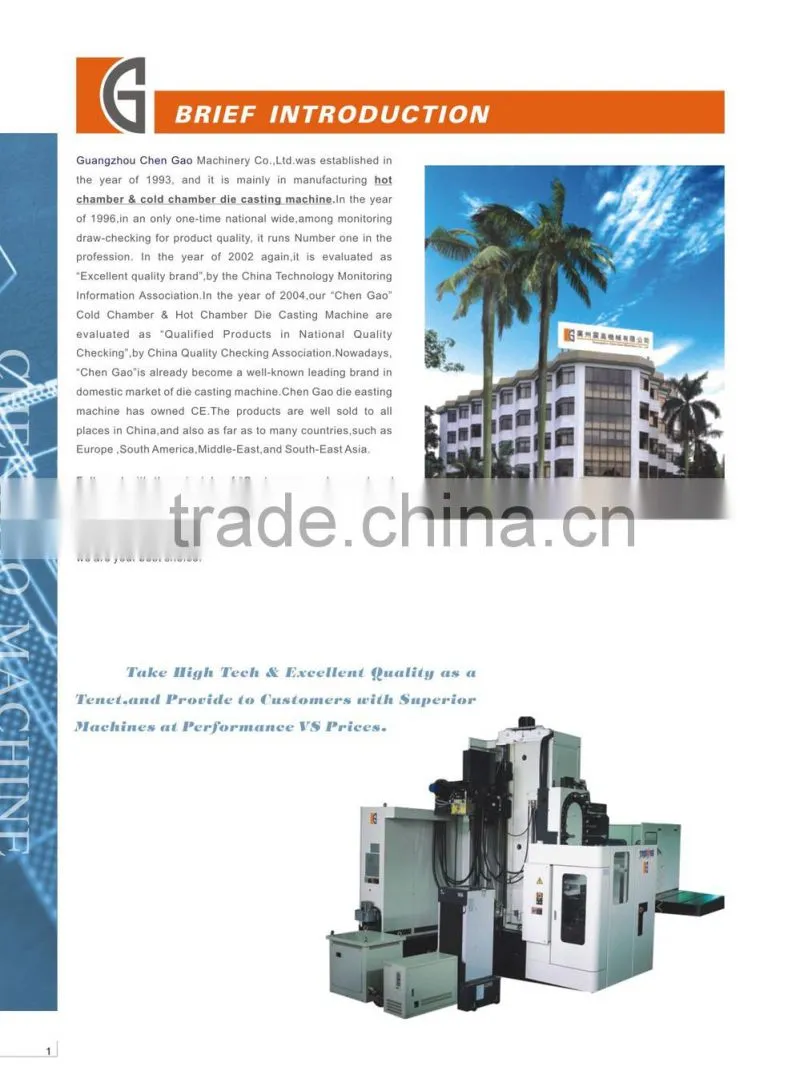

1 company brief :
"CHEN GAO " was established in the year of 1993 ,located in Guangzhou city ,China . Major in manufacturing hot chamber die casting machine and cold chamber die casting machine . CE standard ,not only sold well in China ,also export to many different countries . Hope can have chance to provide our high quality machine and professional service .

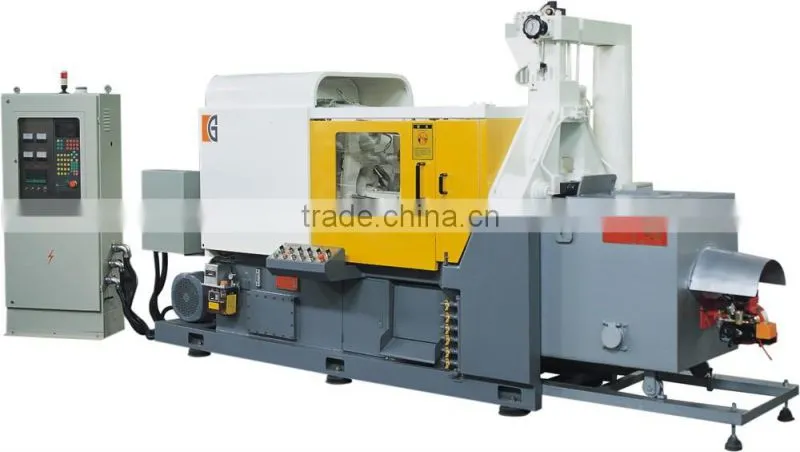

Hot chamber die casting machine
3 Machine specificatoin :
| Name | Brand | Country | |||
| Hydralic valve | REXROTH | Germany | |||
| YUKEN | Janpan | ||||
| Pump | YUKEN | Janpan | |||
| Pneumatic System | FIESTO | Germany | |||
| SMC | Janpan |
| Item | Material | Remark | |||
| Mold platens and Toggle | QT500-7 | CNC machine in CHEN GAO | |||
| Pin | 38CrMoLu | ||||
| Copper Brush | Brass |
| DESCRIPTION | UNIT | CG-130 | |
| DIE LOCKING SYSTEM | |||
| LOCKING FORCE | ton | 130 | |
| TIE-BAR DIAMETER | mm | 75 | |
| SPACE BETWEEN TIE-BAR (WXH) | mm | 410*410 | |
| MOLD THICKNESS(MIN/MAX) | mm | 160/450 | |
| DIE STROKE | mm | 280 | |
| SHOT POSITION (CENTRE/OFFSET) | mm | 0/65 | |
| INJECTION SYSTEM | |||
| DIAMETER OF PLUNGER | mm | 55/60 | |
| PLUNGER STORKE | mm | 140 | |
| INJECTION FORCE(MAX) | ton | 9.5 | |
| MAX SHOT WEIGHT(ZN) | kg | 1.6/1.9 | |
| TRAVERSE STORKE | mm | 210 | |
| CRUCIBLE CAPACITY | kg | 350 | |
| ELECTRIC MELTING CAPACITY | kg | 300 | |
| EJECTION SYSTEM | |||
| EJECTION FORCE | ton | 7.3 | |
| EJECTION STORKE(MAX) | mm | 70 | |
| HYDRAULIC POWER SYSTEM | |||
| MOTOR POWER | KW | 15 | |
| ELECTRIC FURNACE POWER | KW | 21 | |
| OPERATION PRESSURE | kg/cm² | 145 | |
| CAPACITY OF OIL TANK | L | 250 | |
| ACCUMULATIOR | L | 20 | |
| OTHER | |||
| MACHINE SIZE | mm | L:4129 | |
| W:1460 | |||
| H:2100 | |||
| MACHINE WEIGHT | ton | 5 | |
