1. Company brief :
Guangzhou Chen Gao Die-Casting Machinery Co., Ltd. was established in 1993,and located in Guangzhou city ,China .Major in manufacturing high pressure zinc die casting machine (30ton—280ton)and high pressure aluminium die casting machine(130ton---1,000ton) . Good quality and favorable price .

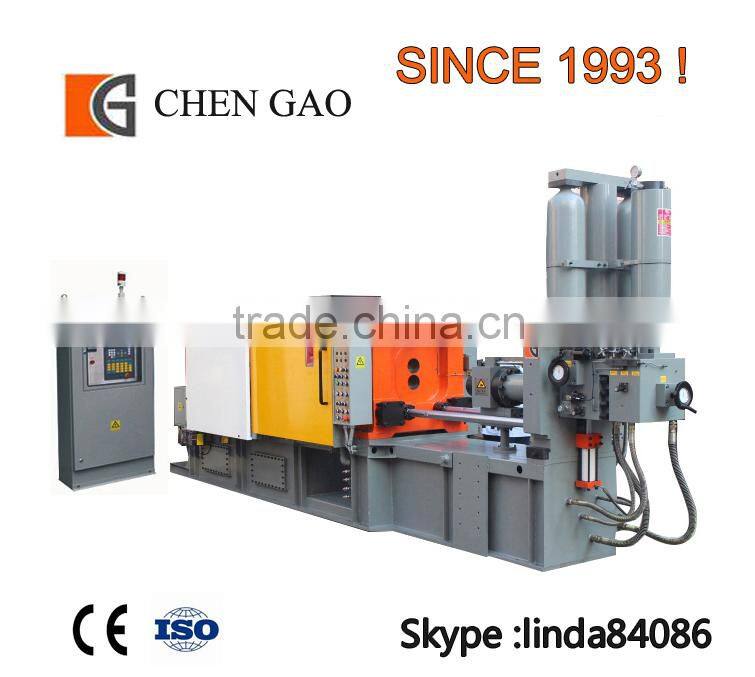

high pressure aluminium die casting machine
Model :ZG-180

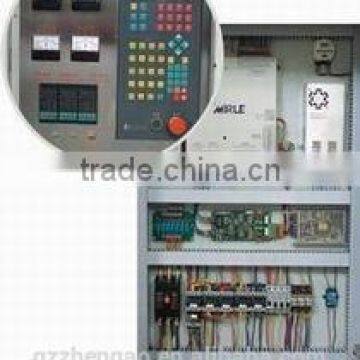

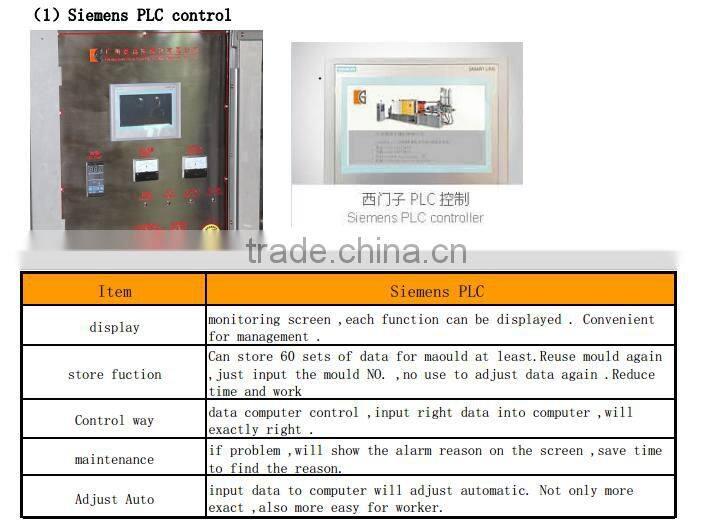

1 Siemens PLC control

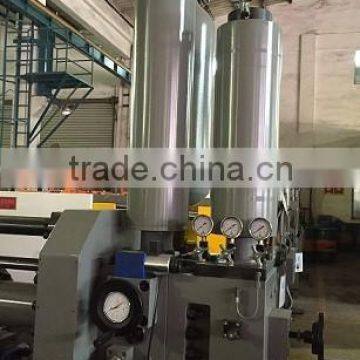

2 Double pump and double proportional pressure folw rate control adopted for hydraulic system .

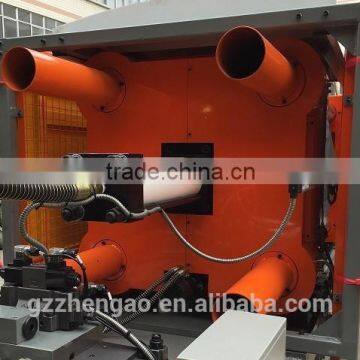

3 Cabin type structure is adopted for front and secondary platens with high rigidity and comparable lighter weight .
4 Enhanced ribs are adopted for tail platen and C type frame ,more stong .
5 Design with especially large die height ,and larger than similar type of machine .

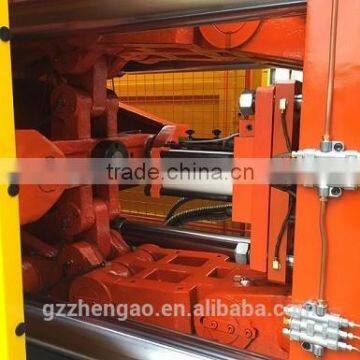

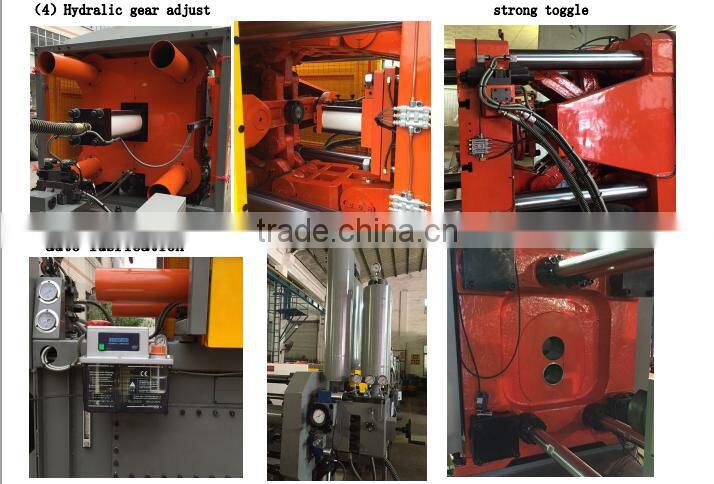

6 Mould adjustment gear wheel with hydraulic type has stable transmission ,convenient operation and precisely durable .
7 The automatic lubrication system with type of integrated capacity has made every rotating pairs of machine hinge obtain good lubrication .
8 The machine is even symmetric and beautiful in configuration ,firm and strong . The safety door structure with unique design is safe and reliable .

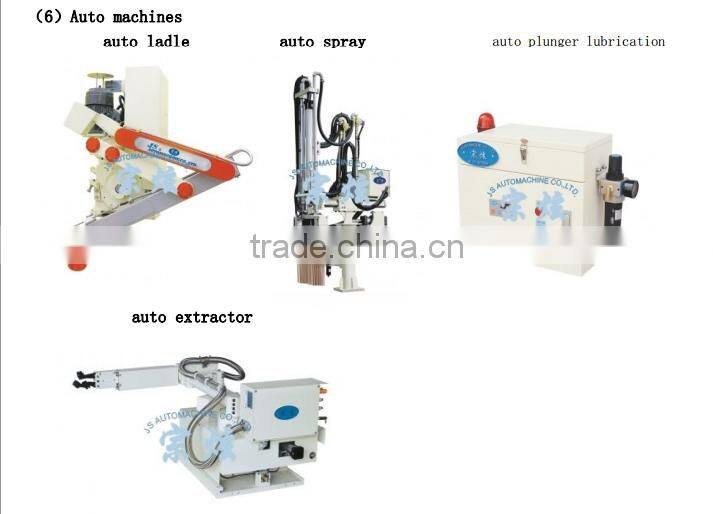

9 Water-cooling and plunger lubrication system are equipped along with the machine ,and to assist the whole machine to achieve reliable and safety production .

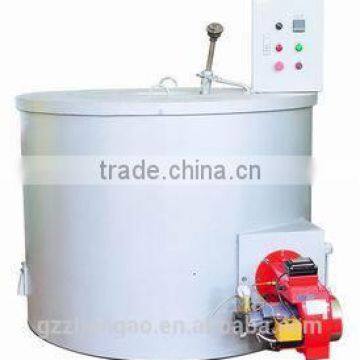

10 Our patent :furnace can save above 30% energy .
3. Specification of 180T high pressure aluminium die casting machine :
| MODEL | ZG-180 | |
| LOCKING FORCE | ton | 180 |
| SPACE BETWEEN TIE | mm | 510×510 |
| MOLD THICKNESS | mm | 200~550 |
| DIE HEIGHT | mm | 85 |
| DIE STROKE | mm | 350 |
| PLATEN SIZE(W×H) | mm | 730×775 |
| INJECTION FORCE | ton | 13.3~21.7 |
| SHOT POSITION | mm | 0 / -100 |
| CASTING STROKE | mm | 350 |
| INJECTION PLUNGER DIAMETER | mm | 50/55/60 |
| CASTING PRESSURE | kg/cm2 | 1486/1041/875 |
| CASTING AREA | cm2 | 121/173/205 |
| MAX CASTING AREA | cm2 | 450 |
| CASTING WEIHGT | kg | 1.3/1.6/1.9 |
| EJECTION FORCE | ton | 9.9 |
| EJECTION STROKE | mm | 85 |
| WORKING PRESSURE | kg/cm2 | 140 |
| MOTOR RATING | KW | 18.5 |
| CAPACITY OF OIL TANK | L | 400 |
| WEIGHT OF MACHINE | ton | 7 |
| MACHINE SIZE | mm | L:5390 |
| W:1186 | ||
| H:2364 | ||

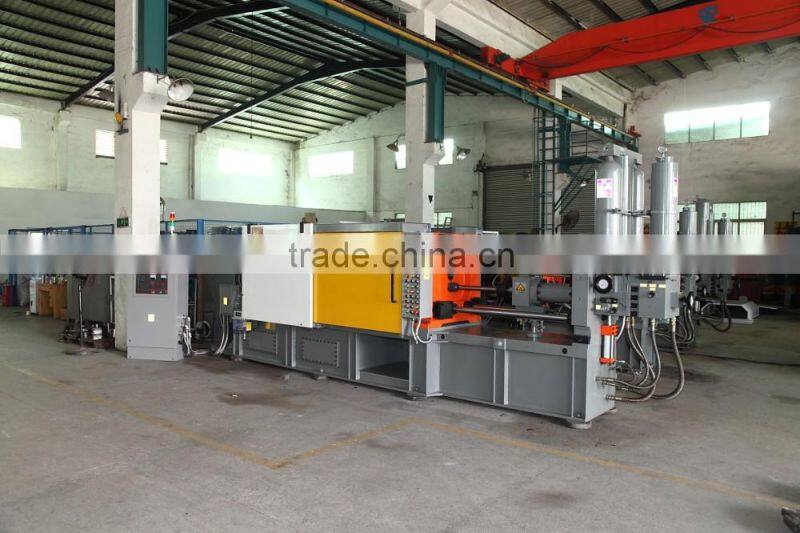

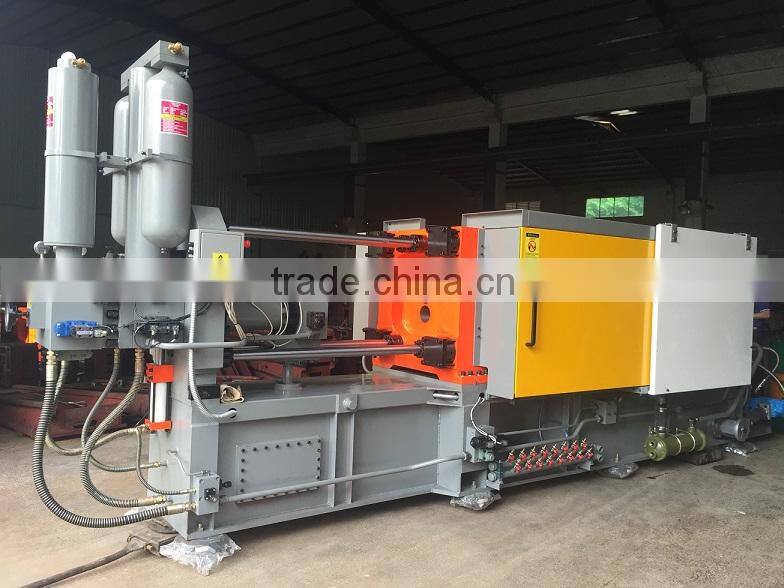

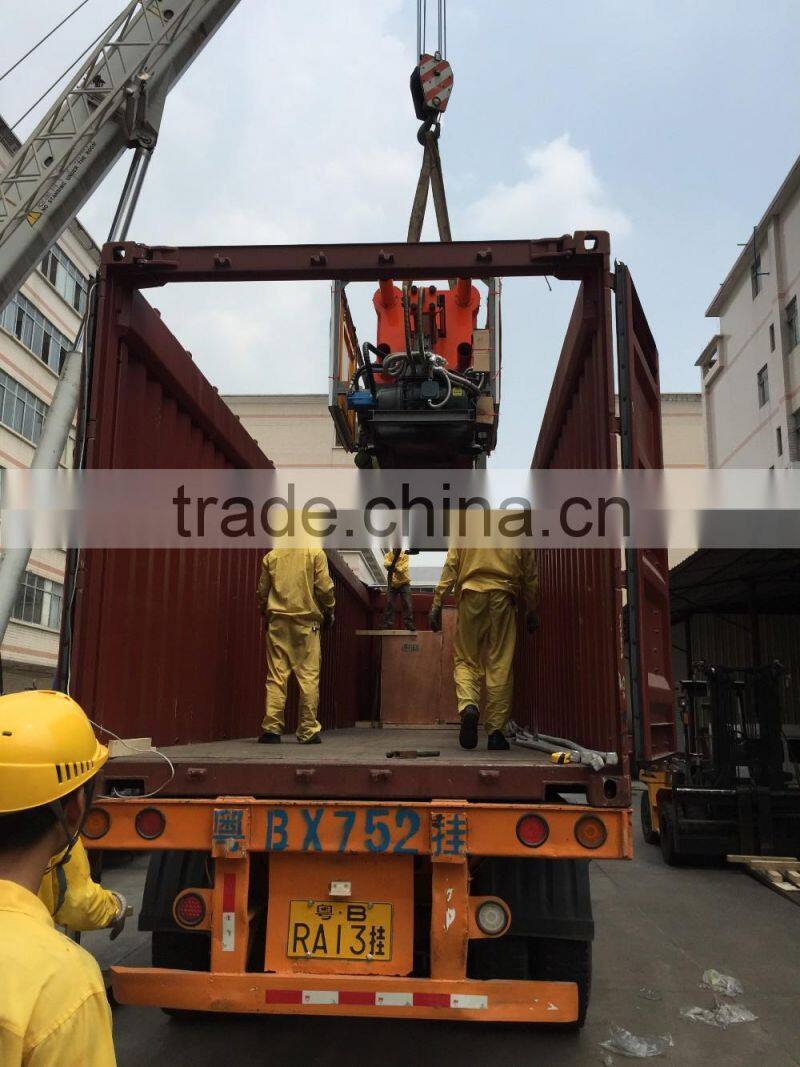

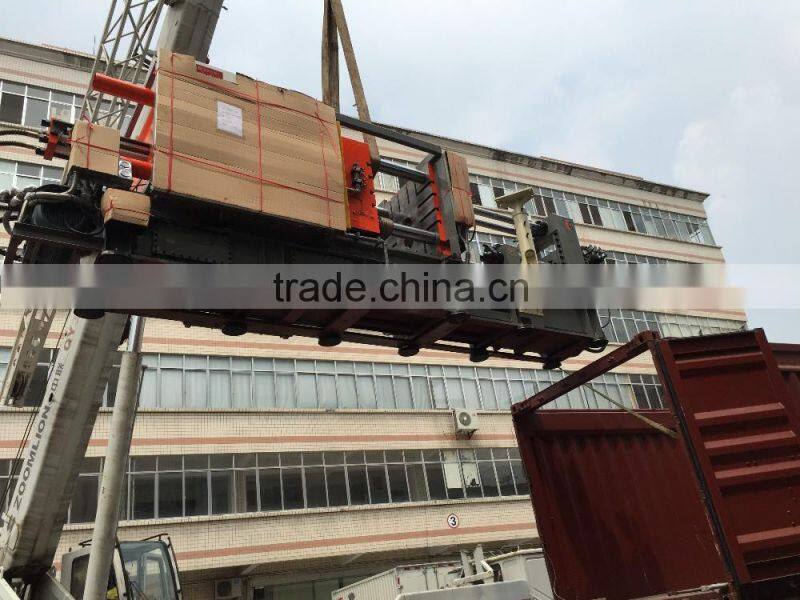

4. Machine in factory and delivery
