PUL-8011(CAT6)

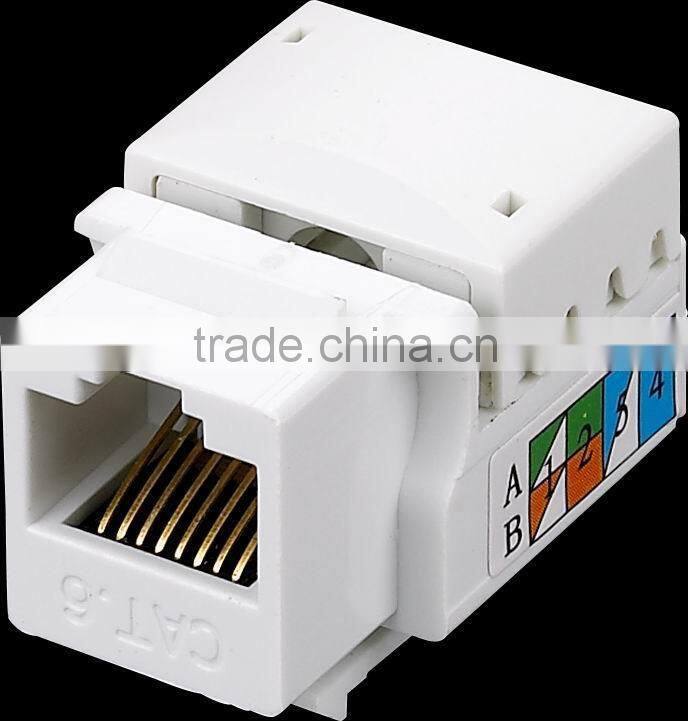

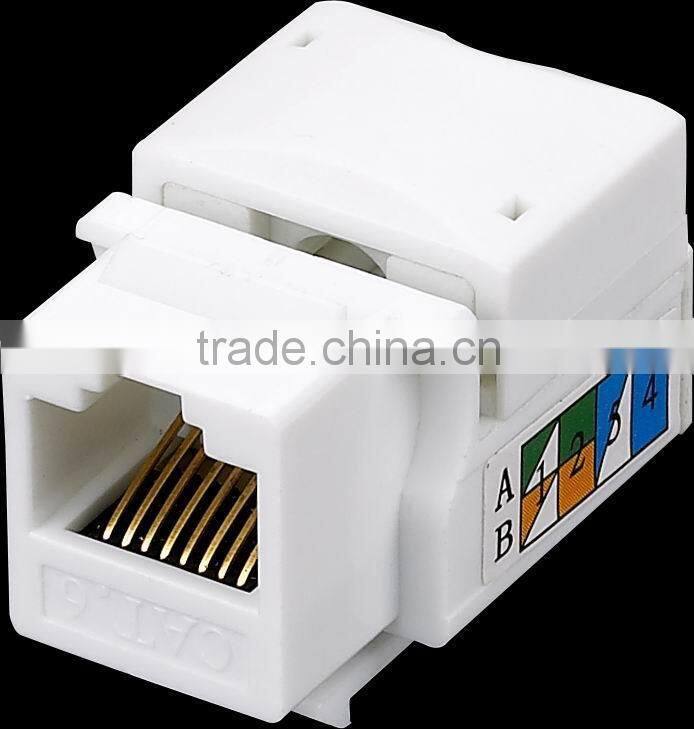

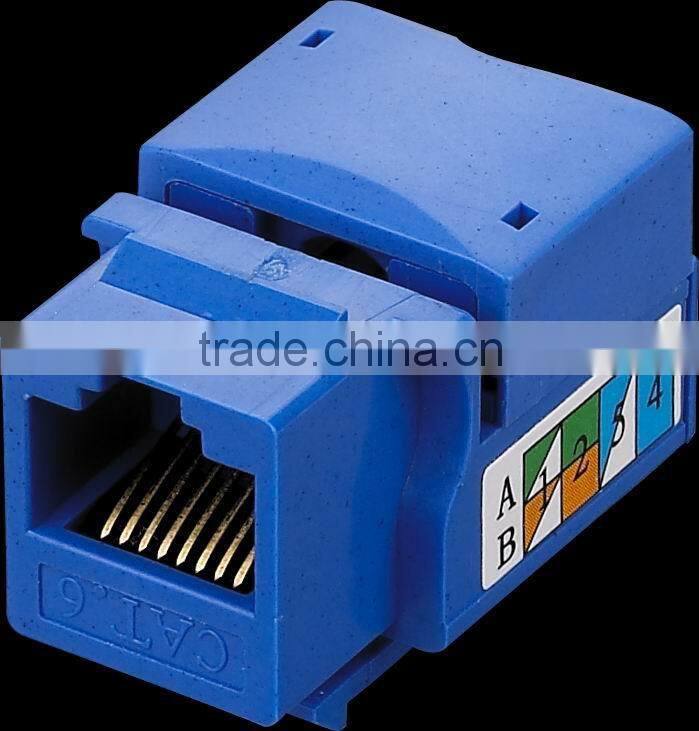

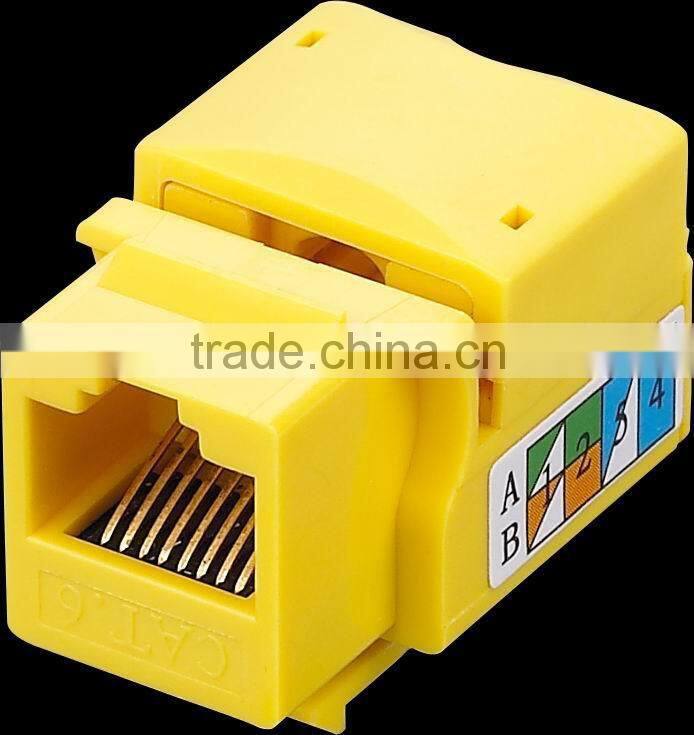

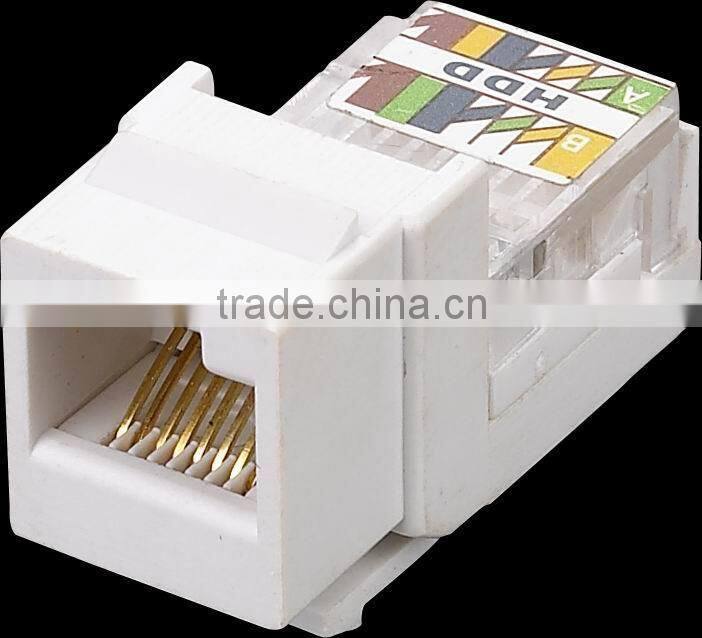

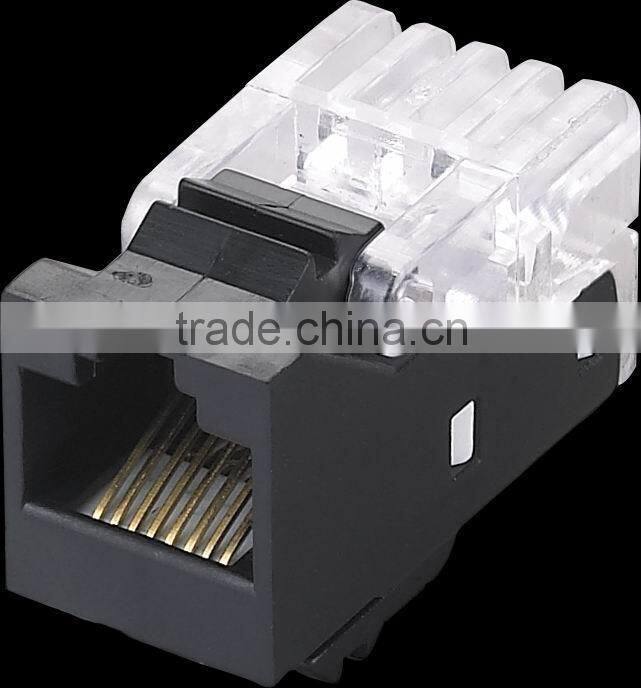

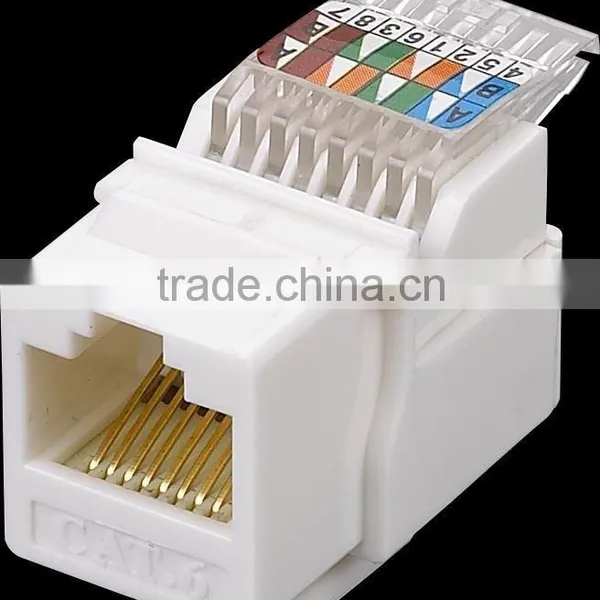

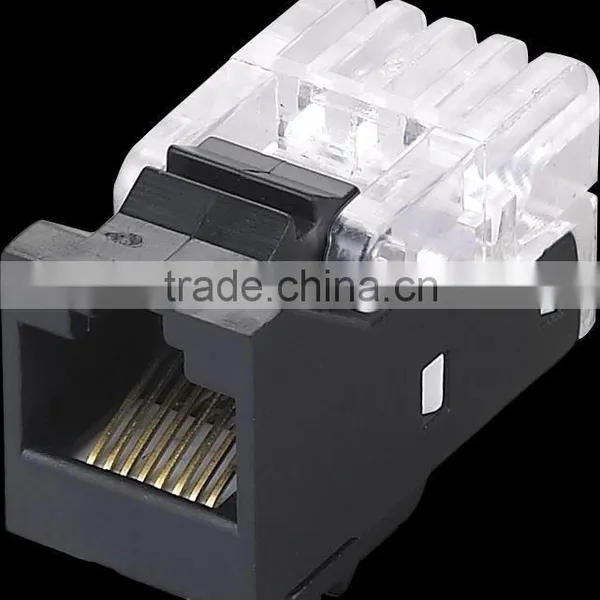

1. Keystone Jack, Cat6 Class E, UTP Type, 180 punching direction, fit for connecting application of communication ports in working area
2. A compact & ingenious designing, with the punching sequence direction marks on the sides of keystone jack which can provides a correct and quick guide for punching and connecting operation. And the fastener hats will make sure the cable can be fixed reliably in the IDC clips.
3. According to the standard of the ISO/ IEC 11801, 2002 CLASS & ANSI/ TIA/ EIA568-B. 2-1 CAT6, T568A punching sequenceand T568B punching sequence are both compatible.
4. Connection Type: PFCC connector for RJ45 patch cord and IDC for 4-pair Cat6 cables.
5. Fitting for the Cat6 general cable distribution system. Compatible for Cat5 and Cat6 systems.
Technique Characteristics:
1. Material of plastic parts: PC UL94V-0
2. Material of the FCC connectors
8Pin: Phosphor Bronze with golden plated 6U, 15U, 30U, 50U at option. Inserting duration: 750 times
3. Material of the IDC clips: Tinned phosphor bronze pins. Fitting for 22AWG/ 23AWG/ 24AWG cables.
Punching duration: 250 times.
