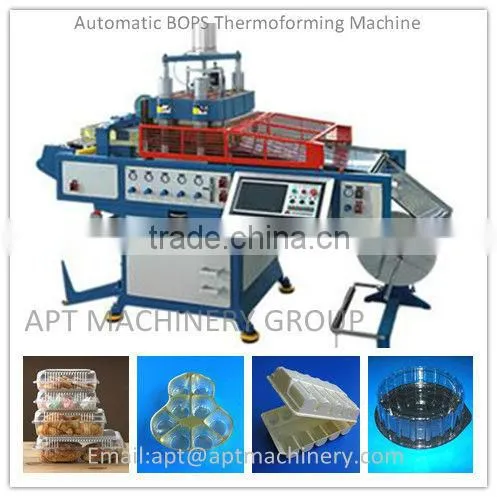

Help CenterJHS-510/580 High Speed OPS/PET Thermoforming Machine With Automatic Stacking
Related Products
-
PET/OPS/HIPS Food Tray/Clamshell/Egg Tray Thermoforming Machine in Wenzhou CityUS$ 20,000 - 35,000MOQ: 1 Set -
Automatic Clamshells Packages Thermoforming Machine With Forming-Vent Hole Punching-Cutting-Stacking UnitNegotiableMOQ: 1 Set
-
Four Station Plastic Thermoforming Machine With Forming-Vent Hole Punching-Cutting-Stacking UnitNegotiableMOQ: 1 Set
-
APT-540/760 Automatic Plastic Vacuum Pressure Thermoforming Machinery With AutostackerUS$ 10,000 - 200,000MOQ: 1 Set
-
Four Station Thermoforming MachineNegotiableMOQ: 1 Set
I. Usage:
It is suitable to form BOPS(OPS), HIPS, PS, PVC, PET and other plastic sheeet roll, which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, injection trays, oral liquids trays, etc.
Description: Automatic Plastic Air-Pressure Thermoforming Machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by a micro PLC, which can be operated in man-interface. It combines the material sending, heating, forming and cutting into one process. It has three operation models."manual","semi-automatic"and "automatic".
II. Features and Benefits:
1. In-mould cutting ensuring consistent and accurate trim
2. Oversized tie bars
3. Low energy consumption
4. Double toggle system
5. Multi-zone heating
6. Minimum floor space requirements
7. Low air consumption
8. Electric pre-heater
9. Robotic Stacking equipment available
III. Main Technical Parameter:
Model |
JHS-510/580 |
JHS-540/760 |
Max. Forming Area |
510×580mm |
540×760mm |
Depth of Draw |
≤120mm |
|
Sheet Thickness |
0.15-1mm |
|
Max. Sheet Roll Dia. |
710mm |
|
Max. Knife Length |
5500mm |
7000mm |
Used Sheet |
BOPS,HIPS,PS,PVC,PET and etc. |
|
Running Speed |
10-25 (Mould/Min) |
|
Power Consumption |
5.5 Kilowatts/hr (Approximate) |
7 Kilowatts/hr (Approximate) |
Air Consumption |
1.2 m3/min |
1.6 m3/min |
Water Consumption |
0.01 m3/min(15-20°C) |
0.015 m3/min |
Power Supply |
380V,50Hz, (Tri-phase, Four wire) |
|
Overall Dimension |
2.75×1.41×2.15(m) |
2.75×1.7×2.5×(m) |
Weight |
2.5T |
3.0T |

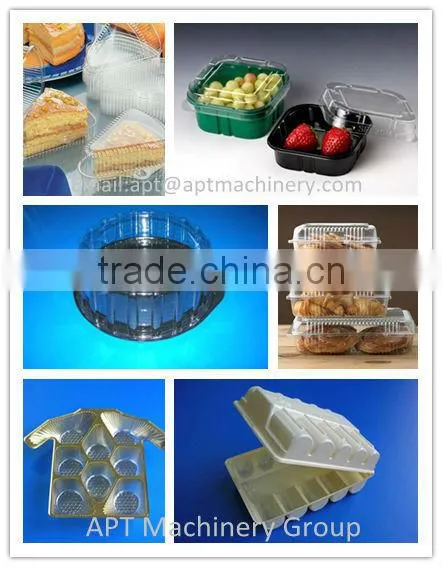

IV. Samples:
V. Auxiliary Machines For BOPS Thermoforming Machine:
1- 3HP Air Cooling Chiller: 1 Set
2- 3m³ Air Compressor: 1 Set
