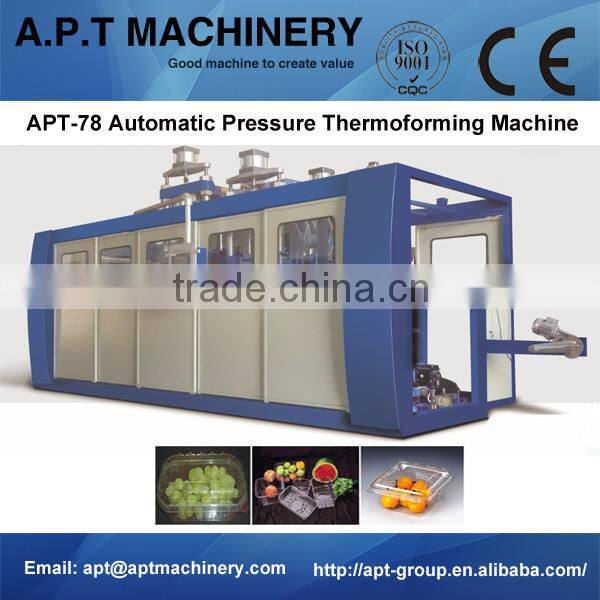

Automatic Thermoforming Machine With Forming-Cutting-Stacking
Usage:
APT Series Automatic Pressure Vacuum Thermoforming Machine with Forming-Cutting-Stacking inline is mainly used for making different kind of plastic packages for food packing or industry packing, such as, box, trays, dishes, plates, bowls, lids, blister packagers and etc from PP/PS/EPS/PET/PVC and Biodegradable thermoformed plastic sheet foil.
I. Main Features:
1- Positive forming and Negative Forming
2- PLC and Touch Screen
3- Fully automatic sheet feeding-forming-hole punching-cutting inline
II. Main Technical Parameter:
Max Forming Area |
760x540mm |
Max Depth of Draw under sheet |
125 mm |
Max Depth of Draw above sheet |
50mm |
Suitable material |
PET, PP, PS, PVC,biodegradable |
Sheet Width |
500- 800 mm |
Material Thickness Range |
0.15-2.0mm |
Max. Sheet Roll Dia. |
1200 |
Cycles per Minute(dry run) |
15-35cycles/min |
Power Supply |
3-N AC380V±15V |
Heating Power Capacity |
80 KW |
Air Pressure |
0.7Mpa |
Air Consumption |
3000 Liters/min |
Cooling Water Consumption |
15 Liters/min 15° - 20°C |
Approx. Machine Dimension |
8.0*2.3*2.6(L*W*H) |

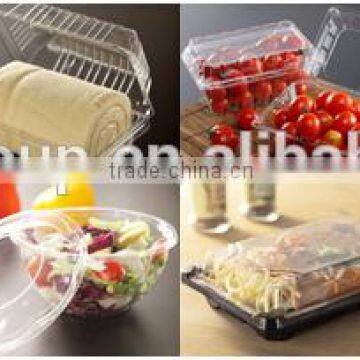

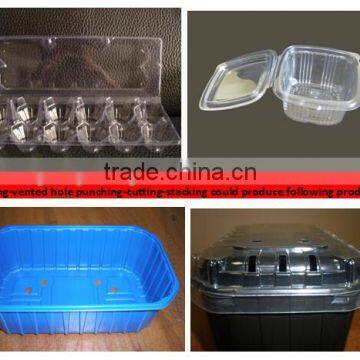

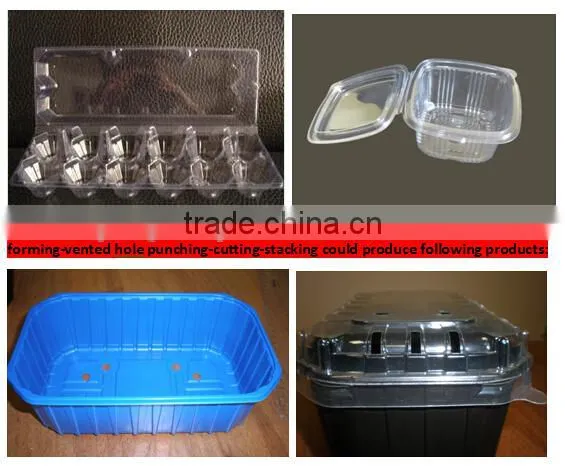

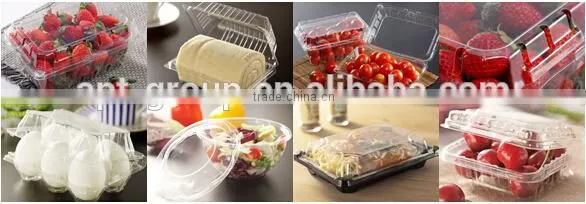

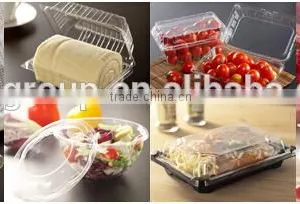

III. Samples:
