Usage:

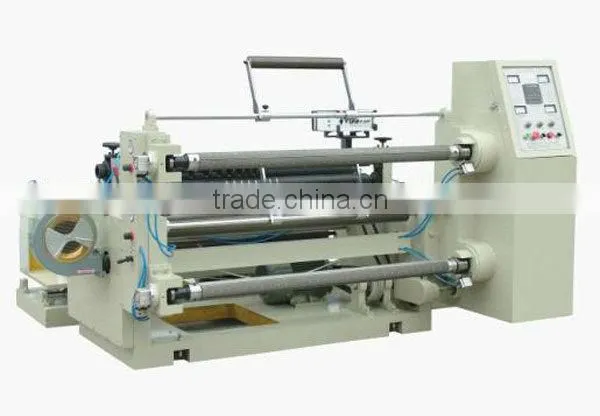

This machine is suitable for slitting and rewinding different kind of sheet rolls from big rolls into small rolls, such as BOPP,PET,CPP,PVC,PET, Aluminum foil and paper rolls.
Performance and Features:
1. This machine is a kind of vertical slitting & rewinding machine
2. Independent master control panel, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material.
4. Equipped with magnetic powder brake for unwinding tension control
5. Magnetic clutch control for rewinding tension control
6. It can be equipped with rim charge conveying or rewinding device (which can be selected on order).
7. Automatic meter counting device.
Main Technical Parameters:
Model |
APT-W1300 |
Max.Width of Mother Roll |
1300m |
Max.Diameter of Mother Roll |
600mm |
Width of Final Roll |
30--1200mm |
Slitting and Rewinding Speed |
5--160m/min |
Tolerance of EPC |
±0.5mm |
Total Power |
3.7Kw |
Weight of Machine |
1800kg |
Overall Dimension |
2600×1470×1400mm |
