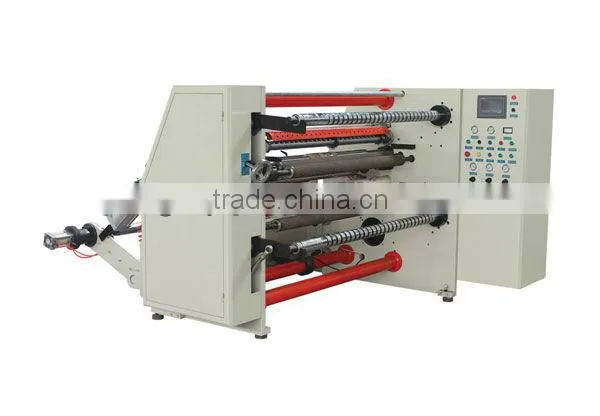

Help CenterAPT-A1300 High Speed Slitting and Rewinding Machine
Related Products
-
Slitting and Rewinding Machine for Paper RollUS$ 10,000 - 15,000MOQ: 1 Set -
APTY-1000 4-Color Flexographic Printing MachineUS$ 30,000 - 50,000MOQ: 1 Set
-
APT-850B Paper Cup Flexo Printing MachineUS$ 20,000 - 30,000MOQ: 1 Set
-
APT-W900 Fax Paper Roll Slitting and Rewinding MachineUS$ 10,000 - 15,000MOQ: 1 Set
-
Fax Paper Roll Slitting and Rewinding MachineUS$ 10,000 - 15,000MOQ: 1 Set
Features:
1.The complete machine is equipped with imported PLC, and with a touch screen and man-machine interface in operation.
2.It has the functions of buffering when machine start work, can count meters and stop automatically.
3.Adopt full automatic tension controller and powder magnetic brake for unwinding which can keep tension of unwinding invariable
4.Using taper tension controlling for frequency converter of rewinding .
5.Adopt vector frequency converter motor for traction transmission, which can be controlled with invariable line speed
6.Top air style shaftless fixing and liquid pressure lifting structure are adopted for raw material loading and discharging , to lighten work force.
7..Adopt two manner of vertical cutter and round cutter for slitting
8.Adopt synchronous motor, high precision ball bearing screw motor and Shanghai made magic eye for unwinding web guiding which can move 120mm, auto web guiding make slitting more accurate and dapper.
9.Equipped with side waste scrap air-blowing sending air-blowing sending
Main Technical Parameters:
Roller width |
1300mm |
Unwinding diameter |
1000mm |
Rewinding diameter |
600mm |
Slitting width |
50-1300mm |
Slitting speed |
240m/min |
Slitting accuracy |
+0.2mm |
Total power |
10.5KW |
Overall dimensions |
2500*2150*1570mm |
Machine weight |
3000KG |
