Model |
UNIT |
KR-LF5A |
Controll method |
P.I.D |
|
Refrigerating Capacity |
kw |
12.9 |
Kcal/h |
11094 |
|
Compressor |
Input Power(kw) |
4.5 |
Rated Power(Hp) |
5 |
|
Evaporator |
Type |
water tank with coil |
Pipe Diameter(inch) |
1" |
|
Refrigerant |
Type |
R410a/R407c/R134a/R22 |
Filling Quantity(kg) |
2 |
|
Cooling Flow(m³/h) |
2.22 |
|
Air Cooled Condenser |
Type |
Fined copper tube+low noise rotor fan |
Fan power(w) |
135*2 |
|
Water tank capacity(L) |
60 |
|
Pump |
Power(Hp) |
0.5 |
Distance (m) |
23 |
|
Flow(L/min) |
100 |
|
Safety Protector |
high and low pressure protection, overload protection,over temperature protection ,phase sequence protection,etc. |
|
Package Dimension(L*W*H,mm) |
1280*630*1118 |
|
Voltage |
380V/50Hz/3Phase |
|
Feature:

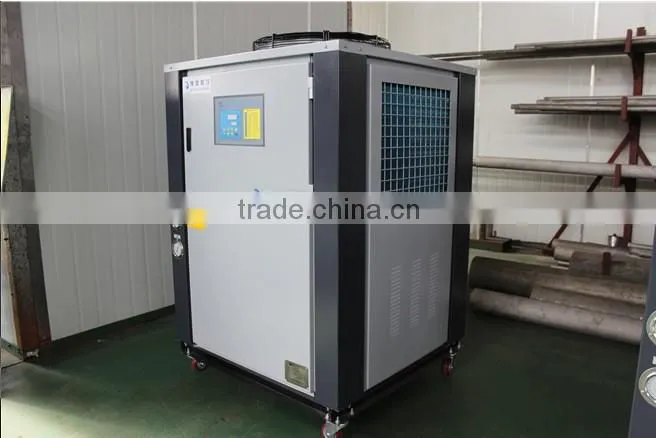

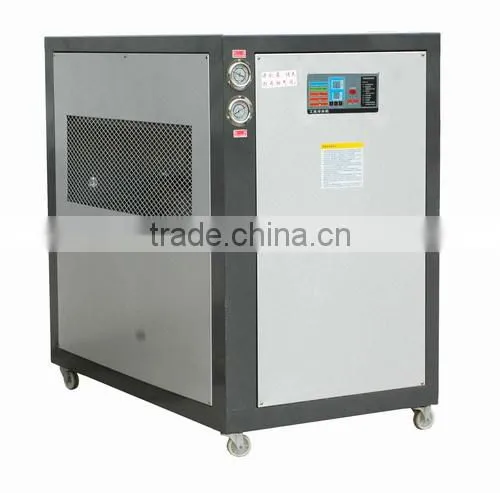

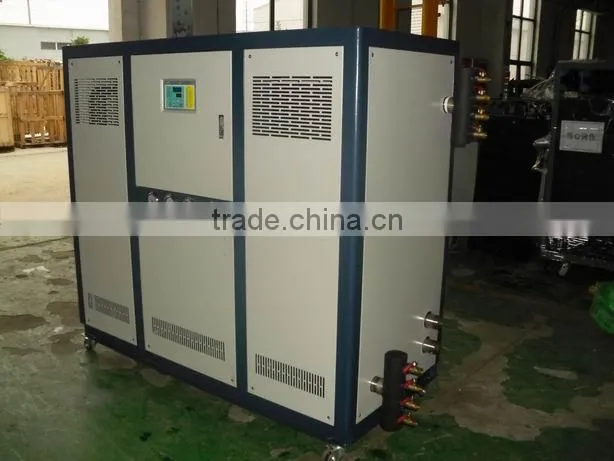

1he Water Chiller is to provide a cooling process for better industrial production. In plastic molding industry,it improves quality of molded products and shorten period of injection molding cycles.
1. famous brands, high efficient shell condensers and evaporators*
-- excellent cooling, quiet with low electric consumption.
2. PID Microprocessor control--easy to operate;
3. Special open type reservoir tank with stainless steel--easy to clean and maintain;
4. Well designed and reasonable Pipelines—ensures power supply and saves energy;
5. Precise electronic thermostatic controller--accurately maintains temperature range from 30C- 50C;
6. Current-overload protector, high-and-low pressure switches, electronic time delayer, fault display system--Safe and durable;
7. Liquid crystal display showing temperatures of outlet and inlet chill water--provides visualized and direct setting;
8. Single, double or quadruple compressors combination available--economic and efficient;
9. Industrially designed--elegant and economic with friendly connections between human & machine.
1. Q: How about Haisi?
R: Nanjing Haisi Extrusion Extrusion Equipment Co., Ltd. is a High-Tech company. Our firm is composed of a strong team which has substantial experience in R&D, manufacture, technique and service, and has specialized in extruder industry for ten years, leading screw barrel manufacturer in China.
2. Q: What's Haisi capacity?
R: Our company is in strict accordance with CE and ISO9001 quality certification system. there are over 200 models of extruders and spare parts.
3. Q: What's the delivery time?
R: For regular size, we have finished stock and semi-finished stock, 2 weeks max are enough for customized, normally 3~4 weeks.
4. Q: Where is Haisi factory and how to reach there?
R: At Lishui, Nanjing, Jiangsu Province. If you want to visit us, we can pick you up in the airpor or train station.
5. Q: How to contact with us?
R: Plz reply to me directly if you have any question.
