Help Center2016 NEW Universal Single/Twin/Quad Full HD the Best ku Band Universal Lnb
Related Products
Gecen Technology Co., Ltd.
Introducing the new generation of LNBs, developed to meet the very highest standards demanded by Broadcasters and consumers around the world, for long-term reliable digital reception.
• Superior Phase Noise performance, DVB-S2 (HDTV) compliant
• Low Noise Figure
• Higher Conversion Gain
• Excellent Cross Polarization Isolation
• Ultimate Reliability
• High quality weather protection

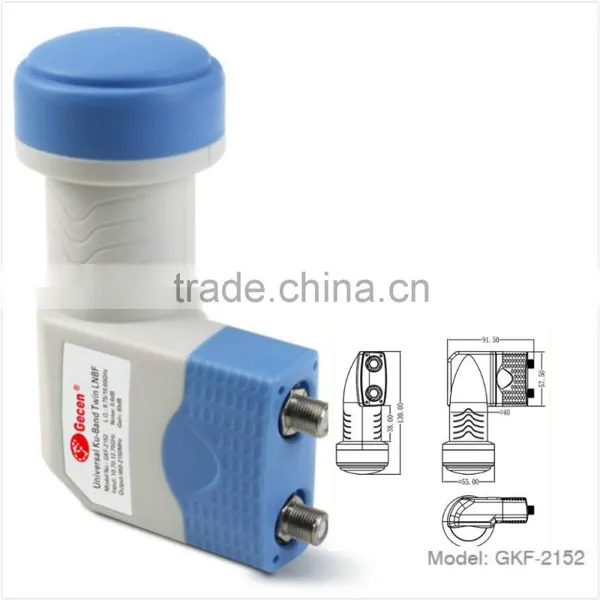

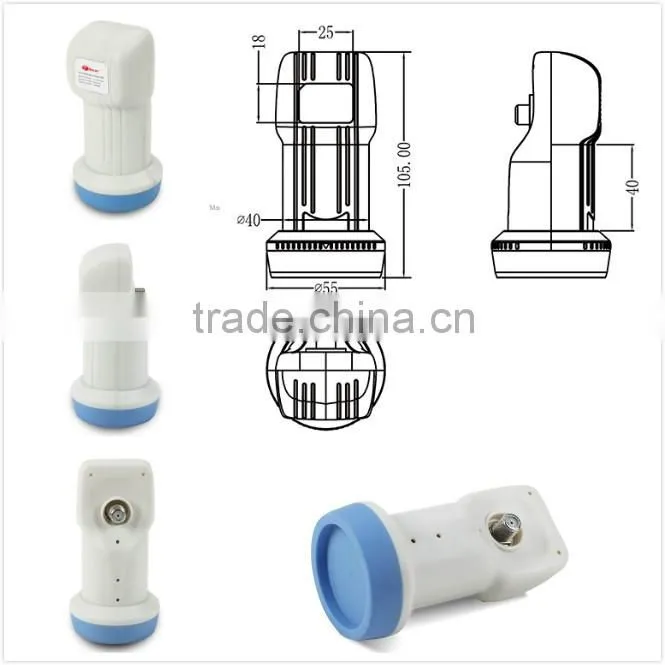

- Connection and Size Picture
- Specification
-
Item Specification Item Specification Input Frequency Range Low Band:10.70~11.70GHz Gain Flatness ±0.5dB/26MHz High Band:11.70~12.75GHz Cross POL. Isolation 25dB(Typ.) Output Frequency Range Low Band:950~1950MHz Image Rejection 40dB(Min.) High Band:1100~2150MHz Output VSWR 2.0:1(Max.) L.O. Frequency Low Band:9.75GHz P1dB 0dBm (Min.) High Band:10.60GHz DC Current Consumption 80mA(Typ.) L.O. Frequency Stability ±1.0MHz (Max.)@+25℃ Low/High Band Switching Low Band:0Hz ±2.0 MHz (Max.)@-30℃~+70℃ High Band:22KHz±4KHz L.O. Phase Noise -60dBc/Hz@1KHz POL. Switching Voltage 10.5~14.0V @Vertical -80dBc/Hz@10KHz 16.0~20.0V @Horizontal -100dBc/Hz@100KHz Relative Humidity 0%~95% Conversion Gain 60dB(Typ.) Operating Temperature -30℃~+70℃ Noise Figure 0.6dB(Typ.) Connector Type 75Ω Female Connector
| Packaging Details: | 1pcs/giftbox;100pcs/ctn |
| Delivery Detail: | 20days after remit your deposit |
WARRANTY: ONE YEAR WARRANTY
Gecen Technology Co., Ltd.
Located in Zhuhai National Hi-Tech Industry Development Zone, we, Zhuhai Gecen Technology Co., Ltd, have been persisting in the development strategy of High Starting Point, High Technology, High Quality and High Efficient since founded. At present, we have our own leading core technology and the capability of sustainable research and development. Our turnover is increasing geometrically in recent years due to mature technology, very high quality products and strong market response ability. Moreover, our products are taking a large percentage in Middle East, Southeast Asia and Americas market rapidly which makes Gecen become one of the outstanding manufacturers in this field among the world. Nowadays Gecen this brand has become a well-known brand in SATV and CATV industry.
Digital set top box, LNB, TV signal finder meter and the relevant accessories are our major products. Meanwhile we embark on prospective researches such as DTMB, AVS+ and TV dongle reserve projects according to the latest international and domestic technology standard and the development trend in order to stay in the leading position in future years

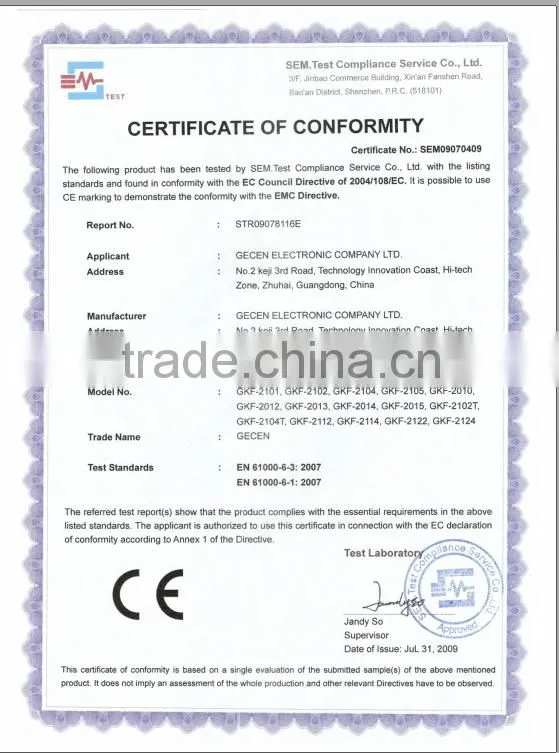

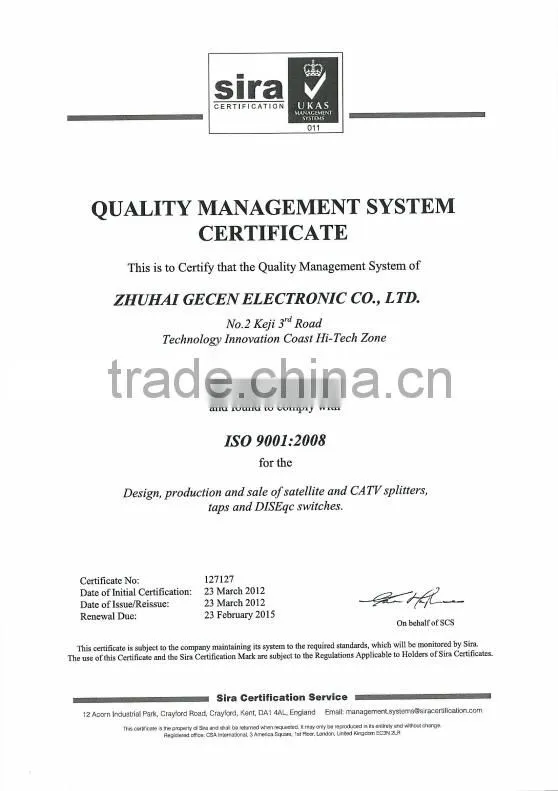

We regards product technology and quality as corporate life: quality management system ISO9001:2008 certified company, CE and GMC certified products. And our products are with new model patent, appearance patent, invention patent and software copyright. Meanwhile we have built up technology cooperation relationship with some scientific institutions and colleges.
Company inside is managed as to the international convention that offering satisfactory products and services to customers. The motive power of Gecen development is pursuing customer satisfaction. We insist on customer-oriented philosophy which bringing long term business value to customers continually. Our flawless products and the large global market occupation that makes Gecen will be listed on the NEEQ and open a new chapter of evolution. Gecen will adhere to the corporate concept of being high capability, high efficient and forging ahead with determination and innovating constantly. Looking ahead the future, we are going to expand the business scale and be strong in product quality in the opportunities of TV communication industry development which brought by technology upgrade and consumption expand; we will deal with customers, staff, shareholders and the society on a win-win basis for the purpose of making Gecen be a top respectable and professional TV communication products manufacturer in the world.
