yellow cleaning super fine hepa filter media

Specifications

1.wet wall evaporative cooling systems and pads
2.Large evaporative area
3.high cooling efficiency

    yellow cleaning super fine pre-efficiency filter media

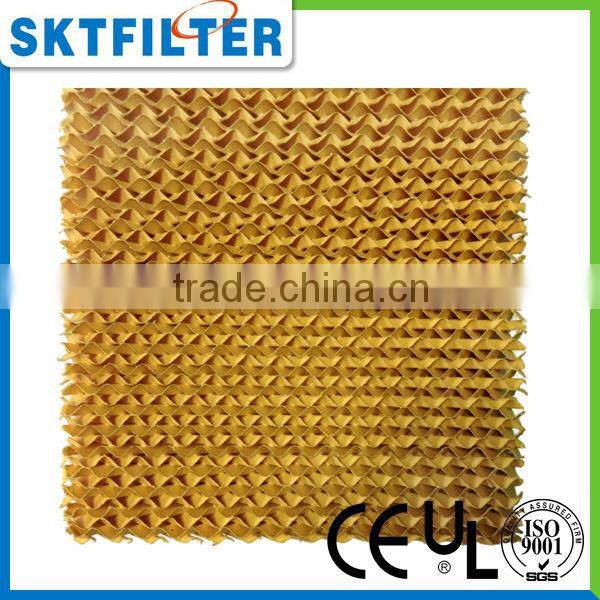

Cellulose Corrugated Paper Cooling Media for Poultry Farm/Greenhouse



(ZR series wet wall evaporative cooling systems and cooling pads)



1.wet wall evaporative cooling systems and pads
2.Large evaporative area
3.high cooling efficiency



     paper has high intensity structure, corrosive resistance, long service life. Specific stereoscopic structure. It can provide the largest evaporative surface for heating frame can be alternative of aluminum alloy, PVC and galvanized board.



     Cooling is a thin layer of water film on surface of wave-like fiber paper. When outdoor dry and hot air is drawn by fan through the wet cooling pad paper, the water of water film will absorb the heat in air and evaporate, of heat. Thus, the temperature of air going through the wet cooling pad paper is reduced. Through such cool s the amount of oxygen in air, makes indoor air fresher, and improves air quality in working environment.



     Use the new material and the spatial crossing linking technology, high absorbability, high water resistant, anti-mildew and long service life.



1.Large evaporative area, cooling efficiency as high as 80%.



2.The products include surface active agents, absorb water naturally, fast speed of pervasion, lasting effectiveness. A drop of water can diffuse in 4-5 seconds. Height of absorb water; 60-70mm/5seconds,200mm/1.5hours, can meet international standard.



3.products do not include chemicals which are allergic to the skin .It is nontoxic, harmless, safe, energy saving, environment-friendly ,practical and economic.



4.When moisture evaporates, it will not only lower temperature naturally, but also produce many negative oxygen ions, which will effectively increase the amount of oxygen in the air.



5.Even color, good absorption and stiffness, quick diffusion, and long service life.



6.Low consumption of energy, the consumption of electricity is only one tenth of traditional air-conditioning.



7.You may choose galvanized sheet, aluminum alloy or fiberglass for outline frame.



H: high W: width D: depth H:wave height   α:wave angle β:wave angle
	7090	7060	5090
H(mm)	1500/1800/2000and so on	1500/1800/2000and so on	1500/1800/2000and so on
W(mm)	600	600	600
D(mm)	100/150	100/150	100/150
h(mm)	7	7	5
α(mm)	45	15	45
β(mm)	45	45	45







    Our company is one of the best international enterprises, specialized in producing the relevant products in the field of filtration and purification in China. With the advanced technique, continuously innovative and powerful science and technique research, our products have been sold to various countries and regions, such as Japan, Korea, Australia, the United States and Southeast Asia.

General Terms Of Business

1.Price Terms:

EX-Works, FOB,CNF CIF or DDU is available and up to you.

2.Sample terms:

We can supply 1-2 small samples for free but express cost is covered by your side.

3.Payment terms:

30% deposit upon getting the order, balance against the B/L copy.
