6 pillars outdoor aluminum truss Roof and Stage with sond wings

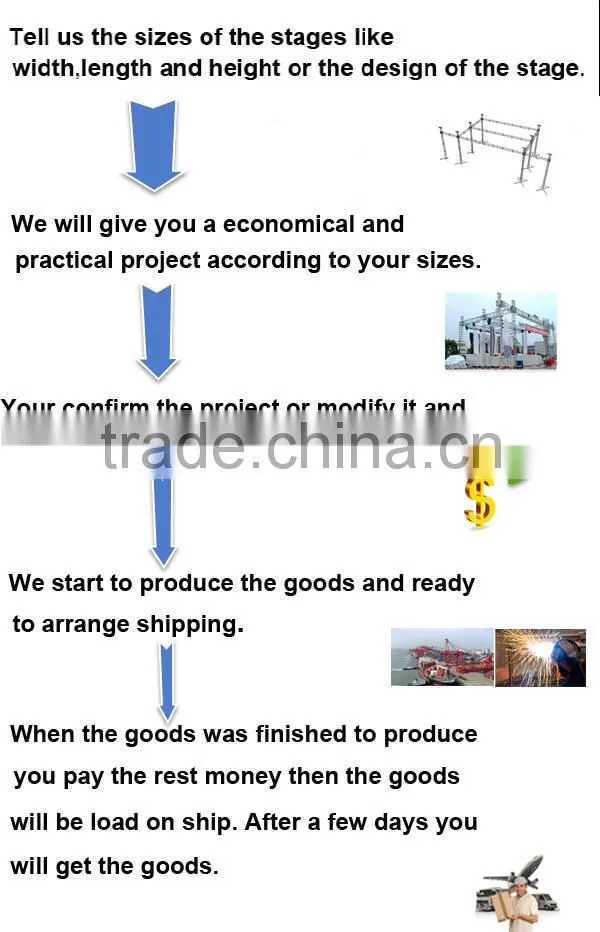

If you like this Roof and Stage please tell us the width depth and height sizes, so that we can give you a detail quotation. thank you.

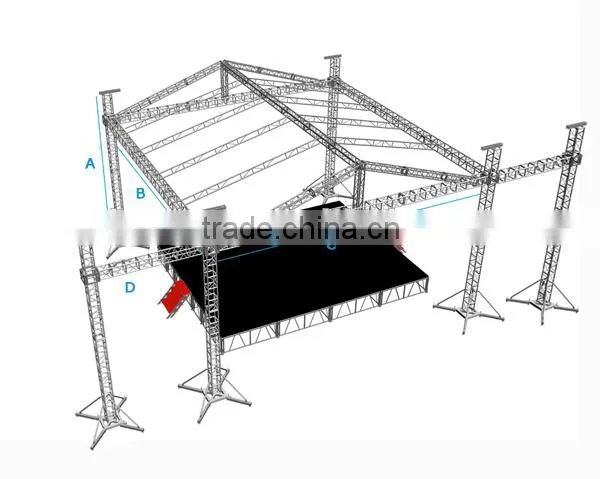

Aluminum roof and stage detail
| Dimention | 12x10meter /40x30ft or your sizes |
| Sound wings | 2m/ 6.56ft |
| Height | 5-9 meter 16-30ft |
| Beam truss | heavy duty 400x400 truss /15.7x15.7in |
| pillar truss | 300x300mm/ 11.8x11.8in |
| UDL loading | 4000kg |
| Sound wing loading | 2000kg each side |
| Roof cover | PVC fabric waterproof 650g/m2 |
| volume | about 27m3 |
| Weight | about 4000kg |
size |
Main tube |
Horizontal tube |
Brace tube |
Material |
connection |
200*200mm |
30*2mm |
12*2mm |
12*2mm |
6061T6 |
Screw/bolt |
220*220mm |
30*2mm |
12*2mm |
12*2mm |
6061T6 |
Screw/bolt |
250*250mm |
50*3mm |
20*20mm |
20*2mm |
6061T6/6082T6 |
Screw/spigot |
300*300mm |
50*3mm |
25*2mm |
20*2mm |
6061T6/6082T6 |
Screw/spigot |
350*350mm |
50*3mm |
25*20mm |
20*2mm |
6061T6/6082T6 |
Screw/spigot |
300*400mm |
50*3mm |
30*2mm |
25*2mm |
6061T6/6082T6 |
Screw/spigot |
400*400mm |
50*3mm |
30*2mm |
25*2mm |
6061T6/6082T6 |
Screw/spigot |
450*450mm |
50*3mm |
50*2mm |
25*2mm |
6061T6/6082T6 |
Screw/spigot |
500*500mm |
50*3mm |
50*2mm |
25*2mm |
6061T6/6082T6 |
Screw/spigot |
500*600mm |
50*3mm |
50*2mm |
30*2mm |
6061T6/6082T6 |
Screw/spigot |
520*760mm |
50*3mm |
50*2mm |
30*2mm |
6061T6/6082T6 |
Screw/spigot |
600*760mm |
50*3mm |
50*2mm |
30*2mm |
6061T6/6082T6 |
Screw/spigot |
Customer size |
|
|
|
|
|

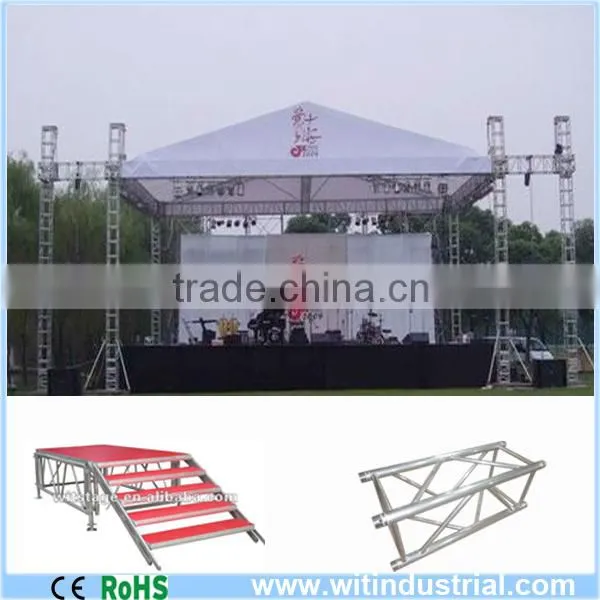

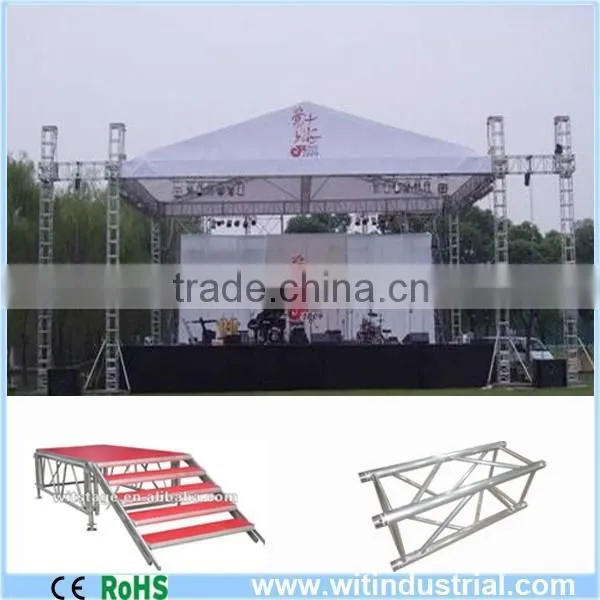

Roof and Stage gallary application

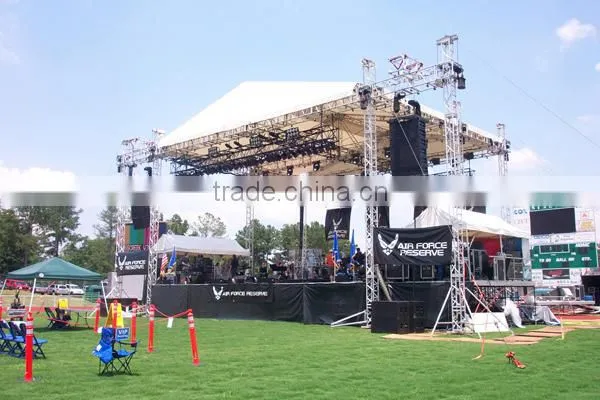

Peaked roof

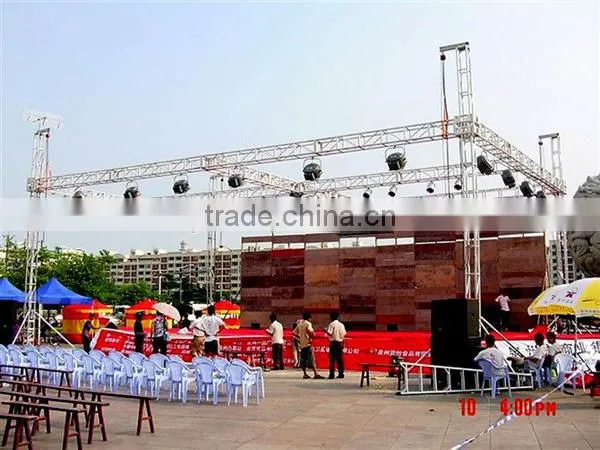

Flat roof

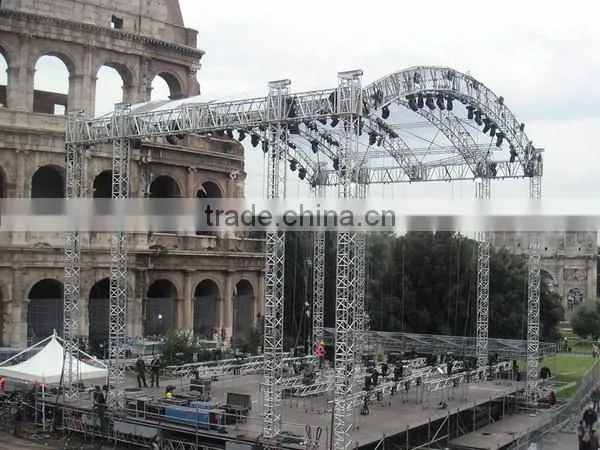

Arch roof

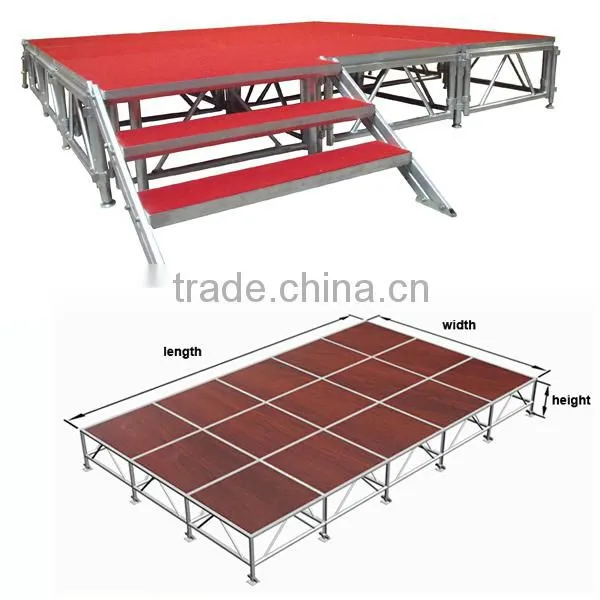

Stage specification
1.Material: aluminum alloy 6061
2.Height : 0.6-0.8-1m or OEM*(adjustable)
3.Dimension: 1.22*2.44m/4'*8' (1.22x1.22m / 4'x4')or OEM
4.Plywood: thickness 18mm. Color : red , black , dull red , brown
antislip and waterproof
