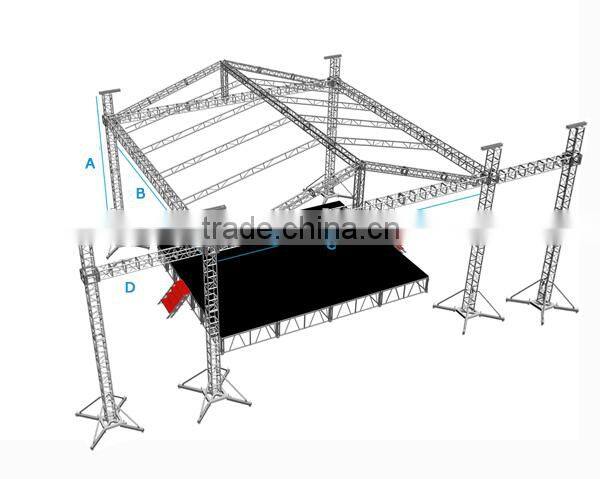

6 pillars outdoor aluminum stage with shade roof
If you like this stage with shade roof please tell us the width depth and height sizes, so that we can give you a detail quotation. thank you.
Aluminum stage with shade roof detail
| Dimention | 12x10meter /40x30ft or your sizes |
| Sound wings | 2m/ 6.56ft |
| Height | 5-9 meter 16-30ft |
| Beam truss | heavy duty 400x400 truss /15.7x15.7in |
| pillar truss | 300x300mm/ 11.8x11.8in |
| UDL loading | 4000kg |
| Sound wing loading | 2000kg each side |
| Roof cover | PVC fabric waterproof 650g/m2 |
| volume | about 27m3 |
| Weight | about 4000kg |
size |
Main tube |
Horizontal tube |
Brace tube |
Material |
connection |
200*200mm |
30*2mm |
12*2mm |
12*2mm |
6061T6 |
Screw/bolt |
220*220mm |
30*2mm |
12*2mm |
12*2mm |
6061T6 |
Screw/bolt |
250*250mm |
50*3mm |
20*20mm |
20*2mm |
6061T6/6082T6 |
Screw/spigot |
300*300mm |
50*3mm |
25*2mm |
20*2mm |
6061T6/6082T6 |
Screw/spigot |
350*350mm |
50*3mm |
25*20mm |
20*2mm |
6061T6/6082T6 |
Screw/spigot |
300*400mm |
50*3mm |
30*2mm |
25*2mm |
6061T6/6082T6 |
Screw/spigot |
400*400mm |
50*3mm |
30*2mm |
25*2mm |
6061T6/6082T6 |
Screw/spigot |
450*450mm |
50*3mm |
50*2mm |
25*2mm |
6061T6/6082T6 |
Screw/spigot |
500*500mm |
50*3mm |
50*2mm |
25*2mm |
6061T6/6082T6 |
Screw/spigot |
500*600mm |
50*3mm |
50*2mm |
30*2mm |
6061T6/6082T6 |
Screw/spigot |
520*760mm |
50*3mm |
50*2mm |
30*2mm |
6061T6/6082T6 |
Screw/spigot |
600*760mm |
50*3mm |
50*2mm |
30*2mm |
6061T6/6082T6 |
Screw/spigot |
Customer size |
|
|
|
|
|

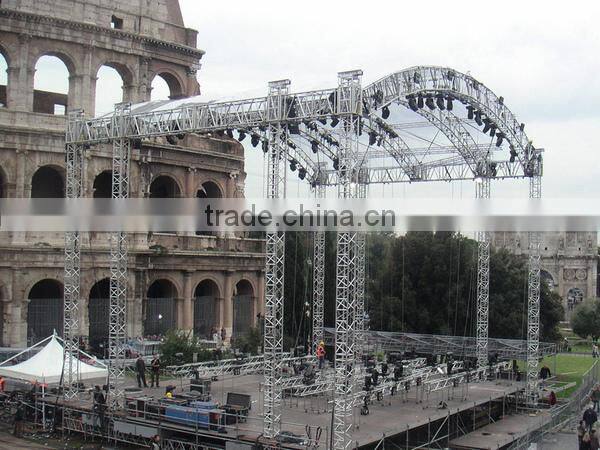

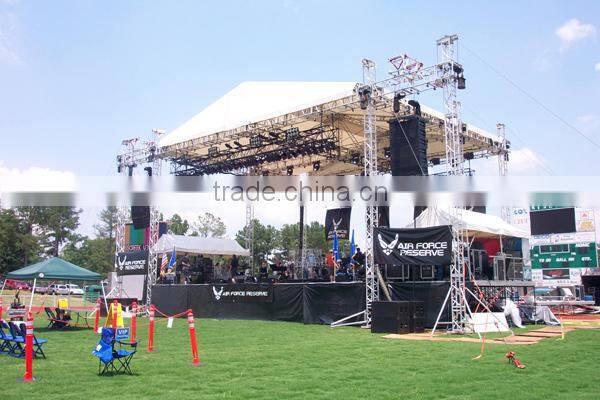

stage with shade roof gallary application
Peaked roof
Flat roof
Arch roof

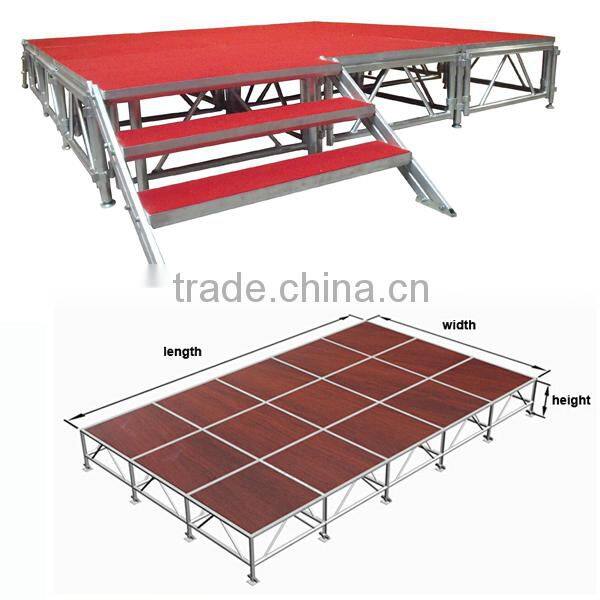

Stage specification
1.Material: aluminum alloy 6061
2.Height : 0.6-0.8-1m or OEM*(adjustable)
3.Dimension: 1.22*2.44m/4'*8' (1.22x1.22m / 4'x4')or OEM
4.Plywood: thickness 18mm. Color : red , black , dull red , brown
antislip and waterproof
Packing and loading
