Help CenterCAT6 UTP Network Cable With 23AWG Copper or CCA Conductor
Related Products
-
Networking Computer 23AWG 4P UTP LAN CableUS$ 25 - 89MOQ: 200 Boxes -
Cat 6 UTP Lan CableUS$ 50 - 60MOQ: 100 Boxes
-
FTP CAT6a High Quality LSOH Network CableUS$ 55 - 65MOQ: 100 Boxes
-
SFTP CAT6 High Quality Network CableUS$ 69 - 69MOQ: 100 Boxes
-
4p UTP Cat5e Outdoor/Indoor Network CableUS$ 25 - 89MOQ: 200 Boxes
Henan billion net Photoelectric Technology Co., Ltd is the leading cable manufacturer in China. Cables have been our business for 2 yeas. We offer cat 7 lan cable so your customers can enjoy ultra-fast networking, Our other products cover more than 100 types of CAT6A, CAT6, CAT5E, RVV ,BV,RG ,Telephone wire, Speaker wire ,Alarm cable and so on ,
We are located at Tanghe, Henan province. eleven production lines in our ISO 9001:2008-certified 20,000 square meters factory help us fill orders for buyers in the Europe,America,Asia,Australia, and other countries. and mort than 200 employees make delivery in 20 days possible.
We turn out up to 50 million meters of cable per year, High quality standards and reliable delivery schedules are both very important to our customers. When standards apply (EIA/TIA, ISO ,ROHS, CE, UL, ETL and so on) all products will be 100%compliant .email us today.

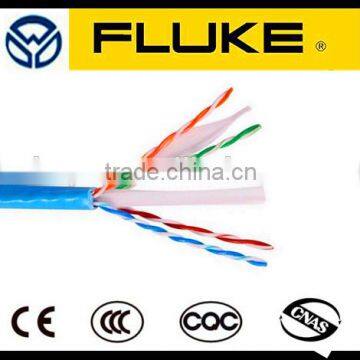

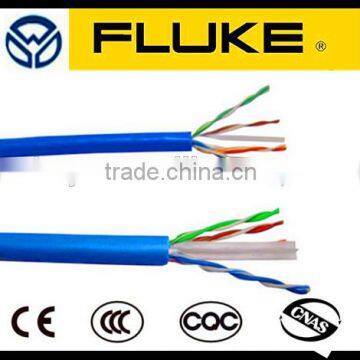

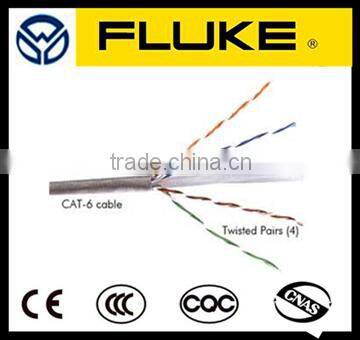

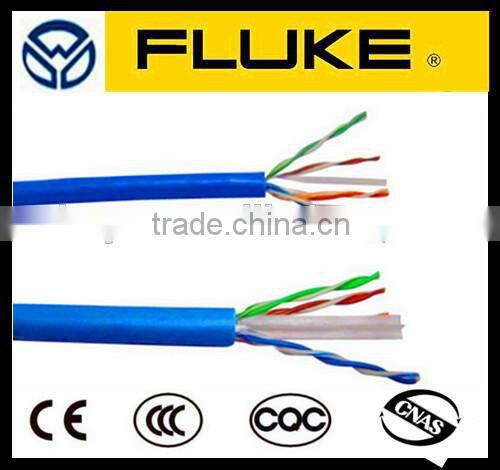

CAT6 UTP Network Cable
Unshielded Copper cable, 24 pairs, category 6, solid, consists of 6 unshielded (UFTP) bunches of 4 pairs each. Bunches are cabled and jacketed with FR-LSZH compound.
Cable is used for indoor installation. The multi-cable structure design is optimal for interconnection of telecommunication cabinets in data-centers and alike. The indoor backbone cable is used for local area networks, high bandwidth digital applications with low BER, high data rates.
*Attribute
| Mode | CAT6 UTP Network Cable | |||
| Conductor Size | 28AWG,26AWG,24AWG,23AWG,22AWG | |||
| Conductor Material | BC/CU/CCA/CCS | |||
| No.of Conductor | 4P | |||
| Insulation Material | PE , HDPE | |||
| Jacket | PVC, ROHS PVC, LSZH PVC | |||
| Shield | Unshielded twisted pairs | |||
| Filler | PE cross | |||
| Indoor/Outdoor | Single Jacket | |||
| Insulation Thickness | 0.2mm | |||
| Unrip rope | Optional | |||
| Jacket Thickness | 0.92-0.95mm | |||
| Stretching Resistance | (max)400N | |||
| Impedance | 100±15Ω at 1~250MHz | |||
| Transmission Velocity | 66% | |||
| Operating Temperature | -40 °C - +70 °C | |||
| Reference Standard | YD/T1019-2001, ANSI/TIA/EIA-568B, ISO/IEC11801 | |||
| PVC Jacket Color | Optional | |||
| Print Words On Cable | As Clients' Request |
|||
CAT6 UTP Network Cable Descriptions:
1) Rated temperature: 60°C, 75°C
2) Bare solid of stranded copper conductor
3) Color coated PE insulation
4) Rip cord (optional)
5) PVC or LSZH jacket
6) Flammability grade: CMX, CM.CMR
7) Pull out box packing available
Twisted Pair Network Cable CAT6 Feature:
1.Fast and reliable connection
2.Twisted pairs with bright color for easy recognition
3.Ripcord and foot-mark for convenient use
4.Smooth jacket for easy pulling in tight space
5.Colors: Light gray, blue, white or as per customer's requirements
Specifications:
Conductor:Copper,CCA,CCS 0.45 to 0.52mm 24AWGor 26AWG etc
Insulator: HDPE/ PE
Jacket: PVC, LSZH PVC
Twisted Pair Network Cable CAT6 Technical characteristics:
Conductor diameter: 24 AWG (0.51mm)
Construction: 0.50CCA30%+0.92PE+5.1PVC
Minimum bend radius: 4 outer cable diameters
Conductor elongation: 14% minimum
Weight per 1000 ft: 10.4 kg (22.8 lbs)
Standard package: 305 m (1000 ft)
Packaging & Shipping:
Factory Shows:
As a professional manufacturer from China,our main and power products are
1.HOW ABOUT OUR QUALITY?
We have our own factory to manufacture the cables and wires,we can control the quality by our self,and we also have a professional quality inspection team,so please rest assured for our quality.
2.HOW ABOUT THE SAMPLE FEE?
Sometimes we can provide a free sample if you are cooperate with us for many time,or if you are sincerely cooperate with us.
3.HOW ABOUT OUR DELIVERY TIME?
Usually,our delivery time is 15-30 days after all the details confirmed.
