Help CenterRoHS 1000Mbps Cat5e FTP Network LAN Cable for Ethernet
Related Products
-
OEM Price Copper Conductor UTP CAT 6 NET Working CableUS$ 25 - 89MOQ: 200 Cartons -
Fast Ethernet Application Best Price 100Mhz Category 5 UTP Lan CableUS$ 25 - 89MOQ: 200 Cartons
-
Popular in India Market 100Mhz Category 5 UTP Network Lan CableUS$ 25 - 89MOQ: 200 Cartons
-
Competitive Factory Price FTP Cat6 Outdoor Cable With MessengerUS$ 25 - 89MOQ: 200 Cartons
-
24AWG Stranded Bare Copper Conductor CAT 5e Lan Network CableUS$ 25 - 89MOQ: 200 Cartons
Henan billion net Photoelectric Technology Co., Ltd is the leading cable manufacturer in China. Cables have been our business for 2 yeas. We offer cat 7 lan cable so your customers can enjoy ultra-fast networking, Our other products cover more than 100 types of CAT6A, CAT6, CAT5E, RVV ,BV,RG ,Telephone wire, Speaker wire ,Alarm cable and so on ,
We are located at Tanghe, Henan province. eleven production lines in our ISO 9001:2008-certified 20,000 square meters factory help us fill orders for buyers in the Europe,America,Asia,Australia, and other countries. and mort than 200 employees make delivery in 20 days possible.
We turn out up to 50 million meters of cable per year, High quality standards and reliable delivery schedules are both very important to our customers. When standards apply (EIA/TIA, ISO ,ROHS, CE, UL, ETL and so on) all products will be 100%compliant .email us today.

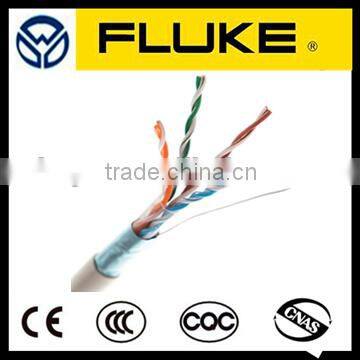

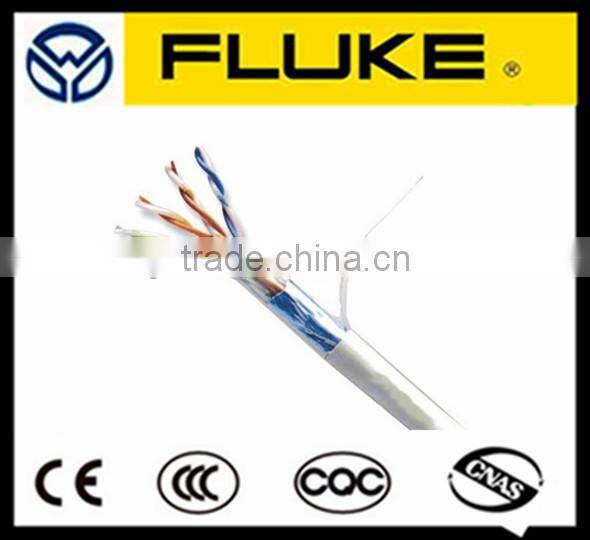

Cat5e FTP Network LAN Cable
Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high performance in your Cabling solution, or project.
1.Certification: CE. RoHS,REACH,ISO Listed.
2.Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment.
4.Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc.
Cat5e Network Cable Technical Performance(100m), Lan Cable FTP Cat5e
| Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PHASE DELAY≤ ns | ELFEXT ≥dB/100m | PS NEXT ≥dB/100m | PS ELFEXT ≥dB/100m |
| 1 | 20.0 | 2.0 | 65.3 | 570 | 63.8 | 62.3 | 60.8 |
| 4 | 23.0 | 4.1 | 56.3 | 552 | 51.7 | 53.3 | 48.8 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 45.7 | 48.8 | 42.7 |
| 10 | 25.0 | 6.5 | 50.3 | 545.38 | 43.8 | 47.3 | 40.8 |
| 16 | 25.0 | 8.2 | 47.3 | 543 | 39.7 | 44.2 | 36.7 |
| 20 | 25.0 | 9.3 | 48.5 | 542.05 | 37.7 | 42.8 | 34.7 |
| 25 | 24.3 | 10.4 | 44.3 | 541.2 | 35.8 | 41.3 | 32.8 |
| 31.25 | 23.6 | 11.6 | 42.9 | 540.44 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 27.8 | 35.4 | 24.8 |
| 100 | 20.1 | 22.0 | 35.3 | 537.6 | 23.8 | 32.3 | 20.8 |
cat 5e different spec for your option
| Conductor diameter | Conductor Material | package(pull box) | |
| 0.38mm CCA+ 0.35mm CCS | 305m/box | ||
| 0.4mm CCA+0.35mm CCS | 305m/box | ||
| 0.4mm | 4CCA+4CCS | 305m/box | |
| 0.45mm | 4CCA+4CCS | 305m/box | |
| 0.5mm | 4CCA+4CCS | 305m/box | |
| 0.4mm | 8CCA | 305m/box | |
| 0.45mm | 8CCA | 305m/box | |
| 0.5mm | 8CCA | 305m/box | |
| 0.35mm | 8CU | 305m/box | |
| 0.4mm | 8CU | 305m/box | |
| 0.45mm | 8CU | 305m/box | |
| 0.5mm | 8CU | 305m/box | |
| 0.4mm | 4CU+4CCS | 305m/box | |
| 0.45mm | 4CU+4CCS | 305m/box | |
| 0.5mm | 4CU+4CCS | 305m/box | |
Cat5e FTP Network LAN Cable :
1.Fast and reliable connection
2.Twisted pairs with bright color for easy recognition
3.Ripcord and foot-mark for convenient use
4.Smooth jacket for easy pulling in tight space
5.Colors: Light gray, blue, white or as per customer's requirements
Specifications:
Conductor:Copper,CCA,CCS 0.45 to 0.52mm 24AWGor 26AWG etc
Insulator: HDPE/ PE
Jacket: PVC, LSZH PVC
Technical characteristics:
Conductor diameter: 24 AWG (0.51mm)
Construction: 0.50CCA30%+0.92PE+5.1PVC
Minimum bend radius: 4 outer cable diameters
Conductor elongation: 14% minimum
Weight per 1000 ft: 10.4 kg (22.8 lbs)
Standard package: 305 m (1000 ft)
