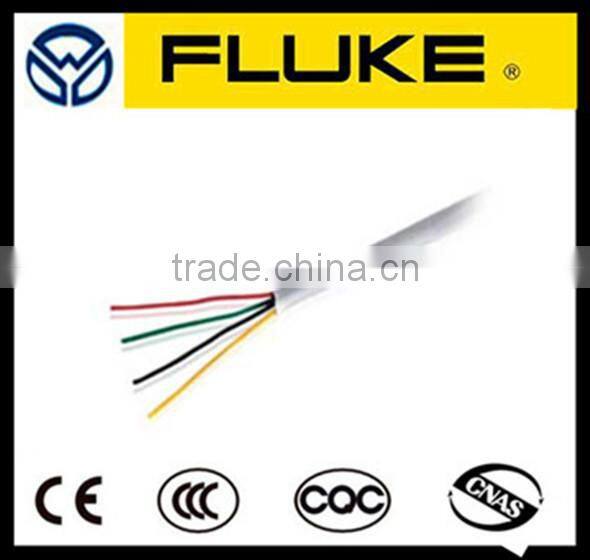

Help CenterSilicone Rubber Insulation Copper Conductor Alarm Cable
Related Products
-
Fire Retardant Shielded Security Alarm CableUS$ 0.1 - 2.5MOQ: 20000 Meters -
Copper Conductor Aluminum Foil Shield LSZH Insulation Fire Alarm CableUS$ 0.1 - 2.5MOQ: 20000 Meters
-
Supplier PVC Insulated Flexible Alarm CableUS$ 0.1 - 2.5MOQ: 20000 Meters
-
Supplier Fire Resistance Copper Core Fire Alarm CableUS$ 0.1 - 2.5MOQ: 20000 Meters
-
4 Cores 0.60CCA PVC Jacket Aluminum Shield Security Alarm CableUS$ 0.1 - 2.5MOQ: 20000 Meters
Henan billion net Photoelectric Technology Co., Ltd is the leading cable manufacturer in China. Cables have been our business for 2 yeas. We offer cat 7 lan cable so your customers can enjoy ultra-fast networking, Our other products cover more than 100 types of CAT6A, CAT6, CAT5E, RVV ,BV,RG ,Telephone wire, Speaker wire ,Alarm cable and so on ,
We are located at Tanghe, Henan province. eleven production lines in our ISO 9001:2008-certified 20,000 square meters factory help us fill orders for buyers in the Europe,America,Asia,Australia, and other countries. and mort than 200 employees make delivery in 20 days possible.
We turn out up to 50 million meters of cable per year, High quality standards and reliable delivery schedules are both very important to our customers. When standards apply (EIA/TIA, ISO ,ROHS, CE, UL, ETL and so on) all products will be 100%compliant .email us today.

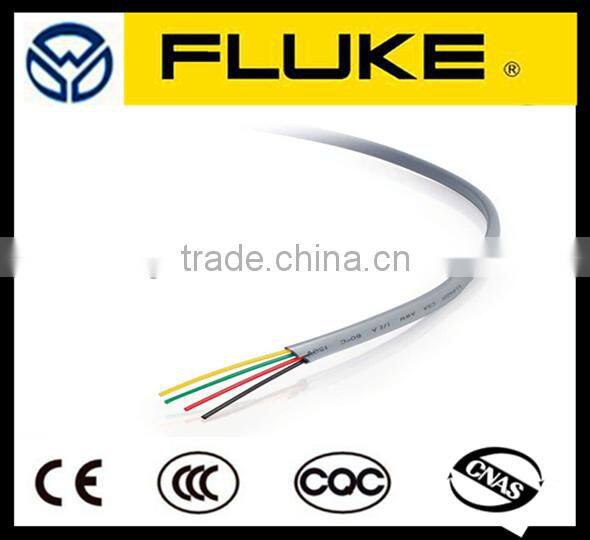

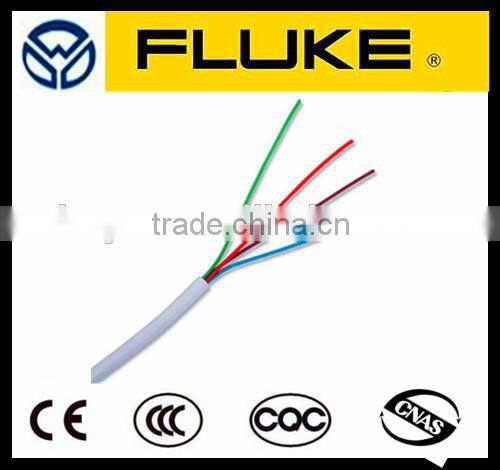

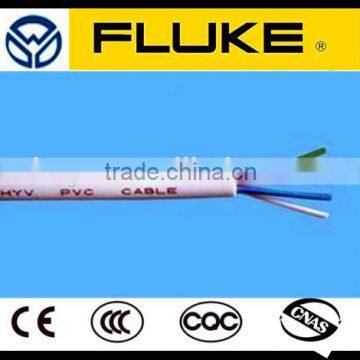

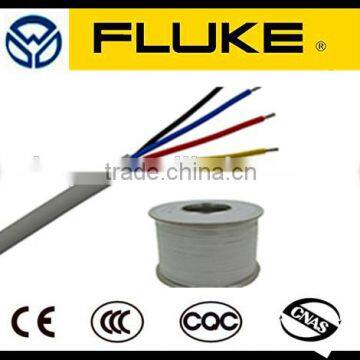

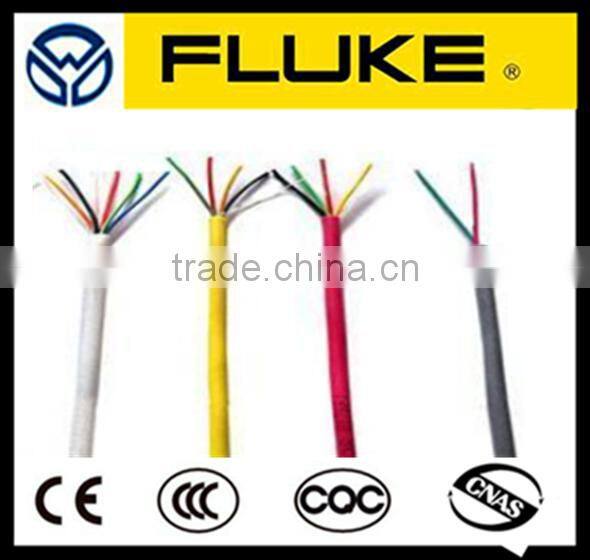

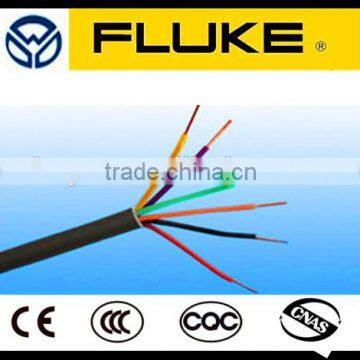

copper conductor alarm cable
1)Inner conductor 4cx7/0.20mm
2)I.D:1.00mmpvc
3)OD:3.6mm
4)conductor materical :TCCA
5)jacket material :PVC
6)color:white
7)packaging details:coil paper spool,pull box
8)miniumum order quantity :10 kilometers
Electrical Charateristics
| Conductor Resistance: | <125ohms/km |
| Resistance Unbalance: | <2.5% |
| Dielectric Strength DC: | 2000V/1min |
| Insulation Resistance: | >3000Mohms-km |
| Impedance: | 100ohms+/-10% |
| Mutual Capacitance: | <100nF/km@1KHz |
Physical Properties
| Conductor tensil strength: | >245Mpa |
| Conductor Elongation: | >10% |
| Insulation tensil strength: | >10Mpa |
| Insulation Elongation: | >200% |
| Insulation Hot shrinkage: | <5% |
Specification Product Description
2Cx0.22mm²
2CX7/0.20mmOFC I.D:1.0mmPVC O.D:3.2mmPVC
4Cx0.22mm²
4CX7/0.20mmOFC I.D:1.0mmPVC O.D:3.6mmPVC
6Cx0.22mm²
6CX7/0.20mmOFC I.D:1.0mmPVC O.D:4.1mmPVC
8Cx0.22mm²
8CX7/0.20mmOFC I.D:1.0mmPVC O.D:4.5mmPVC
10Cx0.22mm²
10CX7/0.20mmOFC I.D:1.0mmPVC O.D:5.2mmPVC
12Cx0.22mm²
12CX7/0.20mmOFC I.D:1.0mmPVC O.D:5.5mmPVC
2Cx0.22mm²
2CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:3.2mmPVC
4Cx0.22mm²
4CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:3.6mmPVC
6Cx0.22mm²
6CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:4.1mmPVC
8Cx0.22mm²
8CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:4.5mmPVC
10Cx0.22mm²
10CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:5.2mmPVC
12Cx0.22mm²
12CX7/0.20mmOFC I.D:1.0mmPVC +AL O.D:5.5mmPVC
2Cx0.22mm²
2CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:3.3mmPVC
4Cx0.22mm²
4CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:3.8mmPVC
6Cx0.22mm²
6CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:4.2mmPVC
8Cx0.22mm²
8CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:4.6mmPVC
10Cx0.22mm²
10CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:5.3mmPVC
12Cx0.22mm²
12CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL O.D:5.6mmPVC
2Cx0.22mm²
2CX7/0.20mmOFC I.D:1.0mmPVC+7/0.20mmCU Ground+AL+96/0.12mmTC Weave O.D:3.8mmPVC
4Cx0.22mm²
4CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+128/0.12TC Weave O.D:4.0mmPVC
6Cx0.22mm²
6CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+128/0.12TC Weave O.D:4.6mmPVC
8Cx0.22mm²
8CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+144/0.12TC Weave O.D:5.0mmPVC
10Cx0.22mm²
10CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+144/0.12TC Weave O.D:5.8mmPVC
12Cx0.22mm²
12CX7/0.20mmOFC I.D:1.0mmPVC +7/0.20mmCU Ground+AL+160/0.12TC Weave O.D:6.5mmPVC
More cables & ProductsCables:
1) 75 ohm Coaxial Cable RG6, RG59, RG11;
2) 50 ohm Coaxial Cable RG174, RG58, RG8, RG213, RG214;
3) Siamese CCTV Cable RG59+2C, KX6+2C, RG6+2C;
4) Combo Coaxial Cable RG6+Cat5e, RG6+CAT5E+Messenger etc;
5) LAN Cable/Network Cable UTP/FTP Cat5e, Cat6, Jumper Cable;
6) 1 pair/2 pairs Telephone Cable;
7) Security Alarm Cable, Fire Alarm Cable, Speaker Cable;
8) Optical Fiber Cable (GYXTY, GYXTW, ADSS, FTHH etc.);
9) 50 ohm RF Feeder Cable 1/4"S, 3/8"S, 1/2"S, 1/2", 7/8", 1-1/4", 1-5/8".
Factory Shows:
1.We have a very strict inspection team to check the quality of goods,can provide you the high quality products.
2.we can reply you at first time when you send a email and inquiry to us,and we are very patient to answer every
questions that enquiring by you
3.We have our own factory,can provide you the competitive price.
4.we accept OEM &ODM
If you have any questions,please feel free to contact us at any time.
1.HOW ABOUT OUR QUALITY?
We have our own factory to manufacture the cables and wires,we can control the quality by our self,and we also have a professional quality inspection team,so please rest assured for our quality.
2.HOW ABOUT THE SAMPLE FEE?
Sometimes we can provide a free sample if you are cooperate with us for many time,or if you are sincerely cooperate with us.
3.HOW ABOUT OUR DELIVERY TIME?
Usually,our delivery time is 15-30 days after all the details confirmed.
