Automatic Single Channel Maxi Roll Toilet Paper Log Saw Cutter Machinery

Automatic Single Channel Maxi Roll Toilet Paper Log Saw Cutter Machinery photo-1
Automatic Single Channel Maxi Roll Toilet Paper Log Saw Cutter Machinery photo-2
Automatic Single Channel Maxi Roll Toilet Paper Log Saw Cutter Machinery photo-3
Automatic Single Channel Maxi Roll Toilet Paper Log Saw Cutter Machinery photo-4
Automatic Single Channel Maxi Roll Toilet Paper Log Saw Cutter Machinery photo-5
Automatic Single Channel Maxi Roll Toilet Paper Log Saw Cutter Machinery photo-6
US$ 5,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Toilet Tissue
Processing Type:
Cutting Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Toilet Tissue
Processing Type Cutting Machine
Place of Origin Fujian, China
Brand Name Huaxun Machinery
Model Number HX-SC4
Voltage 380V 50HZ
Power(W) 6.77kw
Dimension(L*W*H) 7100*2250*2600mm
Weight 4T
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Automatic single channel maxi roll toilet paper log saw cutter machinery

Automatic single channel maxi roll toilet paper log saw cutter machinery

Video link: https://youtu.be/JiQinb-7l5w

Product Description

This machine is special for cutting Maxi roll. And maxi cutting diameter is 270mm, Min cutting diameter is 130mm. If you want to cut 300mm diameter, it should be customized. Operation simple and easy, cutting quality is good. The speed of production can be reached 60 cut/min. 2, adopt PLC control. automatic reset ,pushing finished roll and cutting. Cutting length and diameter can be adjusted.
3,automatic check cutting head. The min head cutting is 25mm
4, equipment with man-machine touch screen. All the parameter can be seen on the screen. easy operate.

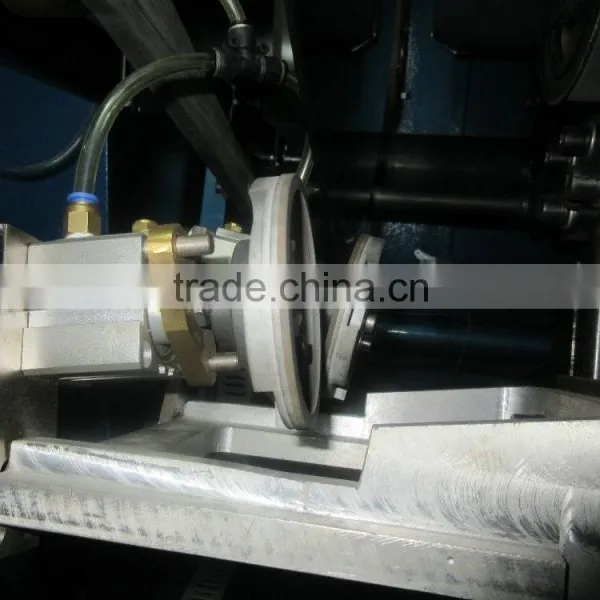

5, with automatic blade sharpen system, Blade grinding precision is high. safety protection system for side door. Machine will stop when side door is open.



Main technical parameter:

1.Production speed: 25-60cut/min
2.Jumbo roll width: 2000mm (according to the customer request on cutting length)
3.Jumbo roll diameter: 150-270mm(If want cut 300 diameter, it can be customized)
4.Cutting length: 60-300mm
5.Cutting blade brand: TKM, diameter: 810mm
6.Power supply: 380V/50HZ, 3 phase
7.Cutting blade motor: 6.77KW(380V 50HZ)
8.Equipment overall size (L×W×H): 7100×2250×2600
9.Equipment weight: about 4T

Automatic single channel maxi roll toilet paper log saw cutter machineryAutomatic single channel maxi roll toilet paper log saw cutter machineryAutomatic single channel maxi roll toilet paper log saw cutter machineryAutomatic single channel maxi roll toilet paper log saw cutter machinery

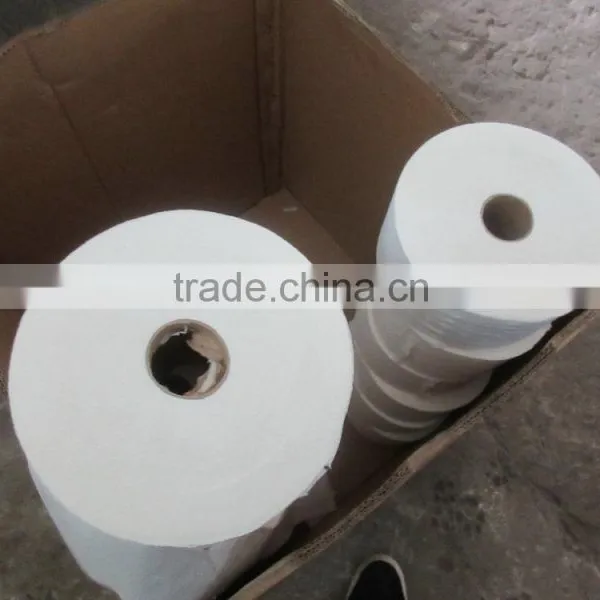

Finished Products

Automatic single channel maxi roll toilet paper log saw cutter machinery

Our Services

Automatic single channel maxi roll toilet paper log saw cutter machinery1.The seller will send one engineer for installation, start up and training on the operations in the buyer’s plant. The buyer will be responsible for the two-way air tickets, transportations, accommodations and meals during their stay, plus 80$ per day for allowance. Also, the buyer should provide all the necessary means and personnel to help on the installation and start up of the machinery.

2. The seller will always provide long term service on technology.
