Automatic toilet tissue paper log saw paper roll cutting machine
- 15 Set / Sets per Month
- Xiamen Port
- T/T Credit Card
-
Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
-
High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
-
Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
-
Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
-
1880mm Type Napkin Paper Making Machine Made in China
-
Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Details
| Condition: | New | Product Type: | Toilet Tissue | Processing Type: | Cutting Machine |
| Place of Origin: | Fujian, China | Brand Name: | Huaxun Machinery | Model Number: | HX-SC4 |
| Voltage: | 380V 50HZ | Power(W): | 6.77kw | Dimension(L*W*H): | 7100*2250*2600mm |
| Weight: | 4T | Certification: | CE | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

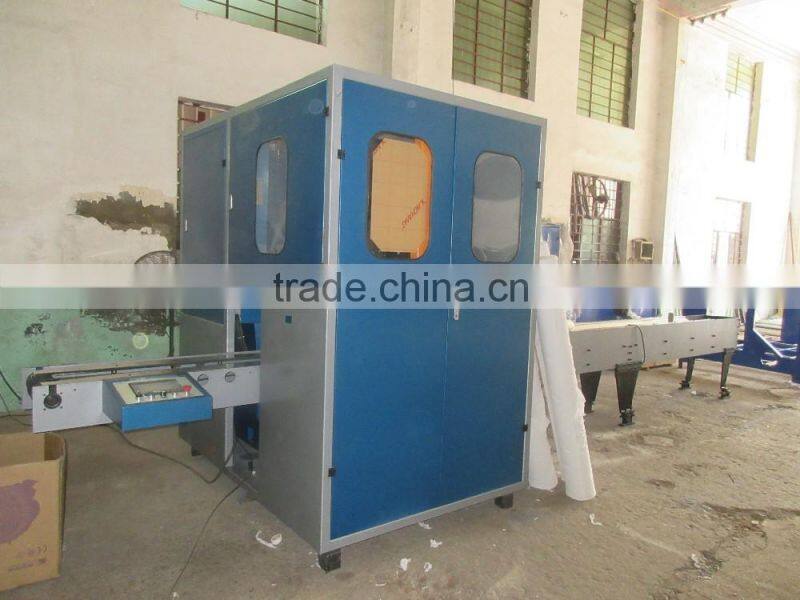

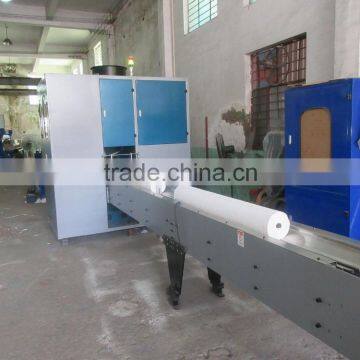

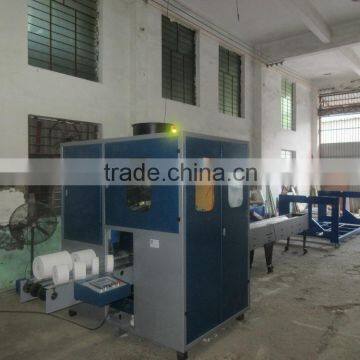

Automatic toilet tissue paper log saw paper roll cutting machine
Video link: https://youtu.be/JiQinb-7l5w

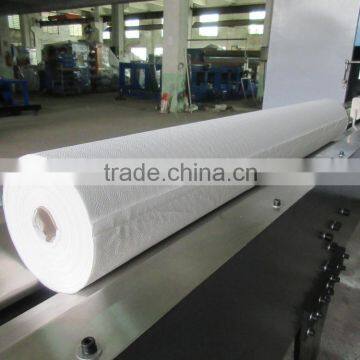

This machine is special for cutting Maxi roll. And maxi cutting diameter is 270mm, Min cutting diameter is 130mm. If you want to cut 300mm diameter, it should be customized. Operation simple and easy, cutting quality is good. The speed of production can be reached 60 cut/min. 2, adopt PLC control. automatic reset ,pushing finished roll and cutting. Cutting length and diameter can be adjusted.
3,automatic check cutting head. The min head cutting is 25mm

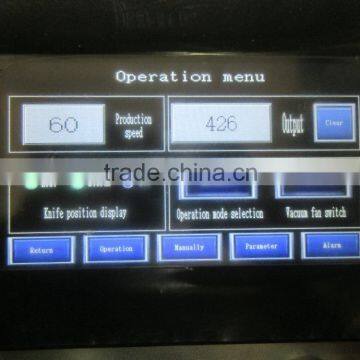

4, equipment with man-machine touch screen. All the parameter can be seen on the screen. easy operate.
5, with automatic blade sharpen system, Blade grinding precision is high. safety protection system for side door. Machine will stop when side door is open.
Main technical parameter:
1.Production speed: 25-60cut/min
2.Jumbo roll width: 2000mm (according to the customer request on cutting length)
3.Jumbo roll diameter: 150-270mm(If want cut 300 diameter, it can be customized)
4.Cutting length: 60-300mm
5.Cutting blade brand: TKM, diameter: 810mm
6.Power supply: 380V/50HZ, 3 phase
7.Cutting blade motor: 6.77KW(380V 50HZ)
8.Equipment overall size (L×W×H): 7100×2250×2600
9.Equipment weight: about 4T
1.The seller will send one engineer for installation, start up and training on the operations in the buyer’s plant. The buyer will be responsible for the two-way air tickets, transportations, accommodations and meals during their stay, plus 80$ per day for allowance. Also, the buyer should provide all the necessary means and personnel to help on the installation and start up of the machinery.
2. The seller will always provide long term service on technology.
Maxi roll paper machine Toilet paper machine Napkin paper machine
https://youtu.be/QPzXptMOyxM https://youtu.be/Re2Ua6WLjoM https://youtu.be/4iiM6RFxUMs
