Paper Core Machine (Paper Tube Machine) HX-ZJJ-A model

Specifications

1.Paper Core Machine can cut tubes automatically,

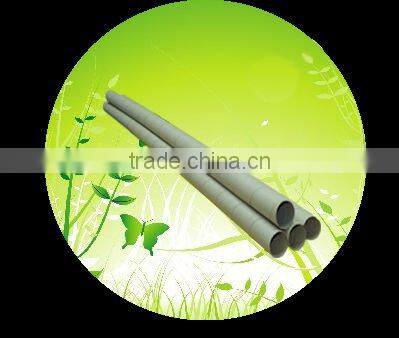

2.The finished-product can be used inside Toilet Paper Roll.

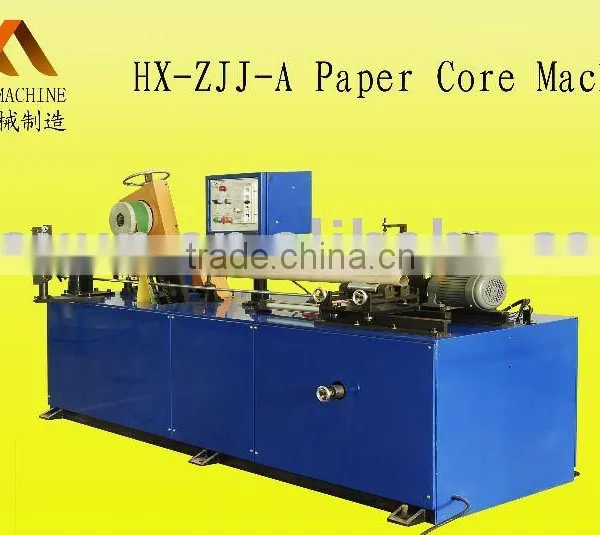

HX-ZJJ-A Paper Core Machine Automatic Paper Core Machine (Paper Tube Machine)



1.Equipment Function:
The paper core produced by this machine is widely applicable to the paper making, plastic, medical and packing industry. This machine can cut tubes automatically with even cut and precise length as requested.

2.Main Technical Parameter:

Production Speed	8~18m/min
Core Inner Diameter	25-80mm(clients should decide two sizes which is between this scope.)
Rolling Paper Layer no	2-4 layers
Jumbo Roll Width	70-80mm
Jumbo Roll Diameter	700-800mm
Cutting length Scope	30-3000mm
Equipment Power	3.4kW(380V 50HZ)
Equipment overall size(LxWxH)	2800*900*1600mm
Equipment Weight	About 1.2T
