Specifications

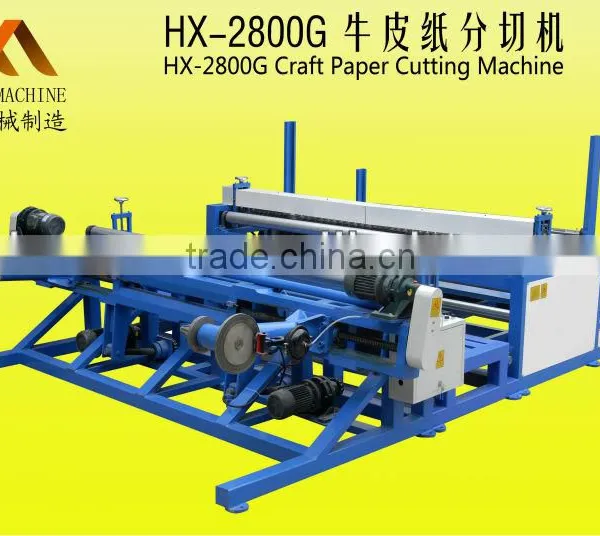

Craft paper cutting machine:this machine is used for cutting and rewinding craft paper ,it is automatic and high convenience.HX-2800G Craft Paper Cutting Machine
Equipment Function & Configuration :
This equipment is mainly used to cut craft paper ,cut big roll of craft paper into required size ,within certain scope,the width of product can be adjusted free by according to client’s requirement.This machine has the feature of compact and reasonalbe structure ,easy operation ,stable running ,is the ideal equipment fro paper making factory and paper processing factory.
Main Technical Parameter :
1,Product size :adjustable ,
2,Jumbo Roll Paper Width :2800mm
3,Jumbo Roll Paper Diameter :1400-1600 mm
4,Jumbo Roll Paper Grammage :50-600 g/m2
5,Cutting Minimum Width :50 mm
6,Cutting Speed:120 m/min
7,Roll -furling Diameter :Maximum 900mm
8,Total Power:8.5kw
9,Equipment Overall Size :3800*2200*1500 mm
10,Equipment Approximate Weight :3.5 tons
Production size |
adjustable |
Jumbo roll paper width |
2800 mm |
Jumbo roll paper diameter |
1400-1600 mm |
Jumbo Roll Paper Grammage |
50-600 g/m2 |
Cutting Minimum Width |
50 mm |
Cutting Speed |
120 m/min |
Roll -furling Diameter |
Maximum 900mm |
Equipment power |
8.5 kw |
Equipment Size |
3800*2200*1500mm |
Equipment Approximate Weight |
3.5 tons |
