Home > Products > Kicthen Towel & Toilet Paper Machine > Automatic Small Type Embossed Rewinding Toilet Paper Making Machine
Automatic Small Type Embossed Rewinding Toilet Paper Making Machine
- XIAMEN port China
- T/T Credit Card
You May Like
-
CE Certication Automatic High Speed Toilet Paper Making Machine
-
Full Automatic Kitchen and Toilet Paper Machine
-
HX-2400F Small Rolled Paper Cutter for Sale
-
Excellent Toilet Tissue Roll Rewinding Machine
-
Quality Jumbo Roll Paper Printing Machine
-
HX-1575B Fullly Automatic Toilet Roll Paper Production Line
Product Details
| Product Type | Toilet Tissue | |||
| Processing Type | Embossing Machine | Place of Origin | Fujian, China | |
| Brand Name | HUAXUN | Model Number | HX-1575B small toilet paper making machine | |
| Voltage | 380V,50HZ,3 Phase | Power(W) | 7.6KW | |
| Dimension(L*W*H) | 5.3*2.25*1.55 | Weight | 4 tons | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic Small Type Embossed Rewinding Toilet Paper Making Machine

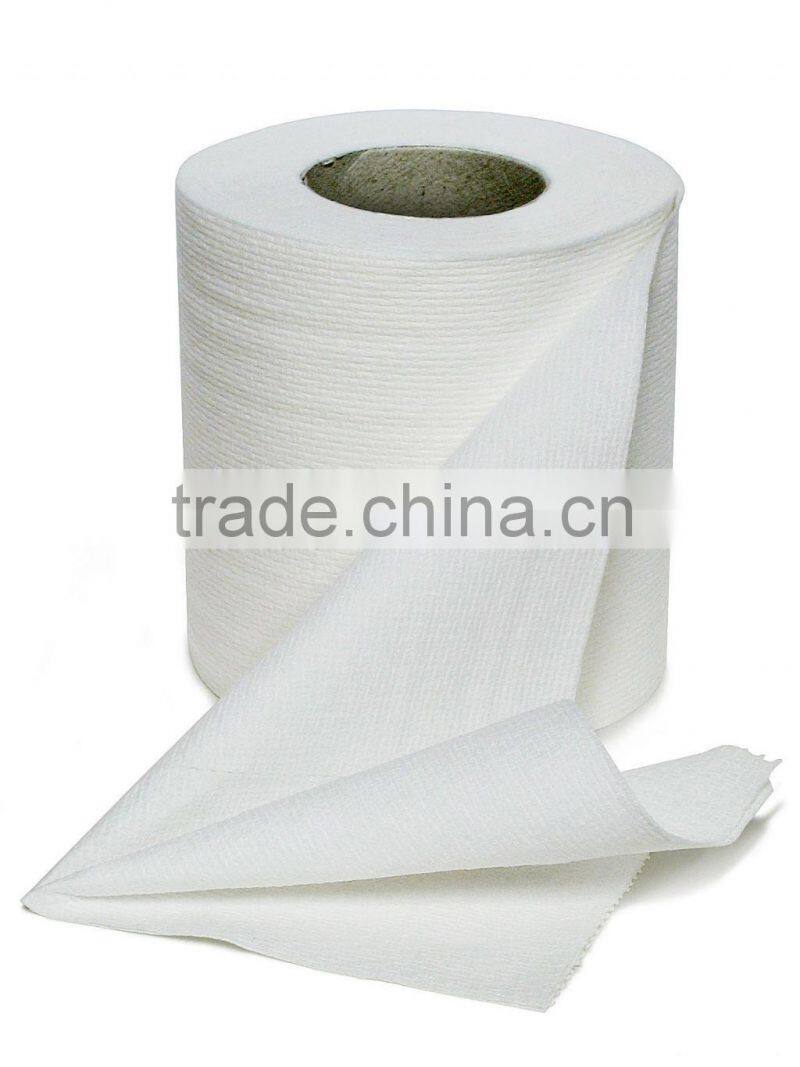

A.This machine is to use Jumbo Roll Paper to produce Toilet Paper Roll or one ply
kitchen towel;
B.can add glue-lamination unit on this machine to make two plies of Kitchen Towel.
C. can select 1 set of embossing unit(for 1 kind of embossing pattern) or 2 sets of embossing unit(for 2 kinds of embossing pattern).
1.Equipment Function and Configuration
1. Adopts PLC programmable controller to control the production program.
2. Base paper(Jumbo Roll Paper) is pneumatically uploaded onto machine. It has a device to control tension of paper when it is unwinded.
3. The rewinding process of the product is tight first and loose afterward, with its
tension adjustable.

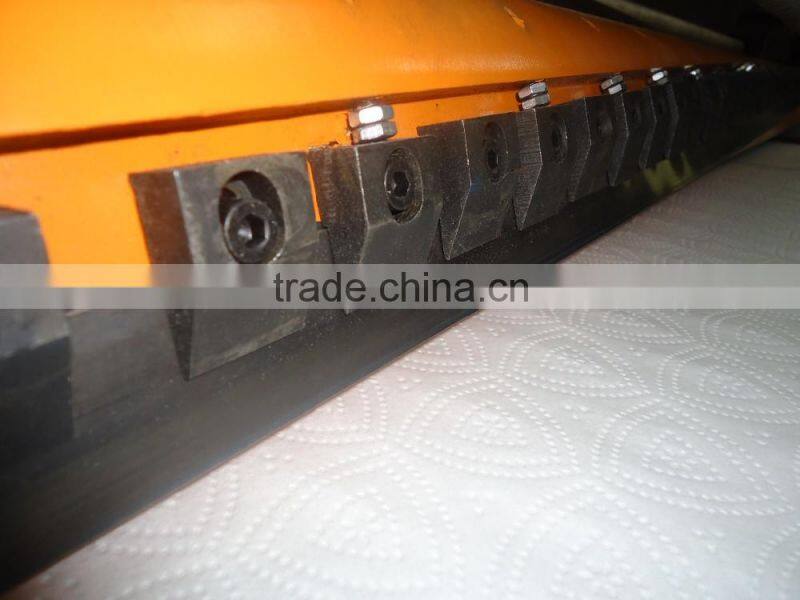

4. Perforation length is adjustable.

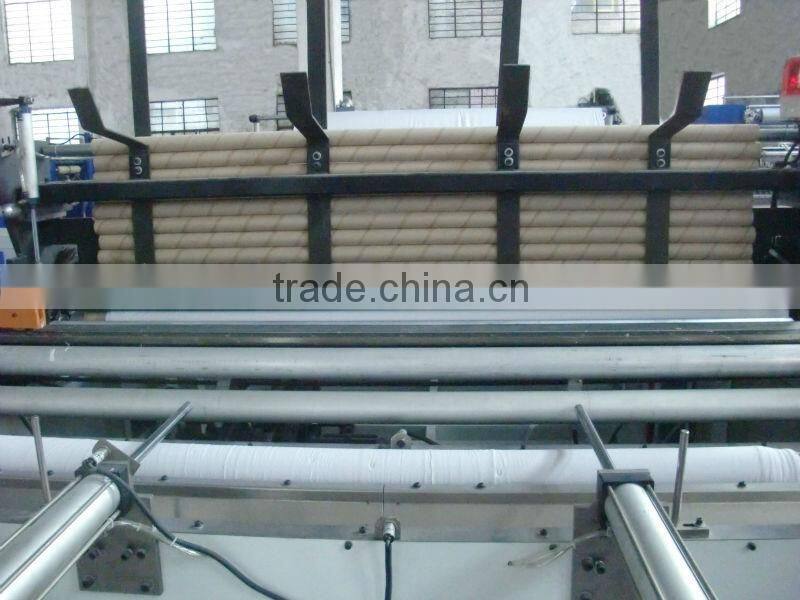

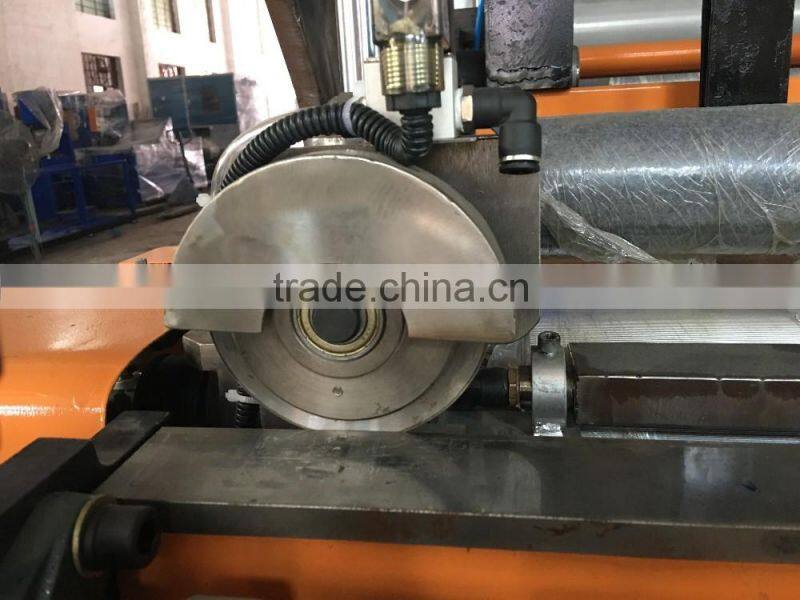

5. Paper core replacement, spraying glue and cutting paper carry through automatically and sequentially.
6. Embossing Pattern will be decided by clients
7. Bearing, electric component and synchronous belt are of famous brand.
8. Early warning for situation that material breaks thus you can stop machine to add
paper core, early warning for shortage of paper tube, early warning for low voltage
of power supply,early warning for inlet wire phase mistake power supply.
9. Double faces of equipment is sprayed by paint.
10. Counting: perforation distance or diameter of furled roll.
Optional(will require additional cost from the buyer):according to client's requirement, we can equip machine with double embossing units, 1-3 color printing device glue-lamination Unit for producing 2 plies of kitchen paper with glue between 2 plies to enhance water absorbability.
2.MAIN TECHNICAL PARAMETER:
| Production speed | 100-200 m/Minute |
| Roll-furling diameter | ≤130 mm |
| Jumbo roll paper width | ≤ 1800mm (1575 model) |
| Jumbo roll paper diameter | ≤ 1200mm |
| Equipment power | 7.6 KW (380V ,50HZ, 3 phase) |
| Equipment weight | about 4 Tons |
| Equipment overall size(L*W * H) | 5.3 * 2.25 * 1.55 M |

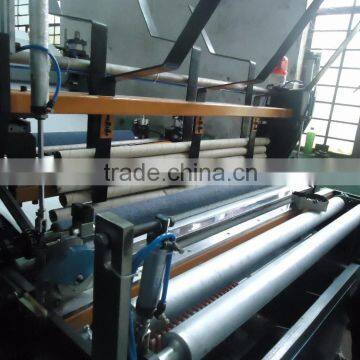

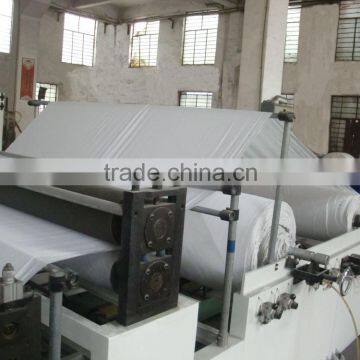

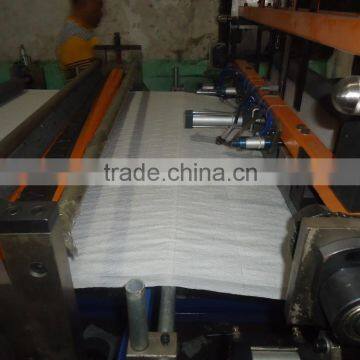

3.Picture

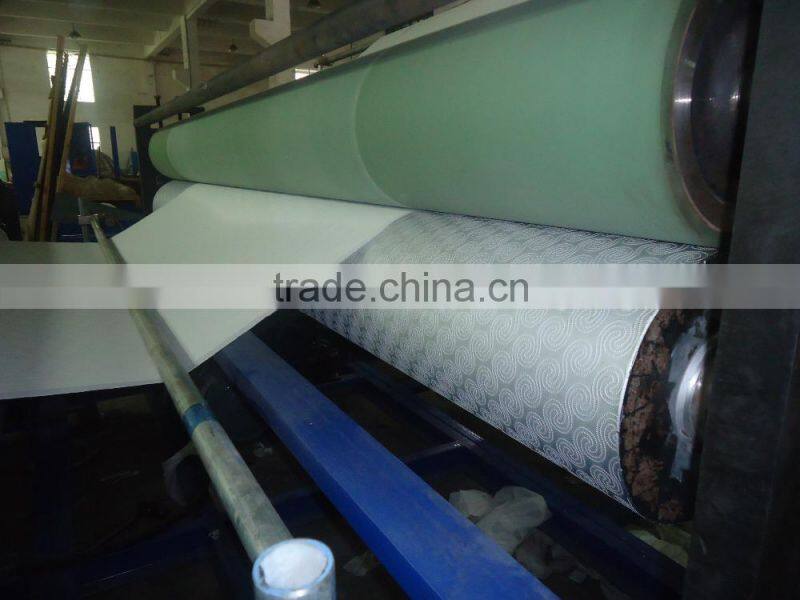

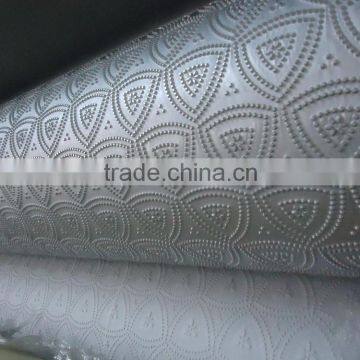

Some embossing unit(embossing pattern can customize by customer)
1.The seller will send one engineer for installation, start up and training on the operations in the buyer’s plant. The buyer will be responsible for the two-way air tickets, transportations, accommodations and meals during their stay, plus 80$ per day for allowance. Also, the buyer should provide all the necessary means and personnel to help on the installation and start up of the machinery.
2. The seller will always provide long term service on technology.
1.Q:who are we ?
A: Quanzhou Huaxun Machinery Making Co., Ltd is a leading paper convert machine manufacturer .our product sale spreads all over the world,in many counties,we have our own agent.Our products widely cover toilet paper machine,towel paper (kitchen towel )machine,hand towel machine,facial tissue machine,napkin paper machine,craft paper machine,and other relative machine,etc.
2.Q:what is our payment terms?
A:our general payment terms is TT.Before production,our customers should pay 30% down payment to us,then pay 70% after the machines are all ready to ship to buyer.(For other payment terms,also can be communicated by buyer and seller two parts.)
3.Q:what is our warranty?
A:our warranty is one year,the parts can be replaced freely within one year,after one year,we also will provide slove project asap for any problems you have,will try our best to help you out of trouble.
4.Q:what is our service?
A:If you just enter this line and new for paper convert business. We will provide properly program from jumbo roll paper to finished products, to help you get familiar with this line and start business well.
2.We can help you to get the documents you need for customs clearance to help you make it easy.
3.Before the machine delivery,we will test the machines in our factory and make sure they are running well.If customers want to come to our factory to test the machine,it is ok,and we will send car to pick them up at the airport.
4.We will provide the manual and operating CD along the machines to customers,if necessary,we also can send technician to your factory to help you install and training your workers to operate our machine.
Your satisfaction is our goal,we will try our best to give you the best service,so for any suggestion,will be very appreciated.Have any questions,feel free to contact us,will reply you asap.
