Full-automatic Toilet Tissue Machine Complete Line

Specifications

Full-automatic toilet tissue complete line , toilet tissue machine , toilet tissue paper machine

Equipment introduction:

1,This equipment can produce single or double plies of toilet paper and single ply of kitchen towel with core or without core.

2,Production process

   1)toilet paper:unwinding of jumbo roll--embossing--perforating-- rewinding--trim paper and spray glue on it--cutting--packing

   2)kitchen towel:unwinding of jumbo roll--embossing--perforation-- rewinding--trim paper and spray glue on it--cutting--packing

1, Main technical parameter of Rewinding, Embossing and Perforatng Assembly:

1. Production speed: about 120-180 m/ min;
2. Width of jumbo rolls: ≤1800 mm.
3. Diameter of jumbo rolls: ≤1200 mm;
4. Requirement of Jumbo roll:For toilet paper: Double plies is 13-20 g/m² ; Single ply is 20-40 g/m².

   For kitchen towel:Single ply is 30-40 g/m²

1. Weight of jumbo roll: ≤600KGS. (Any other weight can be customized)
2. Diameter of finished products: 100-130 mm;
3. Width of toilet rolls: 90-120 mm, width of kitchen towel: 200-220mm.
4. Perforating distance of toilet rolls: 100-150 mm, perforating distance of kitchen towel: 200-220mm.
5. Machine power: about 11.3 kw(380V 50HZ, 3 phase)
6. Overall size of machine(L*W*H): 5800 × 2600 × 1800 mm.
7. Weight of machine: About 6 tons;

2, Main technical parameter of Log saw cutting Assembly:

1. Width of Jumbo rolls: 1500-2000 mm (Depend on the length of jumbo rolls provided by customers);

2. Diameter of jumbo rolls: φ100~φ120mm (Can be customized);

3. Production speed: Cutting 80~100 times / minute×2 rolls / time;

4. Machine power: 6.77KW(380V 50HZ)

5. Overall size of Log saw cutting assembly(L*W*H): 7080×1750×1920mm

6. Weight: About 2 tons

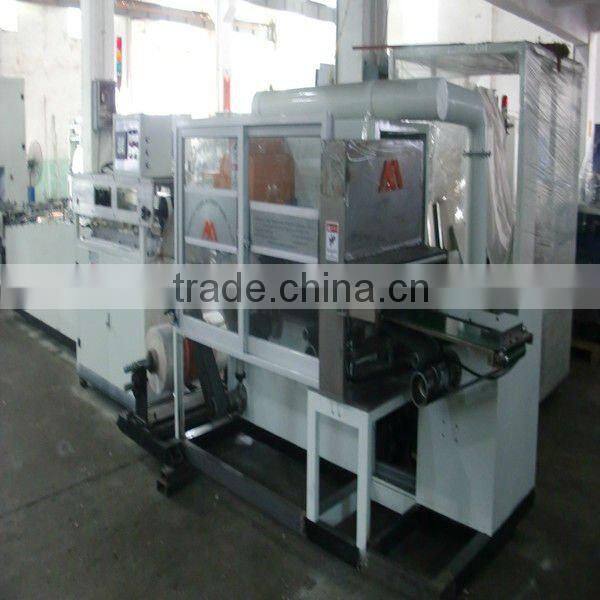

3, Introduction of Full-automatic Roll Paper Packing Machine

 It is different from semi-auto packing machine which uses bags for packaging,it uses a whole bunch of printed plastic film to form a plastic bag with portable hole and pack roll paper in it automatically.Technology is advanced. It can pack 2, 4, 6, 8, 10 toilet rolls or 2 ,4kitchen towel rolls. It's easy to operate, highly automatic and of low cost ,etc.

4, Main Technical Parameter:

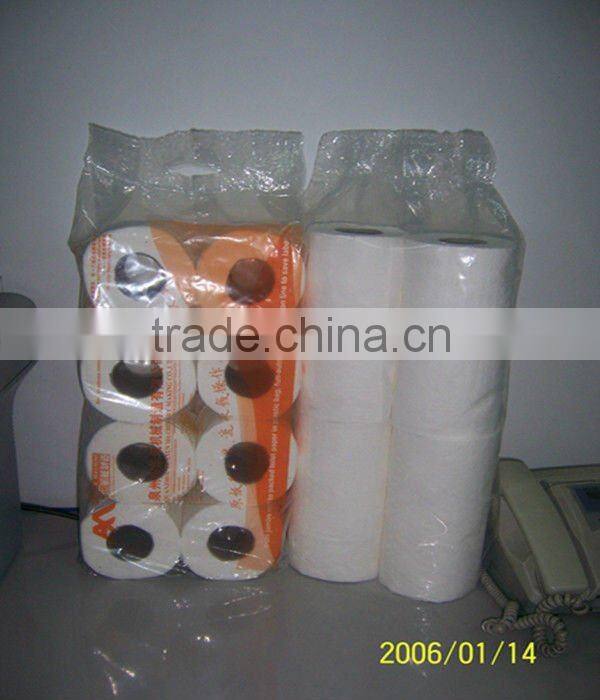

1. Packing specification: 2, 4, 6, 8, 10 toilet rolls/bag or 2,4 kitchen towel rolls/bag

2. Production speed: about 10 bags/min (8 rolls package)

3. Power supply:380V,50HZ, 3 phase

4. Power of Machine: about 5.9KW

5. Overall size of machine(L*W*H):7800 ×1600 × 1750 mm.

6. Weight of machine:About 2 tons;
