high speed ratogravure printing paper machine
high speed ratogravure printing paper machine
Feature |
Specifications |
Printing material |
BOPP,PET,PVC,PE,NY,Paper |
Film and printing effective width |
600-1000mm |
Designed speed |
0-160m/min |
Temperature controller |
Digital intelligent temperature controller |
Contactor/Short circuit overload protector |
DELIXI |
Inverter |
INVT |
Main motor |
Use inverter control the speed |
Guide roller |
55×850mm SHANGHAI |

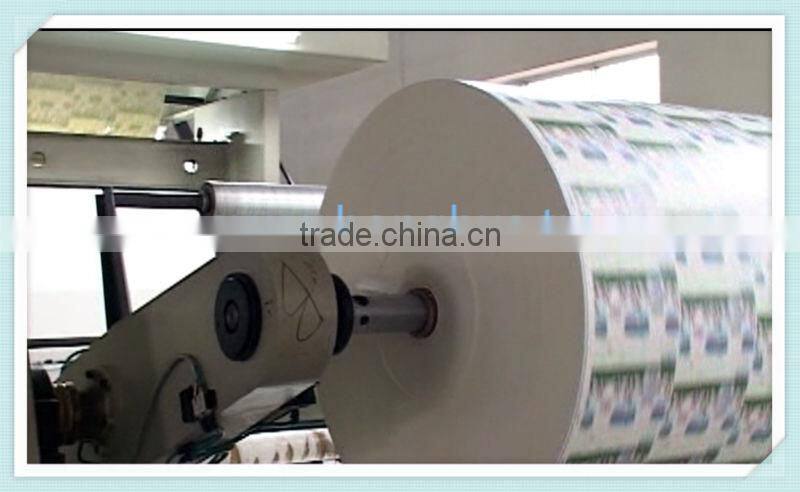

Unwinding & Rewinding Part:
Rewinding |
Specifications |
Single rewind roller |
Pneumatic rewind roller; 73mm |
Winder Controlling |
By friction, inverter motor |
Max rewind diameter |
1000mm |
Unwind tension range |
5-10kg(totally) |
Unwind tension precision |
±0.5kg |
Rewinding |
Specifications |
Single rewind roller |
Pneumatic rewind roller; 73mm |
Winder Controlling |
By friction, inverter motor |
Max rewind diameter |
1200mm |
Printing Part:
Printing part |
Specifications |
Corona treatment |
Intelligent digital corona treatment special for film including knife frame (one set). |
Print type |
Gravure eight colors |
Print speed |
0-160m/min |
Ink dry type |
By electric |
¶ Adopting gravure printing .
¶ Chromatic accurate is the most prominent feature.
¶ It can print 1-8 colors and which according to the production.
¶ Printing , creasing and perforating can be performed at the same time.
Drying Part:
Drying part |
Specifications |
Hot wind recycle system |
Whole sets |
Single group dry separately |
one set/group (10sets) |
Heater |
25kw,380V |
Driver roller |
Hard metal |
The Loading Part:
Our Factory :
With customers:
Certificate:
