Home > Products > printing machine > HY-1000High speed paper PVC ratogravure printing machine

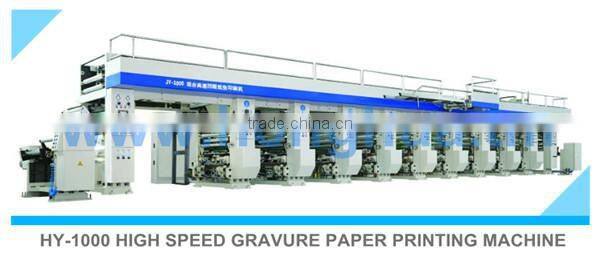

HY-1000High speed paper PVC ratogravure printing machine
- 20 Set / Sets per Month
- Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
- High Quality High Speed Rotogravure Printing Machine
- ASY gravure printing plastic film reel machine
- 2 Color 3 Unit Group Rotogravure Printing Machine
- Polyethylene Film Paper Aluminum Foil Rotogravure Intaglio Printing
- auto register rotogravure printing machine high quality high speed multicolor rotogravure printing
- Roll to Roll multi colour rotogravure printing machinery/textile printing machinery/plastic gravure printing machine
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | Honghua brand |
Model Number: | HY-1000 | Usage: | Paper Printer, Card Printer, Bill Printer, Other, Paper Printer, Card Printer, Bill Printer, plastic BOPP PET PVC PE NY | Automatic Grade: | Automatic |
Voltage: | 3phase 380V | Gross Power: | 380KW | Dimensions(L*W*H): | 22000mmX3700mmX3800mm |
Weight: | 38000kg | Certification: | CE;ISO9001 | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
High Closed Loop Servo Motor and controlled by PLC, human machine interfaceHY-1000 high speed paper ratogravure printing machine
high speed paper ratogravure printing machine high speed paper ratogravure printing machine high speed paper ratogravure printing machine
Feature | Specifications |
Printing material | BOPP,PET,PVC,PE,NY,Paper |
Film and printing effective width | 600-1000mm |
Designed speed | 0-160m/min |
Temperature controller | Digital intelligent temperature controller |
Contactor/Short circuit overload protector | DELIXI |
Inverter | INVT |
Main motor | Use inverter control the speed |
Guide roller | 55×850mm SHANGHAI |
Unwinding & Rewinding Part:
Rewinding | Specifications |
Single rewind roller | Pneumatic rewind roller; 73mm |
Winder Controlling | By friction, inverter motor |
Max rewind diameter | 1000mm |
Unwind tension range | 5-10kg(totally) |
Unwind tension precision | ±0.5kg |
Rewinding | Specifications |
Single rewind roller | Pneumatic rewind roller; 73mm |
Winder Controlling | By friction, inverter motor |
Max rewind diameter | 1200mm |
Printing Part:
Printing part | Specifications |
Corona treatment | Intelligent digital corona treatment special for film including knife frame (one set). |
Print type | Gravure eight colors |
Print speed | 0-160m/min |
Ink dry type | By electric |
¶ Adopting gravure printing .
¶ Chromatic accurate is the most prominent feature.
¶ It can print 1-8 colors and which according to the production.
¶ Printing , creasing and perforating can be performed at the same time.
Drying Part:
Drying part | Specifications |
Hot wind recycle system | Whole sets |
Single group dry separately | one set/group (10sets) |
Heater | 25kw,380V |
Driver roller | Hard metal |
The Loading Part:
Our Factory :
With customers:
Certificate:
