Electric nozzle heater

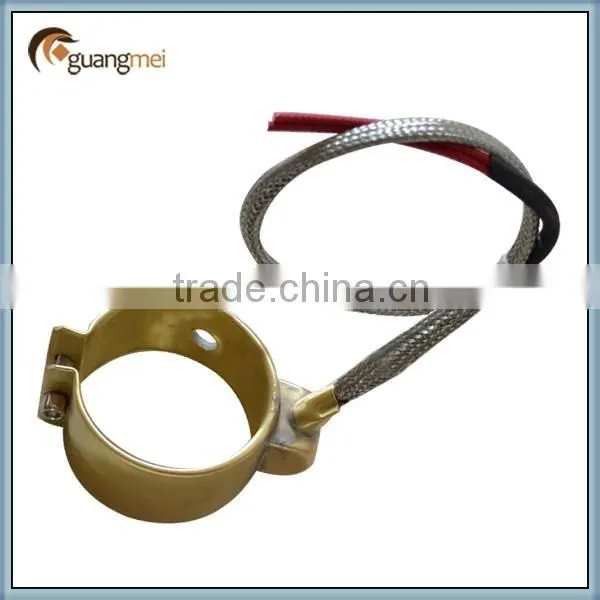

1 brass sealed nozzle heater
2 mica insulated nozzle heater
3 nickel chrome wire
Brass nozzle band heater are available with various Energy saving options in various sheathing materials, viz. Chrome Nickel Steel, Brass, MS, depending upon applications which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 3500C.
Technical data:
1 Outer sheath: Copper/ stainless steel/ cold-rolled galvanized steel
2 Resistance wire: Cr20Ni80
3 Insulation material: Mica/ ceramic
4 Structure: Full sealed structure for copper, non-full sealed structure for other material
5 Shape: Full round, half round or 3/4 round, etc.
Features:
1.Available in Premium, Economy & Power Saving Options Available.
2.Conserves Energy with improved Heating Efficiency Upto 30 Watts per square inch.
3.Special High Grade Mica insulation for Superior Thermal Conductivity and die electric strength.
4.Engineered for Longer life with Superior quality Nichrome wire for uniform Temperature & Maximum Amperage carrying capacity.
5.Designed for Temperatures upto 350°C.
6.Min Dia available 20 mm.
7.Min width available 60 mm..
8.Available in various Lead Terminations & Clampings
9.Robust Terminal junction with Specially Designed Chrome Nickel Steel Protection Cap.
Applications
1.Widely used in Injection Moulding.
2.Blow Moulding.
3.All Plastic & Rubber Processing Machinery.
Please specify the following when ordering:
1) The diameter (mm) of heaters (inner diameter for external heating or external diameter for internal heating)
2) Width of heaters
3) Type, length and position of leads
4) The position and size of the hole for connecting thermocouple OR of the incision.
5) Voltage and power density
6) One piece OR two piece
7) Special gap between two pieces
8) Content of the laser stamping on the sheath of heaters if needed
9) Quantity
