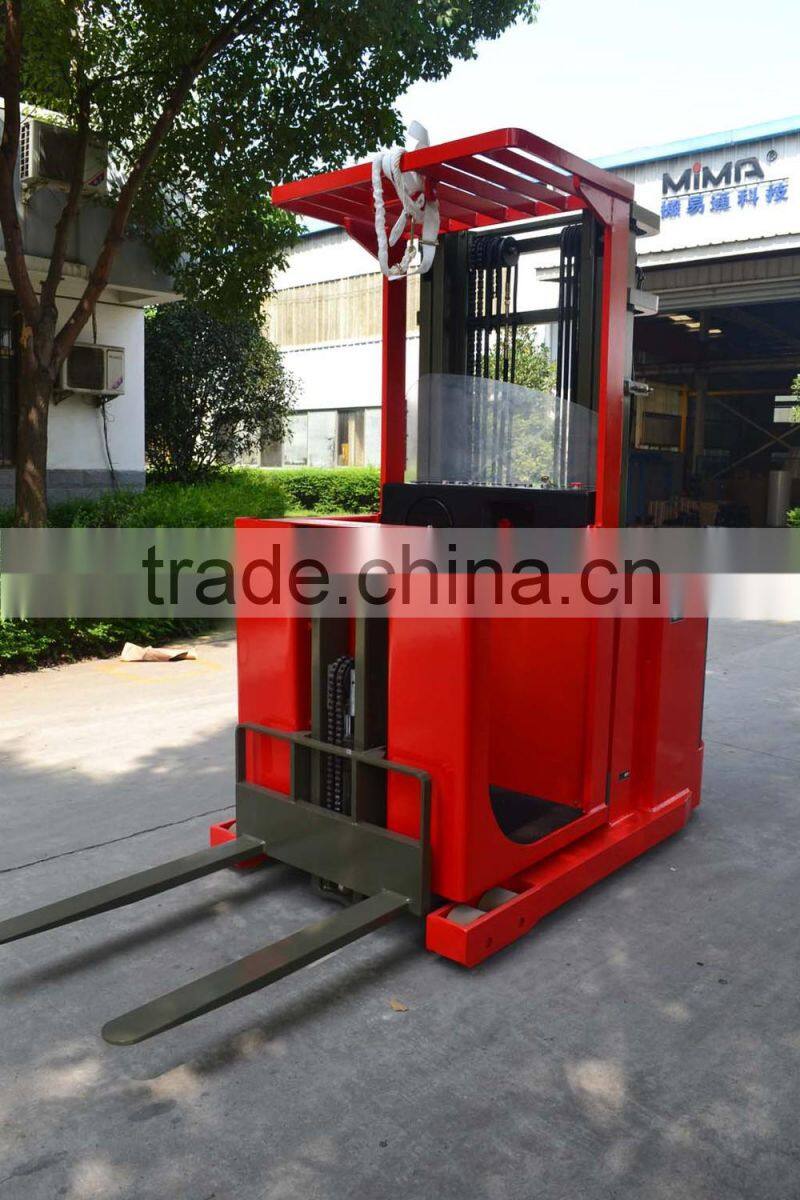

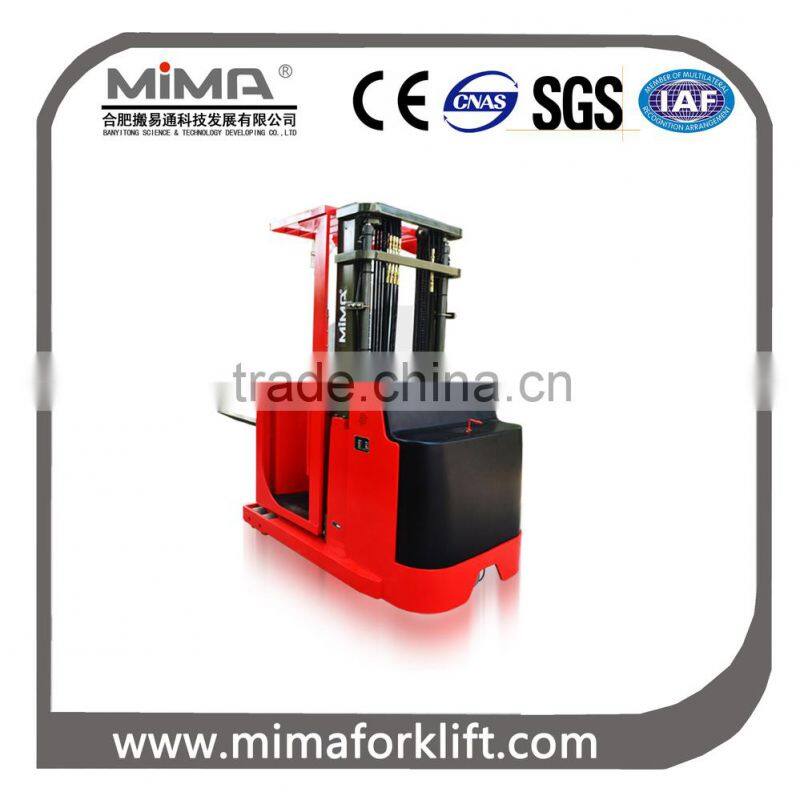

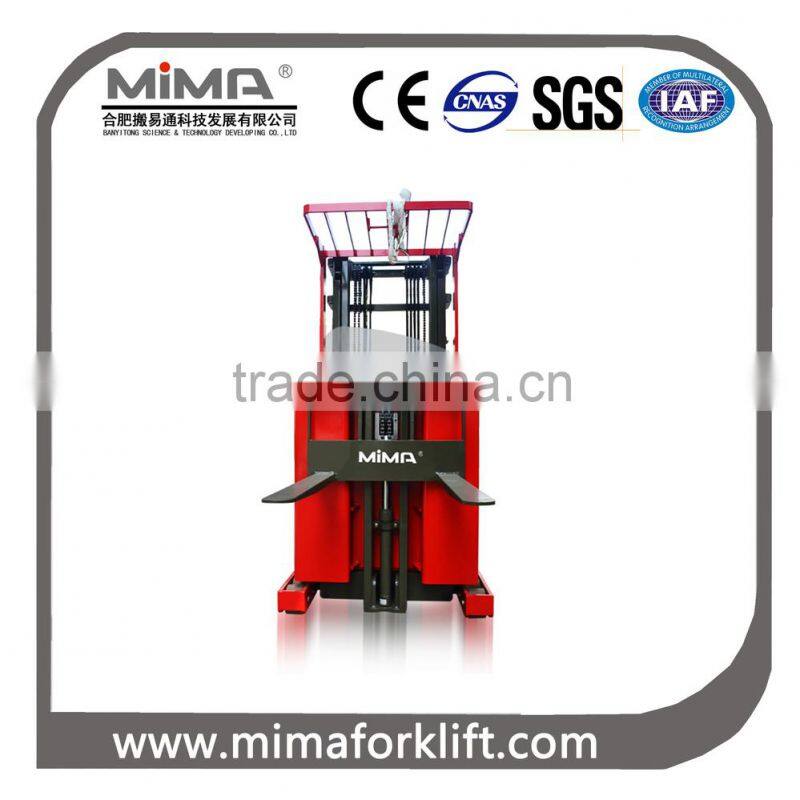

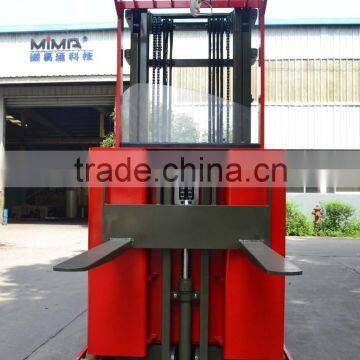

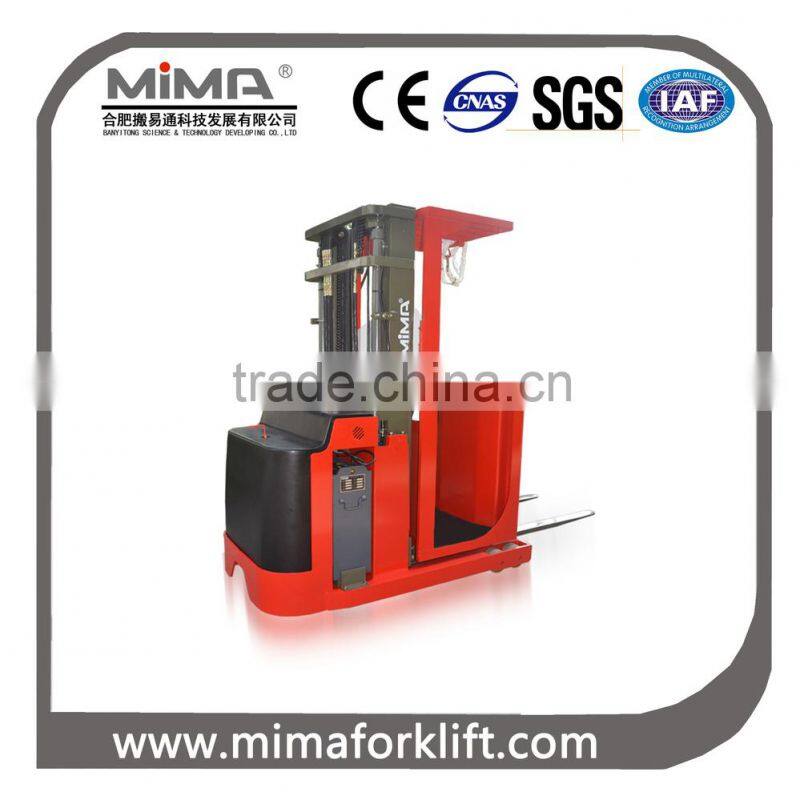

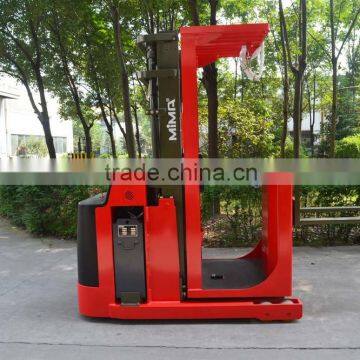

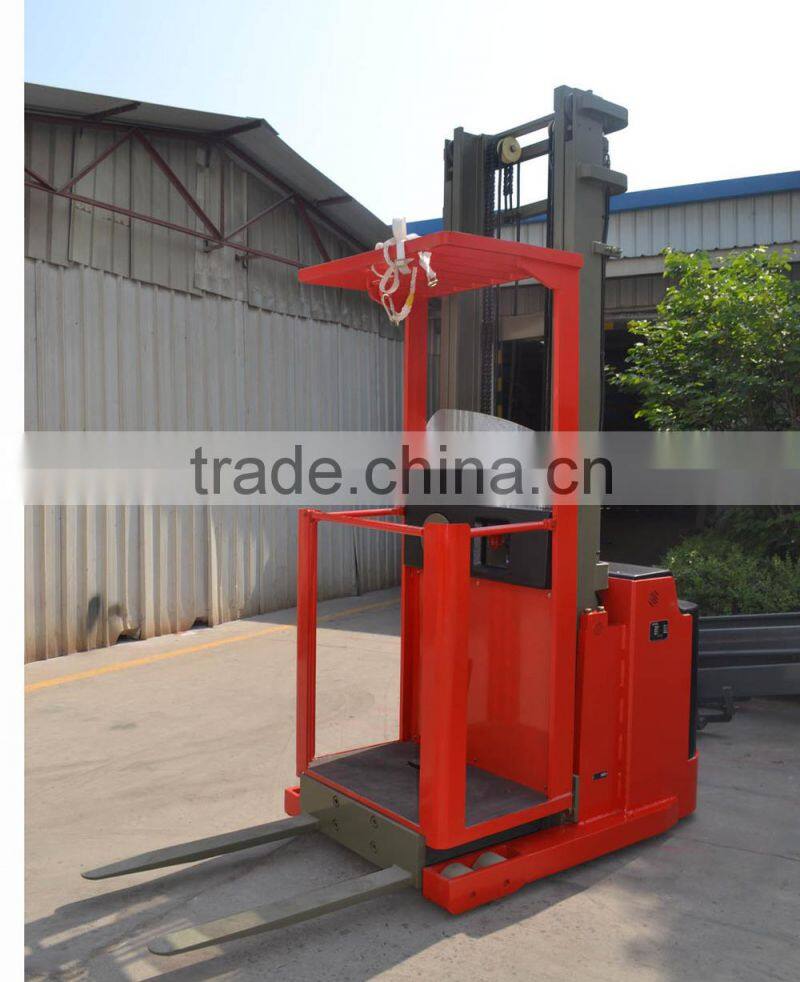

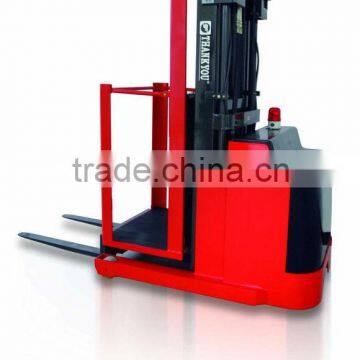

Chinese top battery high level order picker 1000kg with 4500mm lift height THA10 model ;
THA10 series;
2. The Vehicle have driving alram,and safety belt, to ensure the safe driving;
3. Mast Buffering function;
4. The high level order picker including automatic high level order picker and semi-automatic high level order picker;
5. THA Series High level order picker, rated load capacity: 1000kg, max lift height:4500mm
6. With driving direction display, easy to know the direction even in high level;
7. With driving alarm and safety belt;
8. Mast with buffering function.
|
Model No. |
THA10-45 | THA10A-45 With Free-lift fork |
||
| Standard | Power Type | Battery | Battery | |
| Operate Type | Stand-on | Stand-on | ||
| Rated Capacity | Q(kg) | 1000 | 1000 | |
| Load center | C(mm) | 450 | 450 | |
| Dimen sion |
Lift Height | h1(mm) | 4500 | 4500 |
| Height--Free Lift | h2(mm) | / | 700 | |
| Height---Mast Lowered | h3(mm) | 3000 | 3000 | |
| Height-Mast Extended | h4(mm) | 5245 | 5245 | |
| Height-Mast Extended w/ overhead guard | h5(mm) | 6732 | 6732 | |
| Height-Overhead guard--mm | h6(mm) | 2247 | 2242 | |
| Max.Height--Operation Platform to Ground | h7(mm) | 4733 | 4733 | |
| Overall Length | 11(mm) | 2536 | 2734 | |
| Overall Length to fork face | 12(mm) | 1606 | 1804 | |
| Overall Width | b1(mm) | 1080 | 1080 | |
| Fork Dimensions | mm | 930*100*35 | 930*100*35 | |
| Width across forks | b5(mm) | 700 | 700 | |
| Turning radius | Wa(mm) | 1440 | 1640 | |
| P o w e r |
Drive Motor type | AC | AC | |
| Driving Motor (S2 60) | kw | 1.1 | 1.1 | |
| Lift motor type | DC | DC | ||
| Lift Motor (S3 15%) | kw | 3 | 3 | |
| Steering motor type | DC | DC | ||
| Steering motor (s2 60) | 0.75 | 0.75 | ||
| Battery V/AH | V/AH | 24/480 | 24/480 | |
| Steering | Steering type | Full hydraulic | ||
| Parking Brake model | regenerative braking | |||
| Parking Operation type | releasing acceleration switch | |||
| Service Brake-Operation type | Electromagnetic | |||
Standard packing: nude packing,wrapped by polybag;
Warranty:
1): 12 month for frame,pump,controller,motor with right operation;
2): 12 months for battery and changer;
3):easy-broken items not in our responsibility,like wheel,bearing,carbon brush, friction disk,ignition switch,wire,plastic parts etc;
Banyiting sicence & technology developing co.,ltd was established in 1994,with 20 years experiences in material handling equipments.Our factory located in the science & technology culture and ancient city of hefei,Anhui province.It is about 400 kilometers away from the Shanghai city,45 minutes by air or 2.5 hours by high-spped train.We are high-tech enterprise,specializing in R&D and designing electric forklift,and material handling solutions for different industries.We have ISO9001:2008 Quality Management System Certification,the People's Repulic of China Special Equipment Production License and Hefei City Innovative Enterprices.All products with CE certification and SGS certification.
Now MIMA brand have 12 major series,more than 50 products,such as the electric pallet truck,electric pallet stacker,reach truck,forklift,tow tractor,narrow aisle forklift,special forklift,AGV etc.We supply the 500KG-100000KG material handling solutions to the clients,to achieve products serialization and large-scale manufacture.All MIMA products are widely used in medicine,food,chemical,electronics,machinery,furniture and many industries.
If you have any reuqirements or promotion on that,pls don't hesitate to contact with us.
