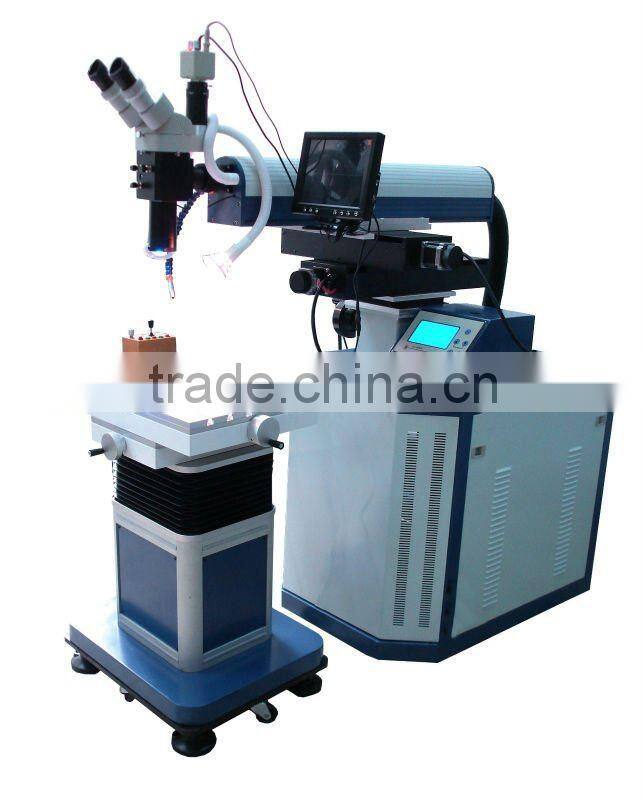

Laser Mould Welder
- 100 Set / Sets per Month
- Qingdao
Product Details
Place of Origin: | Shandong, China | Brand Name: | Dowell | Model Number: | DW-180 |
Packaging Details
plywood box
Product Description
Specifications
Laser mould welder:1.High single-pulse energy
2.Germany gold-plated technology
3.Seam smooth
4.good beam quality
Laser Mould Welder
Introduction
The laser deposition welding system (laser mould welder) is specially designed for the mould industry and used in repairing of precision moulds, such as mould manufacture for digital products, mobile phone, toy, automobile and motorcycle, and molding industry. Through the repairing of moulds, it is possible to reuse the moulds, save the production cost and improve the working efficiency significantly. This technology can also be used to modify the design or size of moulds to reduce the development period.
Features
The working principle of this laser deposition welding system is to use laser high thermal energy and the melting technology in spot to process the welding and repairing of minute parts. It makes up the shortage of traditional hydrogen arc welding in repairing precision surfaces, avoids the two difficulties of thermal strain and after-treatment, and saves the production period of mould.
Model | DW-180 Laser Mould Welder |
3-axis stroke of work bench | X=300mm, Y=200mm (X, Y can be adjusted manually and Z-axis can be lifted) |
Bearing of work bench | ≤200kg |
Device weight | 300kg |
Power supply | 220V±10%/50Hz or 380V±10%/50Hz |
Laser parameters |
|
Laser type | Nd:YAG pulse |
Adjusting range of light spot | 0.1-0.3mm |
Size of light spot | 0.2-3.0mm |
Laser wavelength | 1064nm |
Pulse width | ≤20ms |
Maximum laser power | 180W |
Pulse frequency | ≤50Hz |
Laser output focus length | 50mm/100mm/120mm (optional) |
Laser cooling | Water cooling |
Observing system | Microscope (360° adjustable) |
Protection gas | One line (xenon) |
Solder parameter |
|
Welding wire diameter | 0.1mm-0.8mm |
....
Company Profile
Jinan Dowell Laser Equipment Co.,ltd. (the former Wuhan Dowell Laser), with 12 years production experience, specialized in laser cutting, marking equipment production, developing and sales, and procide customers with comprehensive solutions, compare to same industry, we hold less autonomy R& D companies. Company's full range of products have passed CE, FDA and others international certification.
Since established of our company, now there are more than 130 technicist and 20 research personnels after continuous improvement of management. Our company occupy 3000 square meters of modern workshops, located in the Xinxu Industrial Zone of Tianqiao District, Jinan City with traffic convenient. We have established more than 20 agencies all over China, such as Guangzhou, Shanghai, Beijing, Zhejiang, Fujian, etc. We have established agent relations covering 30 countries and areas. Our products are exported to more than 60 countries and areas all over the world, including America, Russia, Germany, Turkey, Southeast Asia etc.
We have the first class total production line, formed all types and functions of the product structure. In the cultroat market competition, we absorbed fully advanced ideas in the international field. We have independent researched a series of laser engraving machine and cutting products. The series of DOWELL products inject the newest design concept with integration of laser, engine and electricity. So that in the performance the precision and appearance reached the perfect combination, meet the different level demands of users. High quality is our pursuit ,we adopt original importing components, Advanced manufacturing technology, large mass production and high standard testing. Perfect comprehensive after-sale service, won the customers support and trust. Customer first credit first is our highest conviction,through our persistent effort ,we believe,we will build a brilliant future with you!
