Specifications
Laser Mould Welder:1.High single-pulse energy
2.Germany gold-plated technology
3.Seam smooth
4.good beam quality

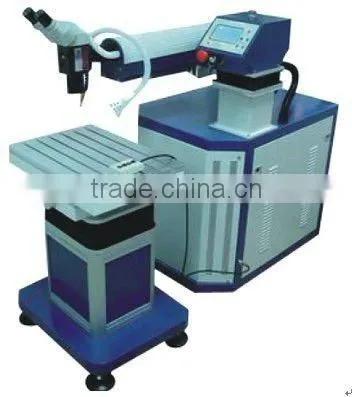

High Precision Laser Mould Welder
Features:

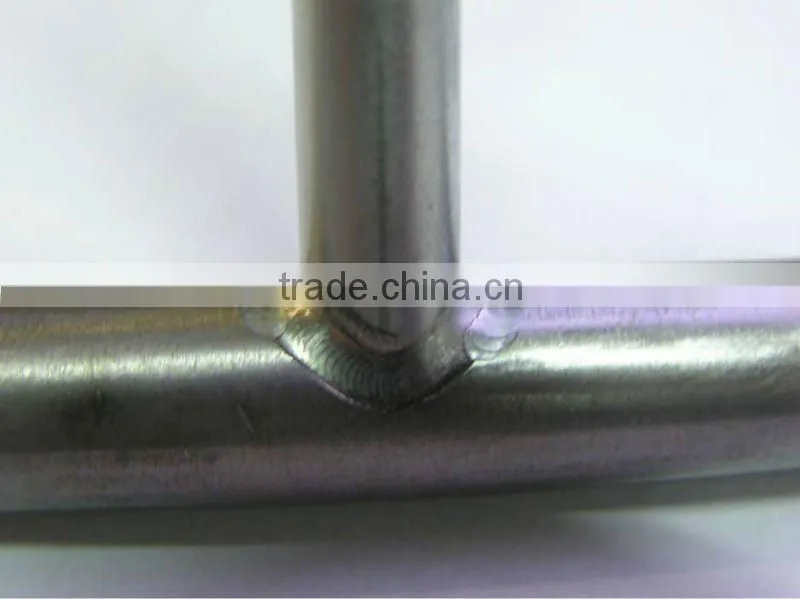

The working principle of this laser deposition welding system is to use laser high thermal energy and the melting technology in spot to process the welding and repairing of minute parts. It makes up the shortage of traditional hydrogen arc welding in repairing precision surfaces, avoids the two difficulties of thermal strain and after-treatment, and saves the production period of mould.
Model |
DW-180w Laser Mould Welder |
3-axis stroke of work bench |
X=300mm, Y=200mm (X, Y can be adjusted manually and Z-axis can be lifted) |
Bearing of work bench |
≤200kg |
Device weight |
300kg |
Power supply |
220V±10%/50Hz or 380V±10%/50Hz |
Laser parameters |
|
Laser type |
Nd:YAG pulse |
Adjusting range of light spot |
0.1-0.3mm |
Size of light spot |
0.2-3.0mm |
Laser wavelength |
1064nm |
Pulse width |
≤20ms |
Maximum laser power |
180W |
Pulse frequency |
≤50Hz |
Laser output focus length |
50mm/100mm/120mm (optional) |
Laser cooling |
Water cooling |
Observing system |
Microscope (360° adjustable) |
Protection gas |
One line (xenon) |
Solder parameter |
|
Welding wire diameter |
0.1mm-0.8mm |
