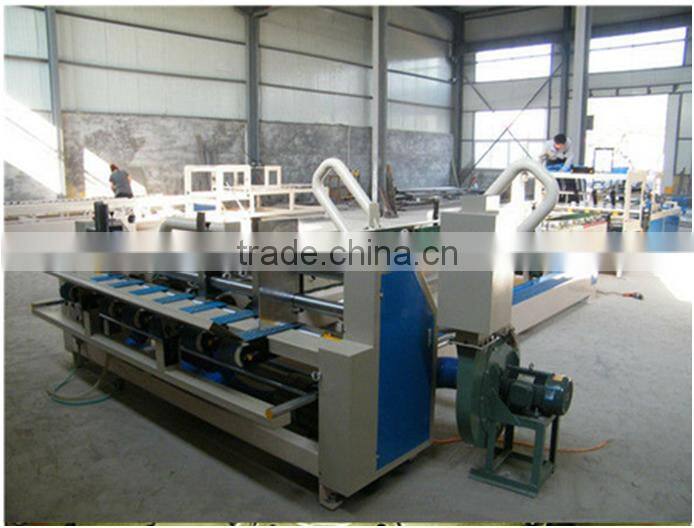

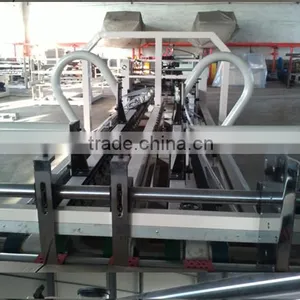

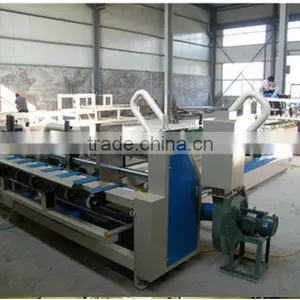

Automatic corrugated paperboard carton box folder gluer machine
XY-QZD auto floding gluing machine
1 computer conrol
2 CE
3 automatical operation
XY-QZD automatic folder gluer is consist of three parts which are feeding paper part, glue folding part,and counting stacking part. Speed adjust by digital, range adjust by PLC, double frequency convertor synchronous operation, with quick reliable and precise control mode. Automatic feeding paper, automatic gluing and folding, automatic counting, automatic stacking and output. Gluing speed can reach to 150m/min, energy -saving, labor saving.
Function of each unit:

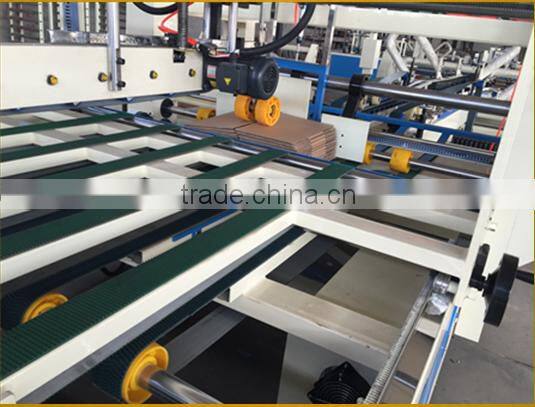

Feeding department:
1.Adopt adsorption type belt front paper feding method, accurately and stable.
2.Adopt high-grade electromagnetic cluth and electromagnetic brake system. Paper feeding department can be controlled individually. Easy operation.
3.Creasing wheel is adjustable for the thickness 2-8mm of cardboard.
4.Frequency control of motor speed with the glue folding department, has a speed of 0-130m/min.
5.Front baffle and the belts of the feeding unit can be adjusted right and left, quick adjustment of various sizes and length of cardboard box.

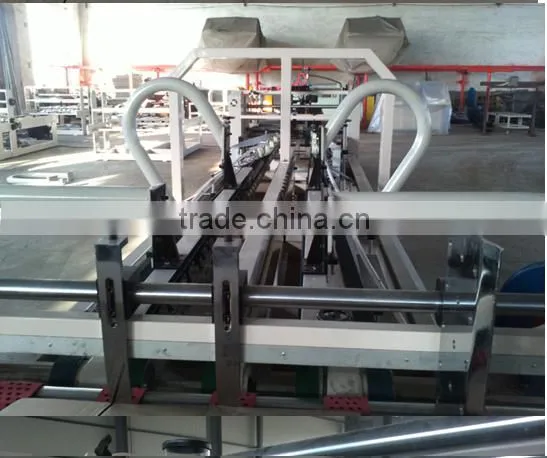

Glue folding department:
1.Main motor adopt frequency control of motor, no noise, convenient and stable.
2.Imported circular seamless docking convey belt made of high wear resistant materials ,folding of cardboard accurately and automaticly.
3.Gluing department selects high quality stainless steel gluing wheels, coating evently ,trouble free and glue saving.
4. Folding department equipped with paper corrective and creasing corrective device.
5.Folding department equipped with two rows fixed position wheel , precision shaping.
6.Folding speed 0-130m/min.
7.The right and left baffles are adjusted electrically.
Counting and stacking department
1.With PLC programmable controller and touch screen digital control ,easy operation, input data without downtime, automatic counting, stacking and output.
2. Counting department adopts frequency control, speed can be adjusted.
3.With Imported circular seamless docking convey belt, stacking trimly, has a speed of 0-130m/min.
4.With knocking system beat the paperboard, has corrective function.
5.Counting and output pneumatically ,with PLC, accuracy and fast.
6.Output department adopt upper and lower belt compressing tightly, make the carton gluing firmly and output trimly. Stacking height is 8-25 pic.

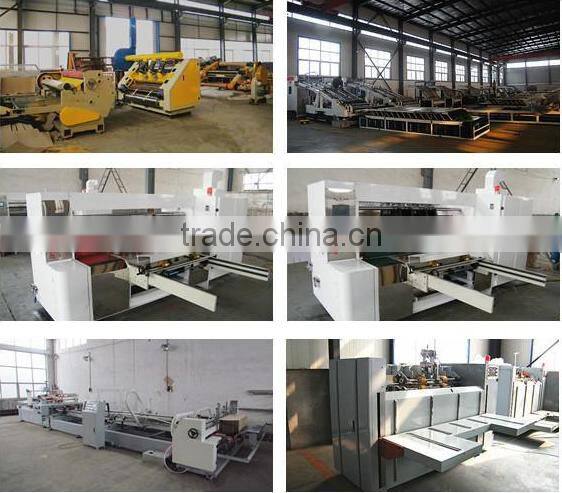

Cangzhou XiaoYuan carton machinery co.,ltd, is a corrugated carton machine tradingcompany based in Hebei China, Established in 2015, Who integrates research, sale and service. We can provide you high quality machines for corrugated carton board producing, corrugated box making.Such as: automatic 1-4 colour printing machine, semi automatic printing machine, Rotary slotting machine, Rotary die cutting machine, laminator, single facer machine, BFYthin blade slitter scorer machine, gluing machine, stitching machine, corrugated carton production line and so on.Automatic machines or semi automatic machines. We have stable cooperative factory and senior technicians. Which guarantees we can produce the first class corrugated carton equipments, The professional sales team and aftersale service team can supply the reasonable price and best after-sale service to our new and old customers.
Our company always adhere to the"quality first, credibility first"business philosophy, and from time to time to seize the opportunity, deepen the reform, innovation, the quality of our products to the international road to higher quality, better prices and more comprehensive after-sales service, to reciprocate the trust of old and new friends from all walks of life.
Our Company has full mechanical equipment, high degree of specialization, more manufacturing experience, has strong technical strength, advanced detection methods, complete management system, we are a rising star in carton printing machinery industry, and We will introduce you best suitable machines with our most professional sevices to our good friends.
1. Our technician need to test the machine working condition before delivery to customer country.
2. If needed, we also can send our engineers to your country to teach you how to intall and operate the machine.
3. Our machine has one year guarantee period, during this period, if problems caused by our machine quality, we will change all parts for you by free fee.
4.If any questions,welcome to send me email by 24 hours, we will try our best to help you solve these problems.
