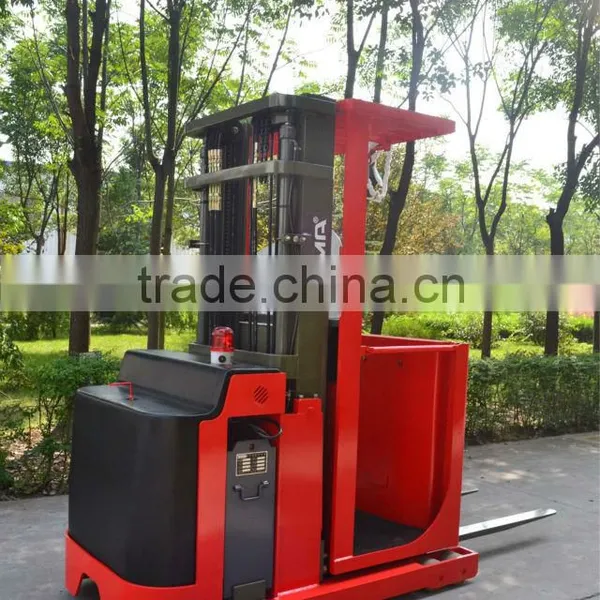

Stock Picker THA

Stock Picker THA thumbnail-1
Stock Picker THA photo-1
US$ 1,000 - 30,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
MIMA
Model Number:
THA10
Contact Supplier Request Quote Chat Now
Hefei Banyitong Science & Technology Developing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name MIMA
Model Number THA10
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Stock picker ,THA model;
load capacity:1000kg,lift height:4500mm;
AC driving motor;

Stock Picker,THA series;

THA10 series;

1. The cover board with direction display, easy to know the driving direction even in high-order position;
2. The Vehicle have driving alram,and safety belt, to ensure the safe driving;
3. Mast Buffering function;
4. The high level order picker including automatic high level order picker and semi-automatic high level order picker;
5. THA Series High level order picker, rated load capacity: 1000kg, max lift height:4500mm
6. With driving direction display, easy to know the direction even in high level;
7. With driving alarm and safety belt;
8. Mast with buffering function.

Descriptiom
Model No.
THA1030
THA1040
THA1045
Operation Type
Stand-on
Stand-on
Stand-on
Rated Load Capacity (KG)
1000
8000
600
Load center MM
450
Max Lift Height (mm)--H
3000
4000
45000
Min. Road Clearance- Fork(mm)--H
35
35
35
Max./Min.Height-Operation Compartment (mm)--H1
3205/215
4205/215
4705/215
Max./Min.Height-Overhead Guard (mm)--H2
5237/2247
6237/2247
6737/2247
Height-Mast Lowered (mm)-H3
2260
2760
3010
Height-Mast Extended (mm)-H4
3745
4745
5245
Min. Road Clearance (mm)-H5
30
Overall Length (mm)--L
2536
Front Wheelbase (mm)--L1
1235
Rear Wheelbase (mm)--L2
160
Length-Fork (mm)-L3
930
Overall Width (mm)--W
1080
Rear Tread (mm)--W1
942
Fork Width-Outer (mm)--W2
700
Fork Width-Inner (mm) --W3
600
Min Turning Radius (mm)-Ra
1440
Wheel Type
PU
Wheel Size-Drive (mm)
230*83.5
Rear Wheel(mm)
150*90
Banalce Wheel-(mm)
150*50
Travel Speed-Laden/Unladen-(km/h)
4/4.8
4/4.8
4/4.8
Lift Speed-Unladen-(mm/s)
100
100
100
Descent Speed-Unladen-(mm/s)
70-97
Gradeability-Laden/Unladen-%
/
Driving Motor (KW)
AC1.1
AC1.1
AC1.1
Lifting Motor (KW)
3
3
3
Steering Motor (KW)
0.75
0.75
0.75
Battery-V/AH
24/480
24/480
24/480
Charger V/A
24/70
24/70
24/70
Service Weight (with battery) KG
2340
2440
2490



Stock Picker THAStock Picker THAStock Picker THA
