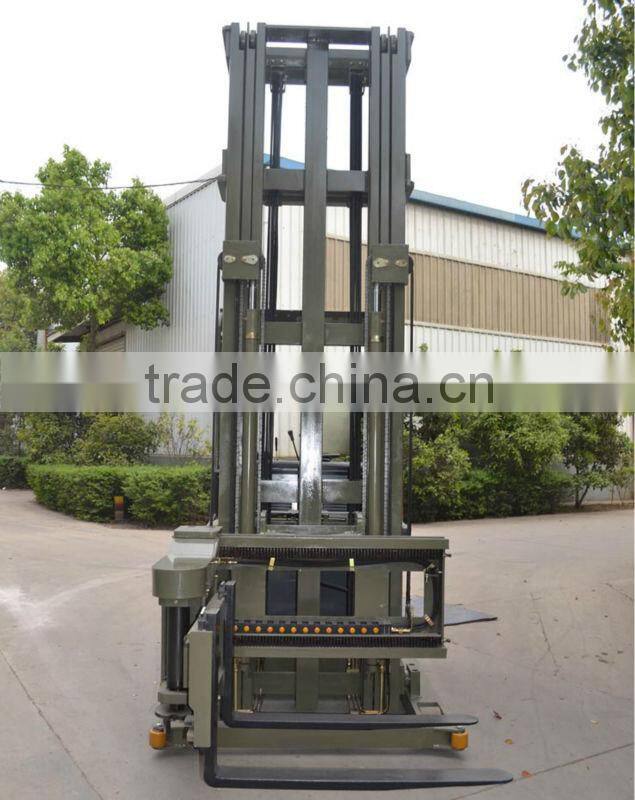

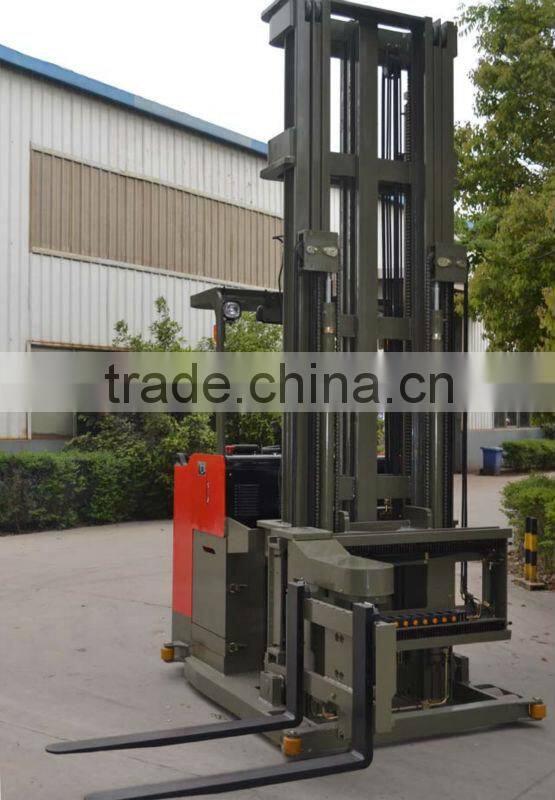

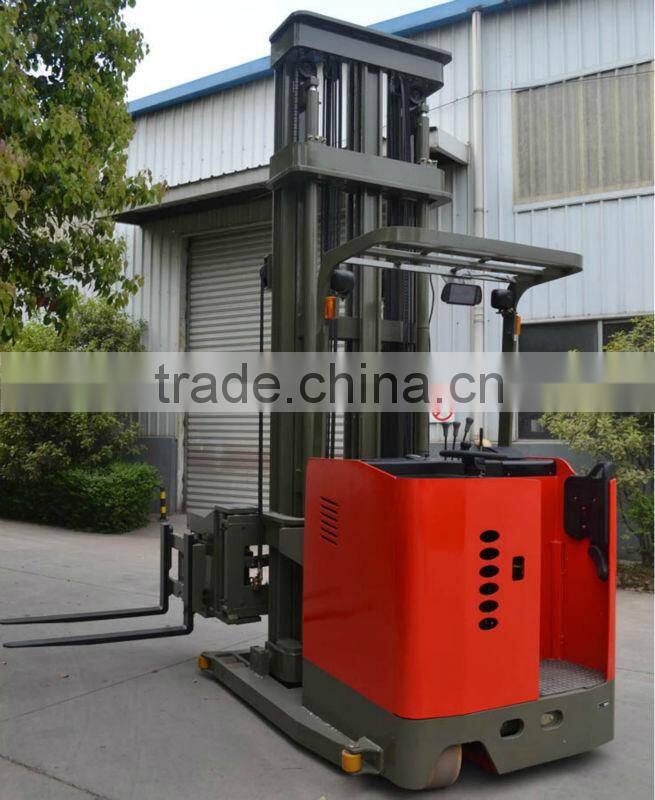

3-way narrow aisle forklift with CE TC series

Specifications

VNA Forklift; TC
AC driving motor;
1T load capacity,7500mm lift height
with advanced electric turret head

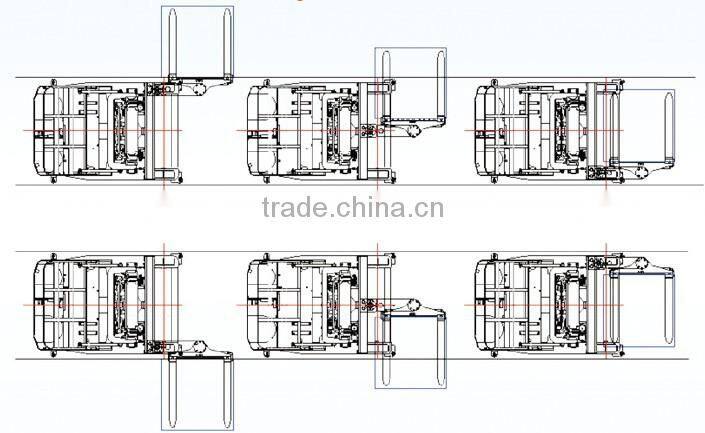

1. With full hydraulic power steering system,using mechanical brake and electromagnetic regenerative brake to let fork turning 180  degree,move left or right by multiway  vavle;

2. Rear axle locking device: to enhance the safety when fork lifting and side moving,to ensure the frame more stable during side stacking;

3. Mast Soft landing & shock absorption mast;the Speed at which the forks are lowered is reduced just Before the forks reach the ground  (soft lading function),It’s can reduce the sound and shock experienced when the forks are lowered;

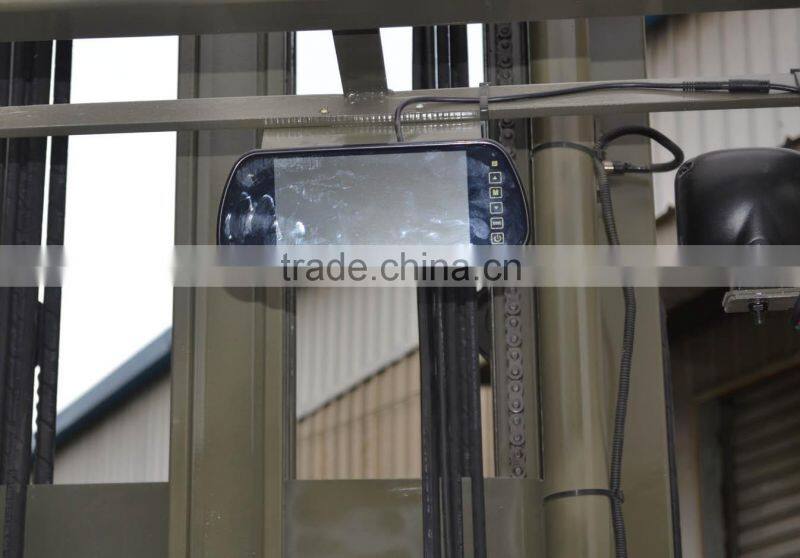

4.With fork HD display and drive wheel display,non-blind area,make it smoothest and easiest to use in the business;

5. With German Krupp Chanel steel,to ensure have high-strength and durable structure mast;

Rated load capacity: 1000kg, lift height: 7500mm;The min. width of aisle is 1510mm;



Model No.	TC10-75
Rated Capacity (KG)	1000kg at 6000mm,750kg at 6000-7500mm
Load Dimensions ---mm	1250*1250
Operate Type	Stand-on
Max. Lifting Height (MM)	7500
Min. Turning Radius (MM)	1880
Min. Stacking Aisle ---mm (1000*1000 Pallet)	1480
Max Travel Speed km/h-laden/unladen	7.0/8.0
Load center MM	500
Fork Dimensions -L/W/T---mm	1070*100*35
Shift Stroke (1000/1100mm pallet)--mm	1060/1160
Lifting Speed (MM/S)-laden/unladen	180/315
Rotating Speed of forks---s/180o	12
Shift Speed ---mm/s	240
Overall Length (MM)	3454
Overall Width (MM)	1450
Height-Overhead guard--mm	2320
Height---Mast Lowered(MM)	3750
Height-Mast Extended w/ Load-Backrest -mm	8525
Fork Spread Range(MM)	260-820
Min Ground Clearance--mm	40
Max. Gradeability ---%	10
Wheel Type	Polyurethane Solid Tyre
Driving Wheel (MM)	Φ343×108
Balance Wheel (MM)	Φ180×76
Front Wheel (MM)	Φ140×100
Battery V/AH- Domestic BRAND	48V /300 AH
Service Brake	Mech.
Parking Brake	Mech.
Charger-Intelligent	48V /50 A
Driving Motor (KW)	5.5 (AC)
Lifting Motor (KW)	7.5



  ISO9001 Certificate;



If you have any requirements or suggestion on that,pls don't hesitate to contact with us.
