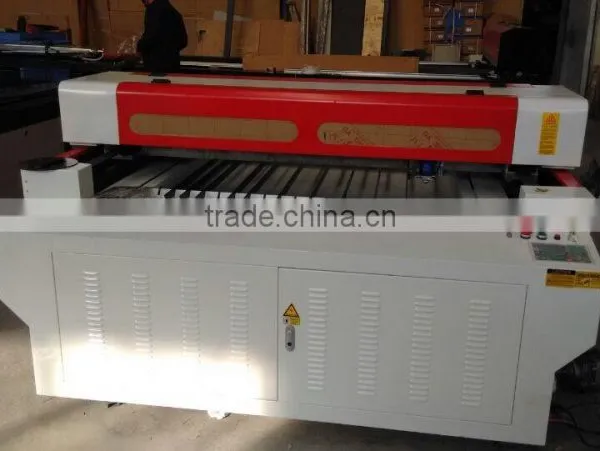

Metal and non-metal Laser Cutting Machine
Specification
1. Laser cutting bed, suitable for large size nonmetal materials processing.
2. Leadshine stepper motor.
3. RECI brand laser tube---80W, 100W, 150W, which is very good for cutting work.
4. Imported focus lens and reflecting mirrors.
5 HIWIN Linear Rail, durable rubber belt, which can assure high cutting precision.
DW-1325 Advantages
1)The best small power laser cutting bed in China, the world has delivered 100 sets
in stable operation.
2)600°C heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate argon
shielded arc welding, to make sure 20 years usage without deformation.
3)Adopting United States imported sensor, precise laser cutting head,
can cut metal and non-metal materials.
4)Stable cutting 1.5mm small circle. It can cut stainless steel, carbon steel, galvanized steel,
acrylic, wood and other materials.
5)Used a variety of precision parts and accessories,
ensure the stable operation of the laser machine.
6)Small power laser industry the only USES five big laser tube detection process:
a. spot test; B. power test; C. life test. D. air pressure test; E. open circuit test.
Application
Stainless steel,carbon steel,galvanized plate,cutter templates,wood sheet,acrylic,organic glass,MDF,leather,composite material.
Techinical Parameter
| laser output power | Domestic150W, optional 200W/300W |
| X-axis travel-length | 1250mm |
| Y-axis travel-length | 2500mm |
| Psitioning precision | ±0.05mm/s |
| Controling system | Movement control card /NC |
| Transmission system | Ball screw & linear guide |
| Max.speed of moving | 10m/min |
| Driving system | 3 Axial servo |
| Optical system | Semi-optical |
| Moving structure | Gantry |
| Chiller system | Special chiller system for importen laser tube |
| Overall dimensions | 4200mm*2100mm*1400mm |
| Weight | 2000kg |
| Structure | Open |
| Power supply | 380V/50HZ/30A |
material |
thickness |
speed |
|
Stainless steel |
0.5mm |
40mm/s
|
1.0mm |
20-30mm/s
|
|
1.5mm |
15mm/s
|
|
|
Carbon steel |
1.0mm |
20-30mm/s |
1.5mm |
15mm/s |
Machine Parts
DW-1325 laser machine laser head
RDC 6332g control card and Driver
Working table:Knife platform
RDC6332g control panel in english
Reci glass laser tube and power supply
Packing & Shipping
Service
1. One year quality guaranty, the machine with main parts
After-sale Service:
a) Technical support online service provided
b) Technical files service provided.
c) On-site training service provided.
d) Spare parts replacement and repair service provided.
(excluding the consumables).shall be changed free of charge when if any problem during the warranty period.
Working Sample
Laser machine using attention
(1) Before working must open the industrial chiller and add pure water.
(2) The working temperature will up 5°C, avoid water freezes, frost crack the laser tube.
(3) When the machine is working, it is strictly prohibited to lean into the work area. Avoid burns.
(4) Machine must be keep flat avoid tilt.
