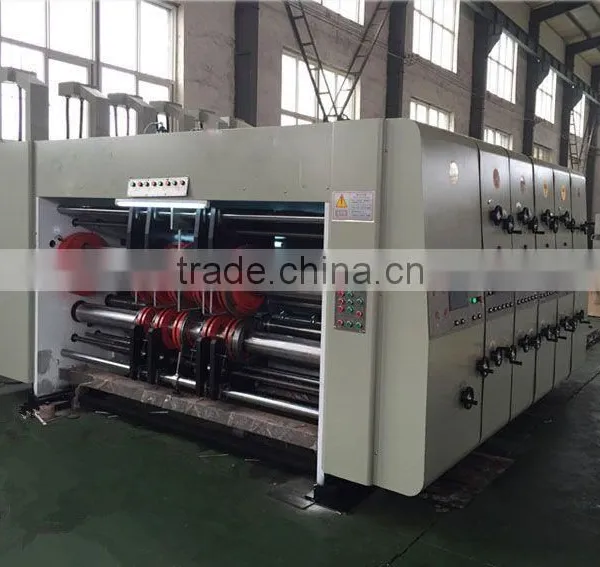

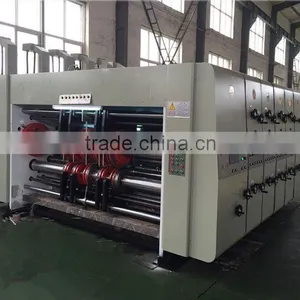

Help CenterHigh Speed Flexo 4colors Printing and Slotting and Rotary Die-cutting Machine
Related Products
-
Full Automatic High Speed Flexo Ink Prirnter Slotter Die Cuttemachine, Packaging for Corrugated Carton BoxUS$ 40,000 - 180,000MOQ: 1 Set -
Chinese Famous Brand Prirnter Slotter Die Cutter Machine for Carton BoxUS$ 40,000 - 180,000MOQ: 1 Set
-
Fully Automatic High Speed Flexo Printing Machine With Slotting and Rotary Die-cuttingUS$ 40,000 - 180,000MOQ: 1 Set
-
Good Price Flexo Printer Slotter Die Cutter MachineUS$ 40,000 - 180,000MOQ: 1 Set
-
Automatic Corrugated Paper Prirnting Slotting Die Cutting MachineUS$ 40,000 - 180,000MOQ: 1 Set
Specifications:
Full auto printing & slotting & die -cutting machine
High Speed Full Automatic Flexo Ink Printing Slotting Die Cutting Machine
Four parts :feeding department, printing department, slotting department, die-cutting department.
Front feeding paper part(automatic feeding)
1, Feed the leading edge positioning, frequency adjust the feed rate.
2. Adjustable air flow, increase warped cardboard and thin cardboard secure transmission, accuracy
3. Right and left side covers, a guide mechanism, the smooth displacement accuracy.
4. Clutch, pneumatic locking, safe and reliable.
5.The feed roller is seamless wear rubber wrapped and do balance correction.
6.Lower feed roller is seamless embossed hard chrome plating, balance correction.
7.Feed roll gap adjustment dial worm adjustment range 0-12mm, the use of cross-slider mechanism, when adjusted to ensure the correct transmission gear is always engaged state.
8.Computer adjustment device
1).Feed computer touch-screen human-machine interface adjustments.
Printing part
1.printing roller
1)Steel material, surface grinding, hard chrome plating.
2)Balance correction, smooth operation.
3) Type using thorns hanging version, convenient, reduce printing test print and scrap
2. printing press roller
1)Steel surface grinding, hard chrome plating.
2)Balance correction, smooth operation.
3)Between the printing press roller and the printing roll dial display, manual adjustment, the adjustment range 0-12mm, using rocker panels institutions, adjust the transmission gear is always to ensure the correct rodents state.
4)Steel surface using advanced hard chrome plating process, hard, smooth, wear-resistant.
5)When feeder with pneumatic lift net roller to prevent duplication inked plate and short downtime, network roll hole in the ink dry.
Rubber roller (optional 80% natural rubber high temperature refining, origin dongguang)
1)Seamless steel surface wear rubber wrapped by balance correction.
2)High special rubber roller grinding, good ink transfer effect.
3)Cots with overload device, can significantly extend the life of rubber roller.
Upper and lower feeding paper roller
1)Upper roller:with left and right adjustable feed roller
2)Lower roller :seamless, surface grinding, hard chrome plating.
3)Gap between the upper and lower feed rollers dial display, worm adjustment, the adjustment range 0-12mm, using the rocker panels connected, always adjusting the transmission gear teeth together to ensure the correct center distance.
4)Anilox roller
Thick-walled seamless steel pipe, through balance correction, surface grinding, coining
Identifies the mesh is, a group of 200, two groups 220,3 240,4 group 240 group
Phase adjustment
1), the differential planetary gear mechanism
2), the printing phase micro controller and electric digital 360 ° adjustment (the machine is running, stop can be adjusted)
3), the lateral position of the hand wheel adjustment.
Ink circulation
1), the use of pneumatic diaphragm pumps ink, ink stability, operation and maintenance simple.
2), the ink filter, filter impurities.
3), with automatic inking unit, the ink can be realized down stop function to prevent the shutdown of the ink dry.
4), the ink reservoir cup to prevent ink splashes and exhaust.
5), the automatic cleaning cycle and automatic ink.
Slotter portion (with creasing part)
1, manually adjust the slotted four knife sliding, moving quickly and easily.
2, synchronized manually adjust the knife and the knife before slotting size (box height).
3, the synchronization manually traverse, the slotted knife, under the slotted knife, paper knife and shave down pressure line round.
4, tooth grinding heat treated alloy steel slotted knife, a width of 5-7 mm.
5, heat treated alloy steel grinding trimming knife, sharp knife, high precision.
the circle of mold
1), using the slider up and down roller type, improved cutting accuracy, regardless of Urethane wear
2), Urethane high quality brands, increase the service life
3), the knife using a high-density, high-strength steel material enduring
4), the plastic shaft equipped with repair, a repair to continue to use worn
5), plus the plastic shaft clutch, die cutting with constant speed
Stacking unit (optional)
1, the choice of manual or operation.
2 bed units lift driven by strong chain.
3, the stack height is 1600mm.
4, flat wrinkles climbing belt, to prevent the cardboard decline.
5, when the pressure action bin baffle stacked in cardboard tray connected to the book highly extendable, hold the cardboard.
Six gear transmission
1), smooth operation, low noise, hardness HRC50-55, long life, wear a small, long-term guarantee the accuracy of printed chromatic unchanged.
2), the phase gear using 45 steel, quenched and tempered, high-frequency hardening, hobbing finishing, hardness HRC50-55.
7, lubrication
1), each unit with gear pump oil to achieve circular spray lubrication.
2), with the storage tank
Eight, the main technical parameters
1, the machine maximum mechanical speed: 100 (pcs / min)
2, the maximum feed size: 1250mm × 2400mm
3, the minimum feed size: 350mm (full version) × 800mm
4, the maximum printing area: 1250mm × 2400mm
5, the standard plate thickness: 4mm or 6mm
6, the printing precision: ≤ ± 0.75mm (four-color)
Die cutting part
1,This machine is exclusive equipment for die cutting and molding ,suitable for the manufacturing of colorful cantons, boxes and other package products of abnormal shape.
2,It adopts the double roller pressing and urethane soft template ;die cutting aped difference servo makes up the linear velocity automatically ,once completing the paperboard and the siding ,slotting ,punching ,creasing and folding of the corrugated paper of medium and small thickness.
3,The machine adopts the vacuum adsorption feeding facility ;the main machine adjusts the speed by electromagnetism and the die cutting phase by computer ,featuring high precision of die cutting ,high speed and convenient operation.
1. Our technician need to test the machine working condition before delivery to customer country.
2. If needed, we also can send our engineers to your country to teach you how to intall and operate the machine.
3. Our machine has one year guarantee period, during this period, if problems caused by our machine quality, we will change all parts for you by free fee.
4.If any questions,welcome to send me email by 24 hours, we will try our best to help you solve these problems.
Cangzhou XiaoYuan carton machinery co.,ltd, is a corrugated carton machine tradingcompany based in Hebei China, Established in 2015, Who integrates research, sale and service. We can provide you high quality machines for corrugated carton board producing, corrugated box making.Such as: automatic 1-4 colour printing machine, semi automatic printing machine, Rotary slotting machine, Rotary die cutting machine, laminator, single facer machine, BFYthin blade slitter scorer machine, gluing machine, stitching machine, corrugated carton production line and so on.Automatic machines or semi automatic machines. We have stable cooperative factory and senior technicians. Which guarantees we can produce the first class corrugated carton equipments, The professional sales team and aftersale service team can supply the reasonable price and best after-sale service to our new and old customers.
Our company always adhere to the"quality first, credibility first"business philosophy, and from time to time to seize the opportunity, deepen the reform, innovation, the quality of our products to the international road to higher quality, better prices and more comprehensive after-sales service, to reciprocate the trust of old and new friends from all walks of life.
Our Company has full mechanical equipment, high degree of specialization, more manufacturing experience, has strong technical strength, advanced detection methods, complete management system, we are a rising star in carton printing machinery industry, and We will introduce you best suitable machines with our most professional sevices to our good friends.
1. What the advantage of your company? Why choose your machine?
We have specialized in wholesaling carton box making machines for more than two years, We have stable cooperative factory,and senior technicians which guarantees we can offer the first class corrugated carton equipments.
2.How about the delivery time?
Normally delivery time will be within 30 days , complicated machine will be sent in 45days more or less.
3.How about the packing of products?
Tighten to container with steel wire rope and welded machine with container by angel iron B. Main corrugated box machines and un-coiler is packed with waterproof plastic) C. PLC contral system and motor pump are packed in wooden box with water proof paper coverage.
4. What is your machine Warranty period?
Our machine has one year guarantee period, during this period, if problems caused by our machine quality, we will change all parts for you by free fee.
Welcome to contact us at any time !
