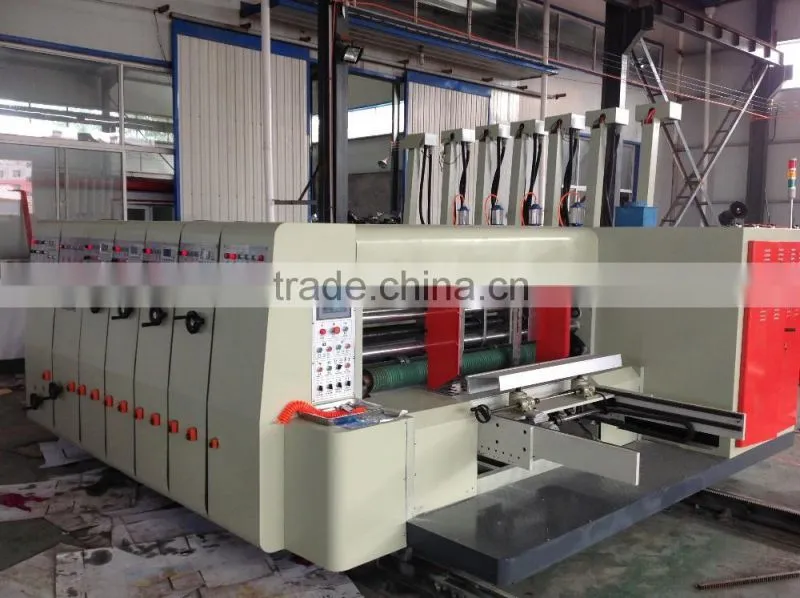

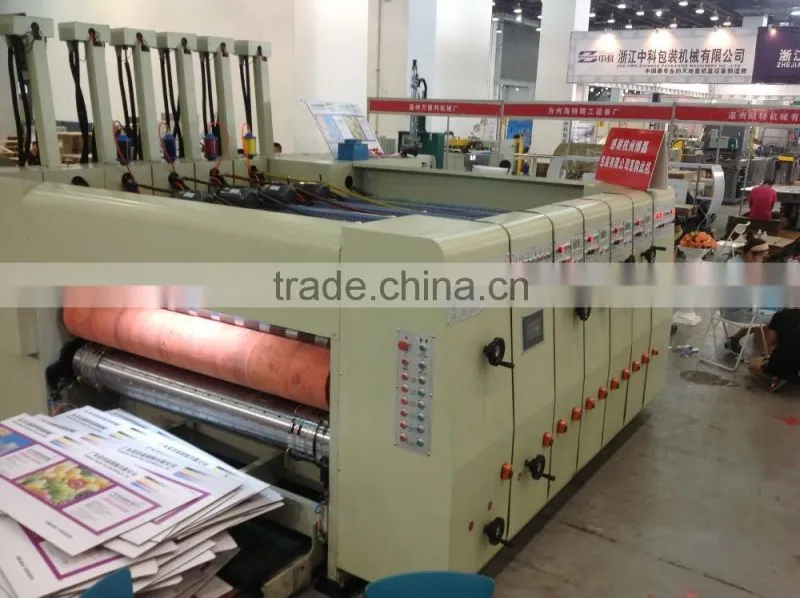

Fully automatic high speed flexo printing machine with slotting and rotary die-cutting

Specifications:

Fully automatic high speed flexo printing machine with slotting and rotary die-cutting

Lead edge feeding high speed flex printing and slotting and rotary die-cutting machine

 Four parts :feeding department, printing department, slotting department, die-cutting department.

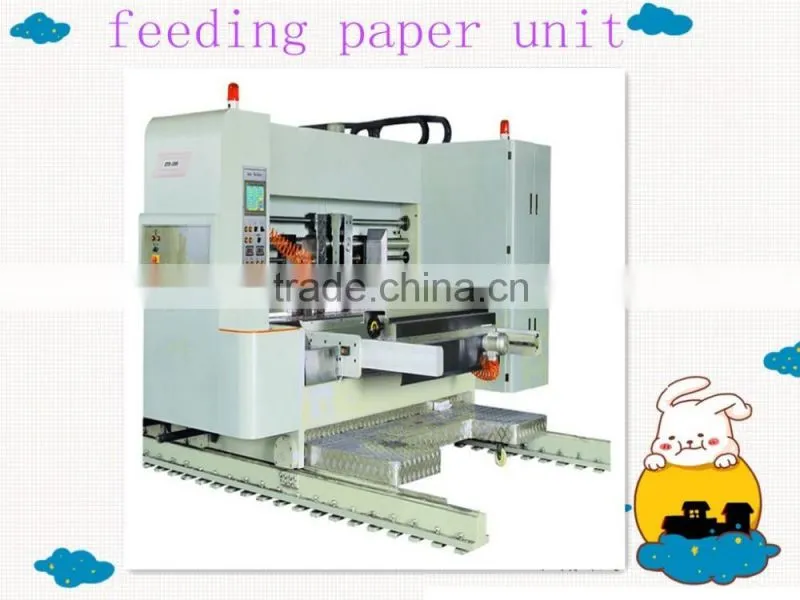

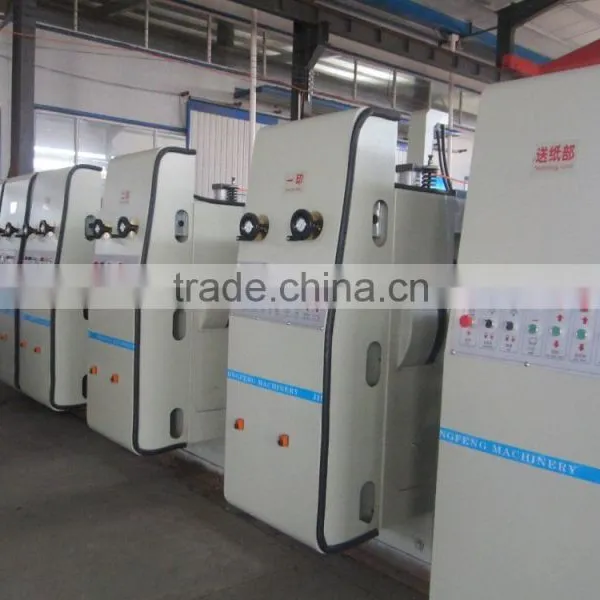

Front feeding paper part(automatic feeding)

1, Feed the leading edge positioning, frequency adjust the feed rate.

2. Adjustable air flow, increase warped cardboard and thin cardboard secure transmission, accuracy

3. Right and left side covers, a guide mechanism, the smooth displacement accuracy.

4. Clutch, pneumatic locking, safe and reliable.

5.The feed roller is seamless wear rubber wrapped and do balance correction.

6.Lower feed roller is seamless embossed hard chrome plating, balance correction.

7.Feed roll gap adjustment dial worm adjustment range 0-12mm, the use of cross-slider mechanism, when adjusted to ensure the correct transmission gear is always engaged state.

8.Computer adjustment device

1).Feed computer touch-screen human-machine interface adjustments.

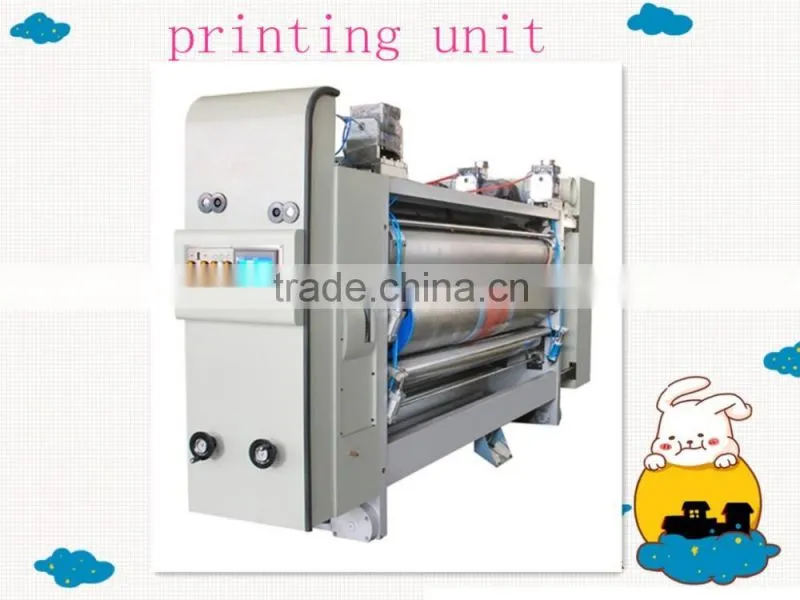

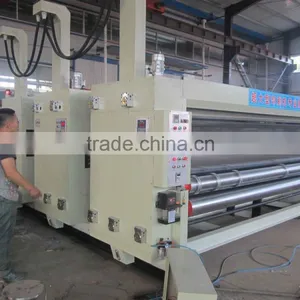

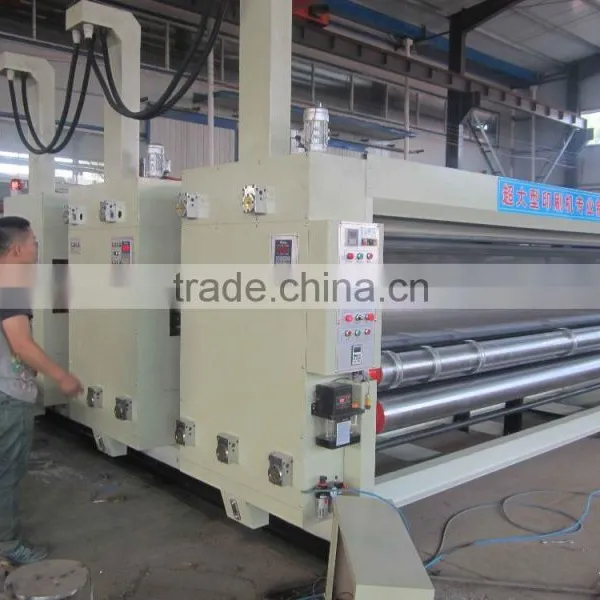

Printing part

1.printing roller

1)Steel material, surface grinding, hard chrome plating.

2)Balance correction, smooth operation.

3) Type using thorns hanging version, convenient, reduce printing test print and scrap

2. printing press roller

1)Steel surface grinding, hard chrome plating.

2)Balance correction, smooth operation.

3)Between the printing press roller and the printing roll dial display, manual adjustment, the adjustment range 0-12mm, using rocker panels institutions, adjust the transmission gear is always to ensure the correct rodents state.

4)Steel surface using advanced hard chrome plating process, hard, smooth, wear-resistant.

5)When feeder with pneumatic lift net roller to prevent duplication inked plate and short downtime, network roll hole in the ink dry.

Rubber roller (optional 80% natural rubber high temperature refining, origin dongguang)

1)Seamless steel surface wear rubber wrapped by balance correction.

2)High special rubber roller grinding, good ink transfer effect.

3)Cots with overload device, can significantly extend the life of rubber roller.

Upper and lower feeding paper roller

1)Upper roller:with left and right adjustable feed roller

2)Lower  roller :seamless, surface grinding, hard chrome plating.

3)Gap between the upper and lower feed rollers dial display, worm adjustment, the adjustment range 0-12mm, using the rocker panels connected, always adjusting the transmission gear teeth together to ensure the correct center distance.

4)Anilox roller

Thick-walled seamless steel pipe, through balance correction, surface grinding, coining

     Identifies the mesh is, a group of 200, two groups 220,3 240,4 group 240 group

Phase adjustment

1), the differential planetary gear mechanism

2), the printing phase micro controller and electric digital 360 ° adjustment (the machine is running, stop can be adjusted)

3), the lateral position of the hand wheel adjustment.

Ink circulation

1), the use of pneumatic diaphragm pumps ink, ink stability, operation and maintenance simple.

2), the ink filter, filter impurities.

3), with automatic inking unit, the ink can be realized down stop function to prevent the shutdown of the ink dry.

4), the ink reservoir cup to prevent ink splashes and exhaust.

5), the automatic cleaning cycle and automatic ink.

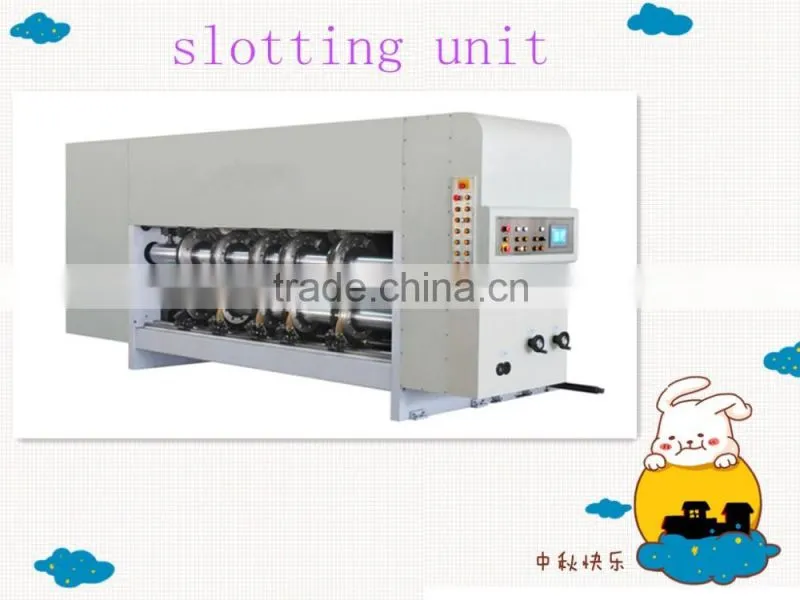

Slotter portion (with creasing part)

1, manually adjust the slotted four knife sliding, moving quickly and easily.

2, synchronized manually adjust the knife and the knife before slotting size (box height).

3, the synchronization manually traverse, the slotted knife, under the slotted knife, paper knife and shave down pressure line round.

4, tooth grinding heat treated alloy steel slotted knife, a width of 5-7 mm.

5, heat treated alloy steel grinding trimming knife, sharp knife, high precision.

 the circle of mold

1), using the slider up and down roller type, improved cutting accuracy, regardless of Urethane wear

2), Urethane high quality brands, increase the service life

3), the knife using a high-density, high-strength steel material enduring

4), the plastic shaft equipped with repair, a repair to continue to use worn

5), plus the plastic shaft clutch, die cutting with constant speed

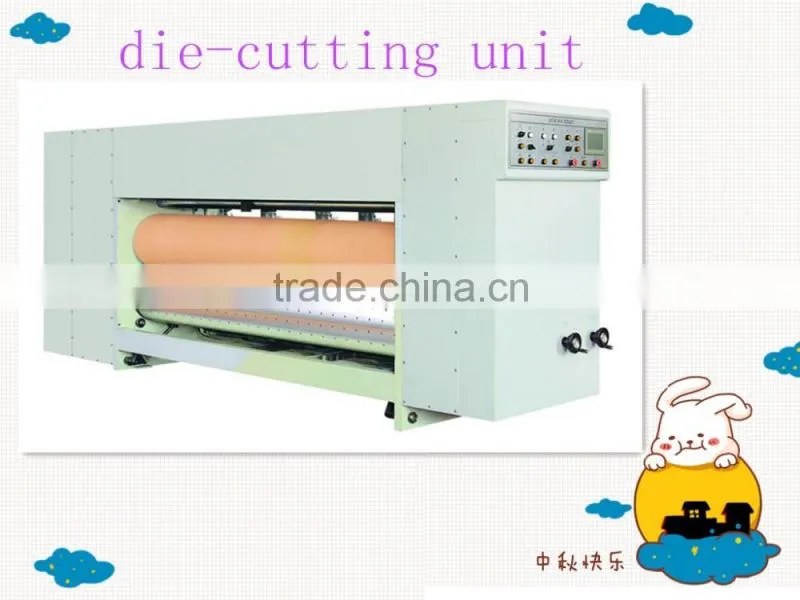

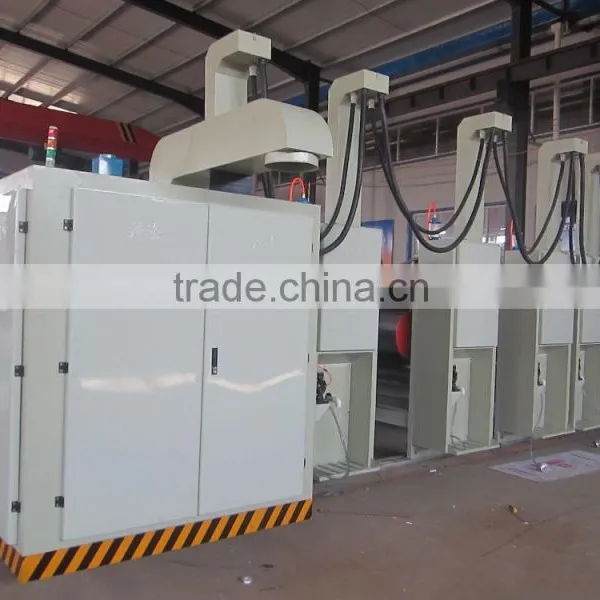

Die cutting part

1,This machine is exclusive equipment for die cutting and molding ,suitable for the manufacturing of colorful cantons, boxes and other package products of abnormal shape.

2,It adopts the double roller pressing and urethane soft template ;die cutting aped difference servo makes up the linear velocity automatically ,once completing the paperboard and the siding ,slotting ,punching ,creasing and folding of the corrugated paper of medium and small thickness.

3,The machine adopts the vacuum adsorption feeding facility ;the main machine adjusts the speed by electromagnetism and the die cutting phase by computer ,featuring high precision of die cutting ,high speed and convenient operation.

Stacking unit (optional)

1, the choice of manual or operation.

2 bed units lift driven by strong chain.

3, the stack height is 1600mm.

4, flat wrinkles climbing belt, to prevent the cardboard decline.

5, when the pressure action bin baffle stacked in cardboard tray connected to the book highly extendable, hold the cardboard.

Six gear transmission

1), smooth operation, low noise, hardness HRC50-55, long life, wear a small, long-term guarantee the accuracy of printed chromatic unchanged.

2), the phase gear using 45 steel, quenched and tempered, high-frequency hardening, hobbing finishing, hardness HRC50-55.

7, lubrication

1), each unit with gear pump oil to achieve circular spray lubrication.

2), with the storage tank

Eight, the main technical parameters

1, the machine maximum mechanical speed: 100 (pcs / min)

2, the maximum feed size: 1250mm × 2400mm

3, the minimum feed size: 350mm (full version) × 800mm

4, the maximum printing area: 1250mm × 2400mm

5, the standard plate thickness: 4mm or 6mm

6, the printing precision: ≤ ± 0.75mm (four-color)

1. Our technician need to test the machine working condition before delivery to customer country.

2. If needed, we also can send our engineers to your country to teach you how to intall and operate the machine.

3. Our machine has one year guarantee period, during this period, if problems caused by our machine quality, we will change all parts for you by free fee.

4.If any questions,welcome to send me email by 24 hours, we will try our best to help you solve these problems.
