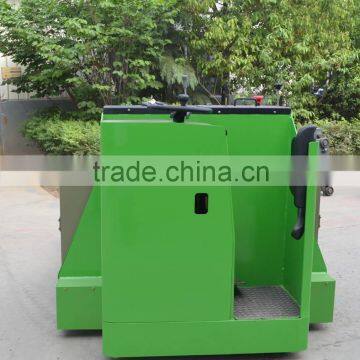

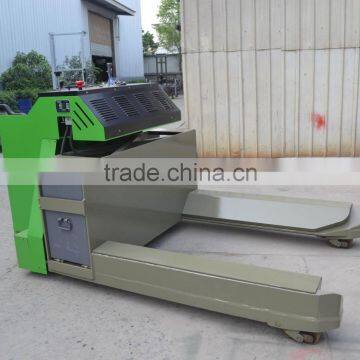

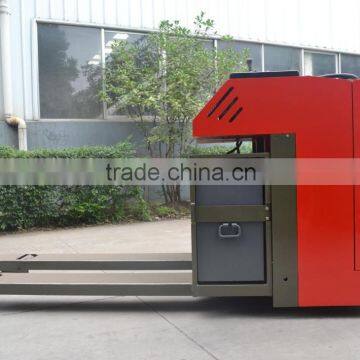

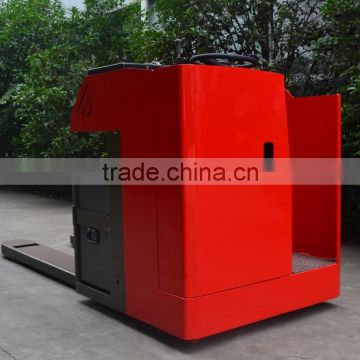

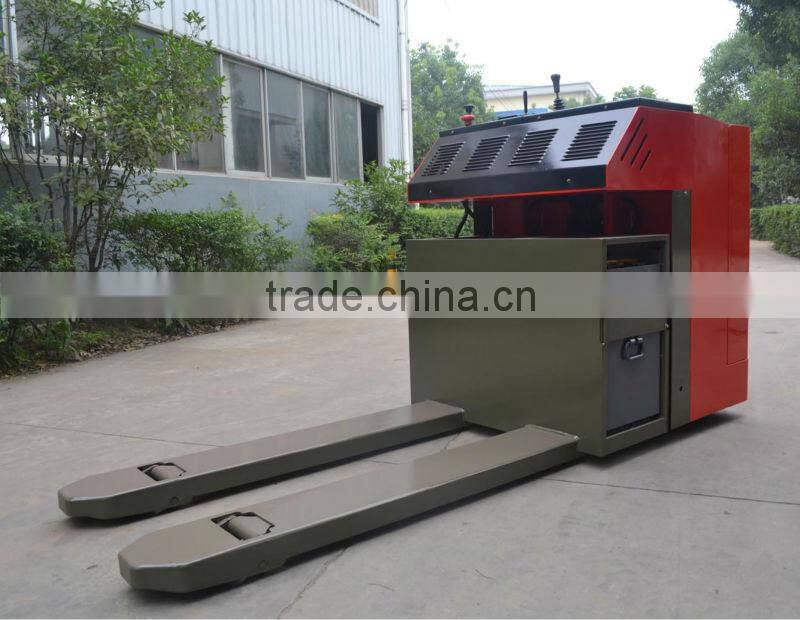

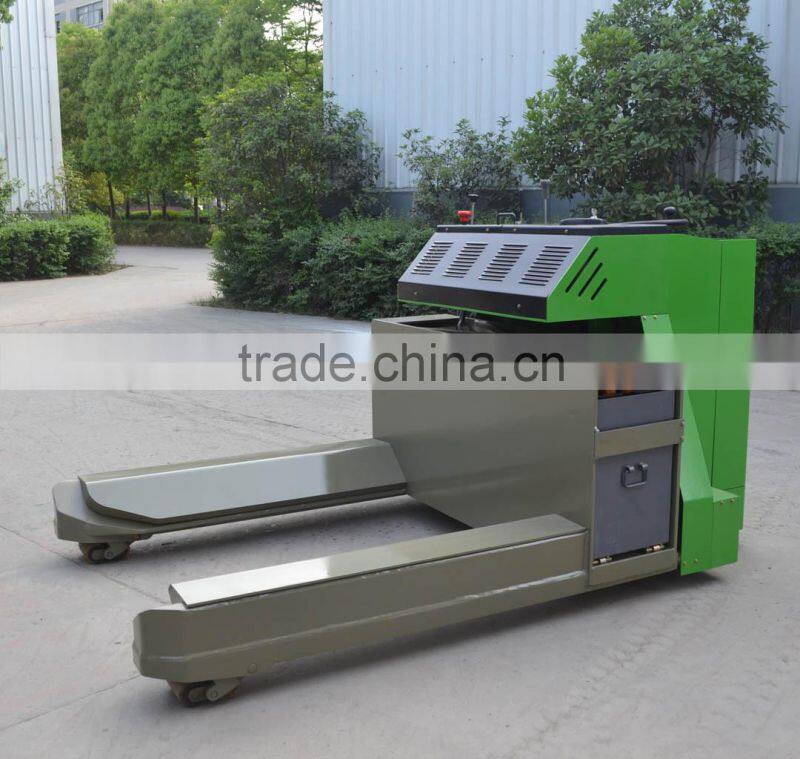

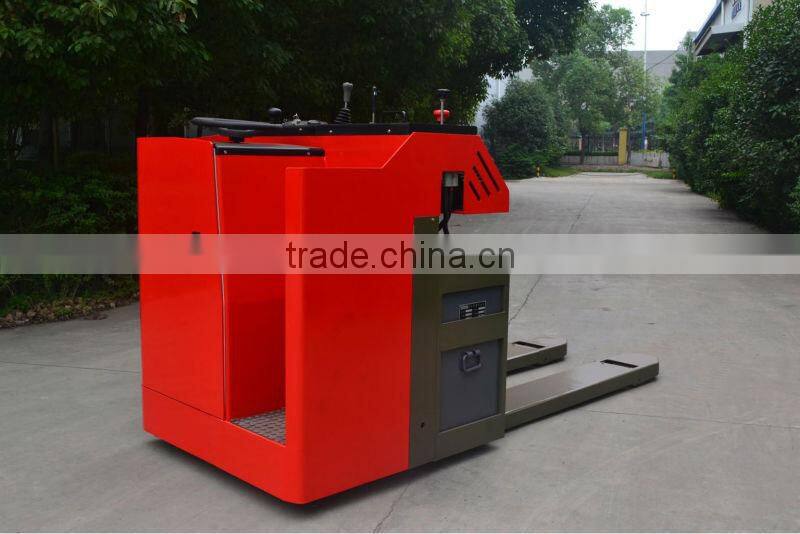

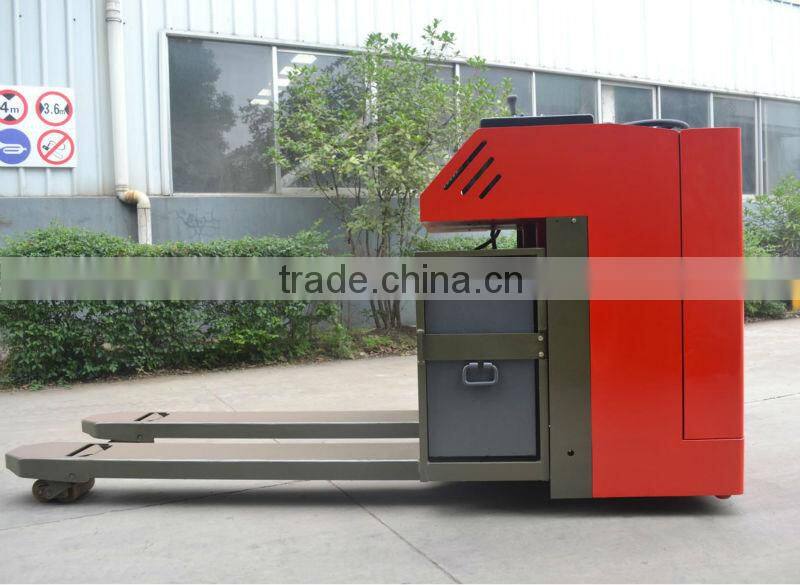

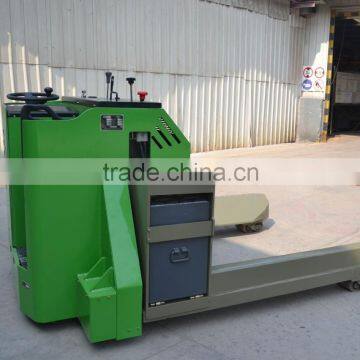

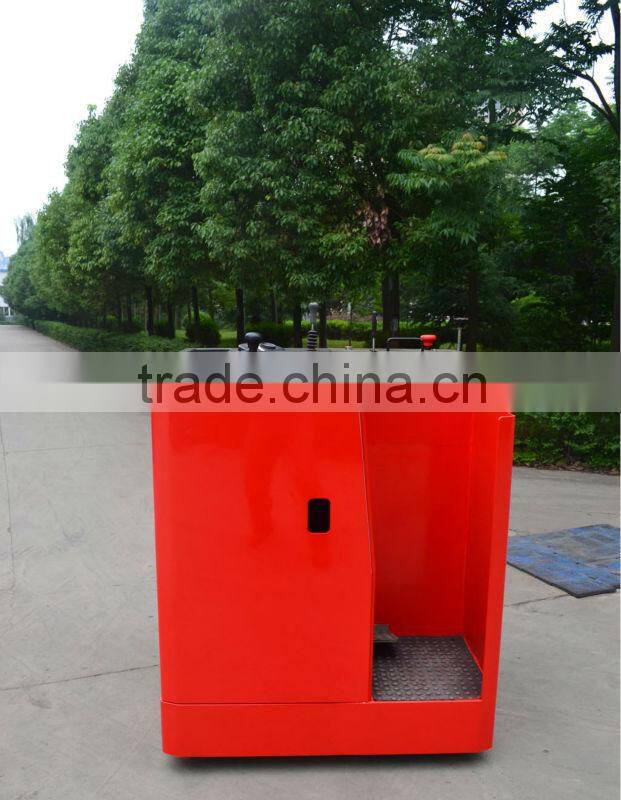

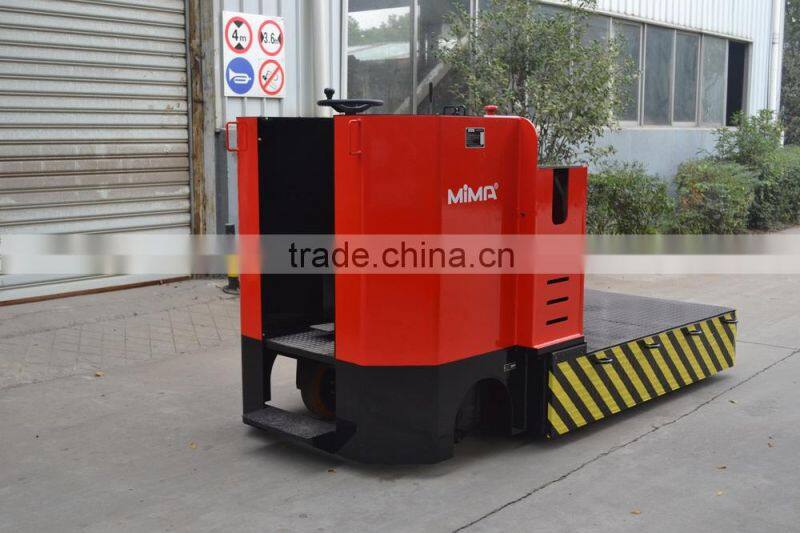

MIMA customized 6000kg pallet truck with special fork for cable industry TE series ;
The rated load capacity is 5000-6000kg, also it can be changed according to special enviroments, it's very popular in heavy-duty industry for material handling solution;
Main Features
1) stand-on operation;
2) hydraulic power-assisted steering system;
3) with large capacity battery;
4) High-strength frame design, suitable for tough workplaces, ensures longer service life;
Emergency plug mounted at up-right side on truck frame, all power can be cut off by simply pulling emergency plug and the truck stops;
5) Excellent performance of getting in and out of empty pallet, greatly increases the operation efficiency;
5) Special pallet truck can be customized according to customer' requirements;
| DESCRIPTION MODEL NO. |
TE60 | ||
| Standard | Power Type | Battery | |
| Operate Type | Stand-on | ||
| Rated Capacity | Q(kg) | 6000 | |
| Load center | C(mm) | 600 | |
| T & y R r I e m |
Wheel Type-Front/Rear | polyurethane tire | |
| Front Wheel | φ85×145 | ||
| Drive wheel | φ343×108 | ||
| swivel caster | φ125×50 | ||
| Tyres No. -front/rear (X=Drive wheel) | 4 /1X +2 | ||
| Overall Height | h1(mm) | 1375 | |
| Fork Lift Height | h2(mm) | 115 | |
| Fork Min Ground Clearance | h3(mm) | 100 | |
| Overall Length -pdeal extended/closed | L1(mm) | 2215 | |
| Wheel Base | y(mm) | 1845 | |
| Bearing Distance | x(mm) | 954 | |
| Fork Dimensions | mm | 1200*235*86 | |
| Overall Width | b1(mm) | 1012 | |
| Outer width of forks | b2(mm) | 715 | |
| Inner width of forks | b3(mm) | 245 | |
| Tread Front/rear | b4/b5(mm) | 480 / 480 | |
| Trurning radius-Pedal extended /closed | Wa(mm) | 2100 | |
| Aisle width for pallet 1200*1000 | Ast(mm) | 2828 | |
| Aisle width for pallet 800*1200 | Ast(mm) | 2735 | |
| Function | Travel Speed -laden/unladen | km/h | 7/8 |
| Lift Speed -laden/unladen | mm/s | 41 / 54 | |
| Lowering speed -laden/unladen | mm/s | 54 / 45 | |
| Gradeability -laden/unladen | % | 6 / 8 | |
| P o w e r |
Drive Motor type | DC | |
| Driving Motor (S2 60) | kw | 4 | |
| Lift motor type | DC | ||
| Lift Motor (S3 15%) | kw | 6.3 | |
| Battery V/AH | V/AH | 48/300 | |
| Weight | Battery | kg | 539 |
| Service Weight | kg | 1580 | |
| Steering | Steering type | Hydraulic | |
| Parking brake type | Electromagnetic |
||
Standard packing: nude packing,wrapped by polybag;
1. 12 months warranty;
2. over-seas after-sale service if necessary;
Hefei Banyitong Science & Technology Developing Co., Ltd, established in 1994, we are professional manufacturer in material handling equipments and special logistic equipment, our brand "MIMA" have 12 series and 50 models according to long-time technology innovating and patent collection, including battery pallet truck, electric pallet stacker, reach truck, counterbalance forklift, electric tow tracotr, order picker, 4-directional forklifts, side-loading forklift and special logistic equipments, there are extensive used in Pharmaceutical, foodstuff, Chemical Industry, electronics Industry, Machinery Industry, Furniture,logistic industries etc;
