Specifications
flat bed die cutting machine1.CE,FDA
2.Leetro6515 or 6535 or Ruida
3.Hi-win square guide
4.Reci laser tube
flat bed die cutting machine
1.Total introduce of flat bed die cutting machine |
|
Working area :1600*3000mm Guide:Hiwin square guide from Taiwan Control system:Leetro 6515 or Leetro 6535 and Ruida Mirror and Lens:metal refector with high reflectivity Laser head:Long life-span laser head Industry chiller:CW-5200.CW-5000,CW-3000,Sunshine |

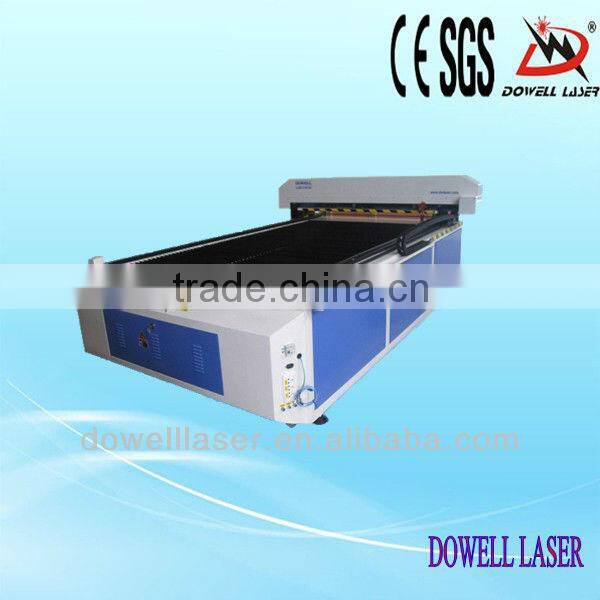

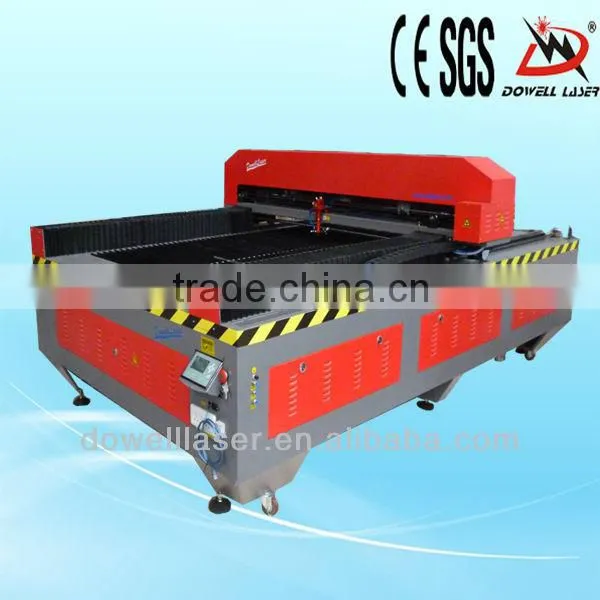

2.picture of advertising flat bed die cutting machine |
|
1. Motor and Drive:Stepping motor and drive system(Servo motor for option) 2. Control system:LASER CUT5.3/RD320 3. Double transmisson model:industrial port,USB port 4. Chinese LCD display, humanization key control panel 5. Laser tube:Domestic laser tube(60w,80w) or Reci 80w,100w,130w,150w for option 6. Optics system:Singapore importing laser lens and mirrors 7. Honeycomb platform:High strength stainless iron honeycomb platform |
| 3.flat bed die cutting machine technical Parameter | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

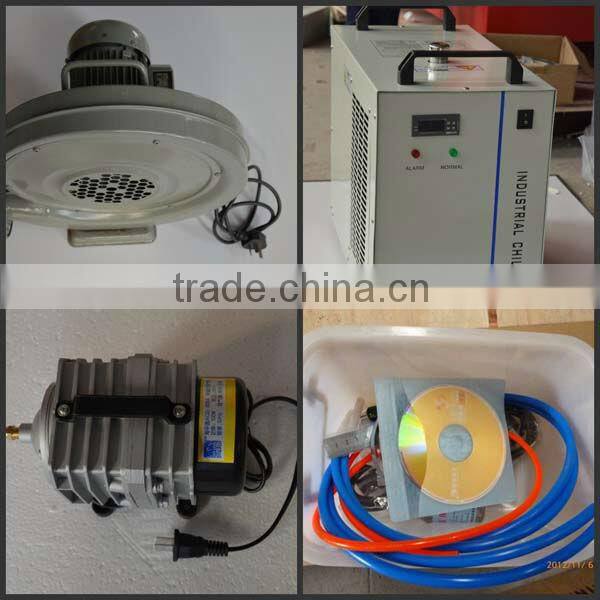

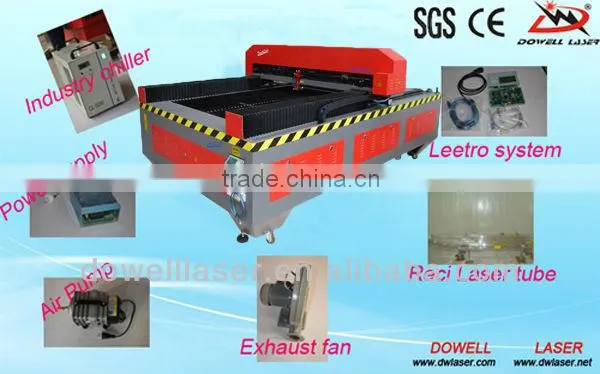

| 4.Standard configuration of flat bed die cutting machine |
|
1) Complete machine:Perfect out-look, small dimension, adopt DSP system, could be work in office/store/house,hot sales equipment. 2) Worktable:Adopt AL blades worktable, platform size 1600*3000mm, clearance on the platform for sucking smoking. 3) Control system/Driver:High stability control card & driver, adopt DSP control way, support 3h/ 2h stepper motor,high engraving speed with good quality, support *cdr,*dxf,*ai,*plt,*bmp format files. 4) Cooling system: CW-3000 or 5000 or 5200 or Sunrise 5) Exhaust fan: Sucking smoke, power 550w,voltage 220-240v,frequency 50HZ or 60HZ 6) Air pump: Blow air ,air pipe on the laser head. Avoid burning& keep lens clearly.
|
| 5.flat bed die cutting machine cutting samples |
|
|
| 6.Certafication of Dowell company |
|
....
