Specifications
double head laser cutting flat bed1 RECI laser tube
2.CW5200 industrial water chiller
3..Stable stepper motor

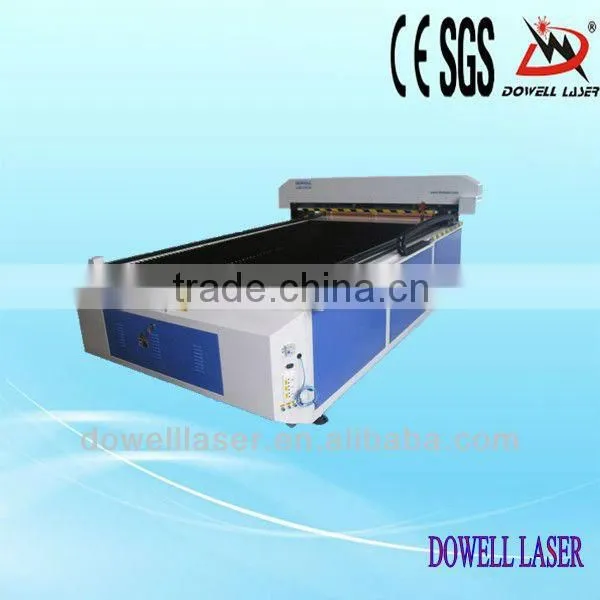

double head laser cutting flat bed
Characteristics
1. The imported beeline lead rail, imported stepper engine with the lower speed running structure, the engraving is very stable.
2. High intention, high precision mechanic structure design, the data control is stable.
3. Choose high technical laser tube, the beam of light is of high quality and the life is long.
4. Input the American imported focusing lens and mental condensing lens, the cutting strength is high.
5. Co figurate the industrial water cooling system with protection, the continuum work ability is stable.
6. The compatibility of the software is good, which can support the format of PLT, BMP, DXF etc
Product Parameter
Machine Performance: | |
Laser-type |
Hermetic and detached CO2 laser tube |
Laser-power |
80W (60w,100W,150w,180w,200w for option) |
Cooling Mode |
Circulating-water-cooling |
Power Adjustment |
0-100% controlling, no segment and adjusting by software |
Machine Control and Drive |
Speedy DSP controlling, stepper motor |
Max Cutting Speed |
800mm/s |
Max engraving Speed |
1000mm/s |
Repeating Location |
±0.01mm |
Minimum Character |
Chinese character 1.5mm, crisscross-row 1mm |
Max Power |
<1500W |
Adjustable Up-down Distance of Laser Head |
30mm |
Table Area |
as the machine |
Up-down Range of Working Table |
Mechanical 150mm-360mm |
Working Voltage |
AC110V-220V 50Hz-60Hz |
Working Environment |
Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed |
Controlling Software Language |
English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Dictate Format |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD,CoreDraw direct outputting |
Packaging |
Wooden box |
Machine Color |
grey/white grey/red white/grey white/black |
Delivery Time |
7-15 working days |
Payment |
T/T, escrow |
|
Laser cutting machine Standard accessories with machine |
1. English User manual of machine 2. English control system and panel, Leetro 6515. 3. CO2 laser tube 4. 3 reflecting mirrors, 1 focus lens 5. water pump 6. Air exhaust fan 7. Air pump 8. Communication cable 9. USB cable 10. Red dot pointer |
|
Optional parts for laser cutting machine
|
1. An extra laser tube (Laser tube is consumable, warranty is 8000 working hours.) 2. Motorized up and down platform(Cut or engrave more thick materials) 3. Rotary attachment (Cut or engrave cylindric materials) 4. Leetro 6535 control card 5. Servo motor,imported from Japan 6. CW 3000/5000/5200 water chiller(Cooling performance better than water pump) 7. Auto-feeding device( For fabric, leather and more longer materials cut and engrave) 8.Auto-focus device |

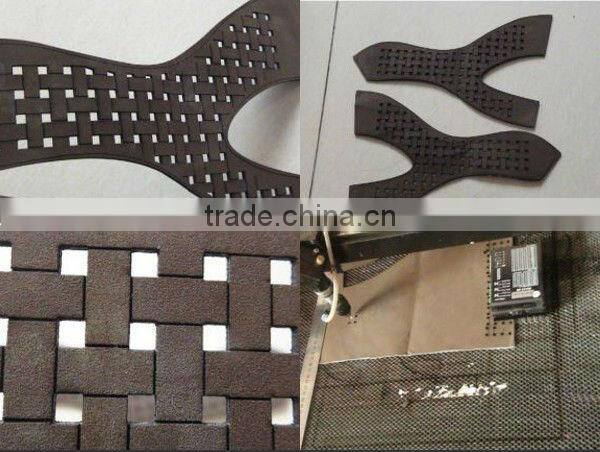

Applicable materials
Wood, bamboo, jade, ceramic, textile, garments, crystal, plastic, Color plates, plexiglass, glass, acrylic, wood, paper, leather, cloth, rubber, marble, granite, tiles, shells and other non-metallic materials.
Applicable industries
Plastic and rubber industry, ads/crafts/presents industry. Strumpet/machine componnents, leather cloth industry. Advertising logo signs, gifts, crystal ornaments, paper cutting techniques, relief, wood carving Jane. Printing plate, leather clothing, embroidery, decoration, frame making and other industries
After-sale Service
l 24 hours professional technology support by mail and MSN, Skype, Yahoo online.
l User friendly English manual and Video CD for machine operation and maintain.
Our company
We have over more than 10 years production history and strong R&D marketing system. DW-CNC is specialized in producing and exporting Engraving Machine, Laser Machine, Plasma Machine, Cutting Plotter and Marking Machine.
