Laser Generator |
Hermetic and detached CO2 laser tube |
Laser Power |
60w /80w /100w/150w/180w |
Work area |
1300*900mm |
Positioning Precision |
±0.01mm |
Cooling Mode |
Circulating-water-cooling |
Machine Control and Drive |
Speedy DSP controlling, stepper motor |
Power Adjustment |
0-100% controlling, no segment and adjusting by software |
Controlling Software Language |
English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Machine Color |
grey/Red , Orange/Grey |
Minimum Character |
Chinese character 1.5mm, crisscross-row 1mm |
Max Power |
1200w |

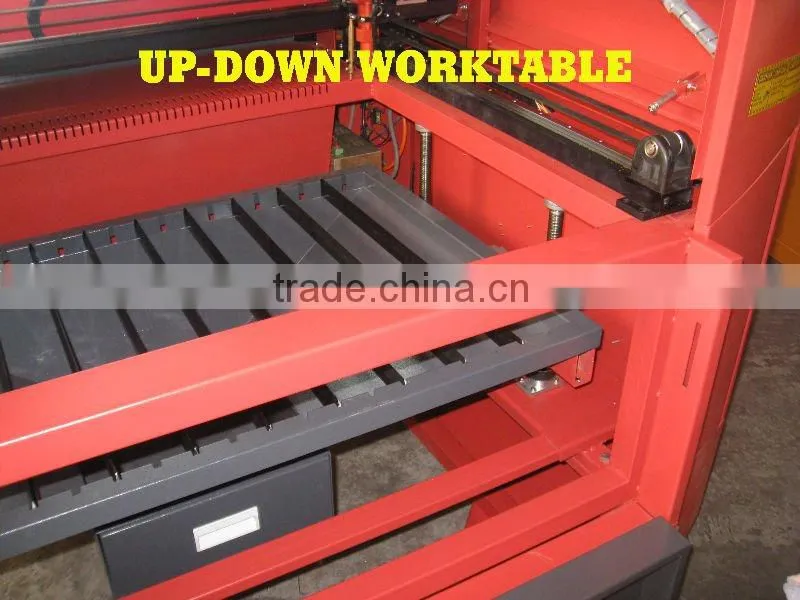

Up-down Range of Working Table |
50mm |
Optional Equipment |
Rotary attachment |
Engraving Speed |
1000mm/s |
Cutting Speed |
500mm/s |
Color separation |
yes |
Laser energy control |
1-100% software setting |
Drive system |
High precision 3-phase stepper motor |
Laser output control |
0~100% set by software |
Option |
Up & down table honeycomb worktable rotary device red dot position system auto-focus device |
Interface |
LCD Screen and USB interface |
Working Voltage |
AC220V ±10%,50Hz |
Running Environment |
0-45°, Humidity: 5%-95% |
Features
Reasonable structure, beautiful appearance, economical practical professional design for various customers' demands!
After many times experiments, and ultimately determined the transmission system, with high speed, high precision and long stability life.
Functional, security and stability, with a water alarm and automatic protection.
The unique optical design----flight optical design , with small deviation, high stability, easy adjustment. Optical components are using the best quality,
Reasonable structure, beautiful appearance, economical practical professional design for various customers' demands!
After many times experiments, and ultimately determined the transmission system, with high speed, high precision and long stability life.
Functional, security and stability, with a water alarm and automatic protection.
The unique optical design----flight optical design , with small deviation, high stability, easy adjustment. Optical components are using the best quality,
The import guide rail equipped with the machine runs steadily, the depth of engraving can be adjusted automatically. The scrap left after engraving is only a little; The verge after cutting has no burr and does not need to polish.
Full up grading to operation offline and to support USB flash disc output. Rich function can effectivelly engrave on flat surface, gradient engraving by 360 degree.
Extensive material processing, smooth cutting edge and burr-free, avoid polishing. Optional double laser heads cutting machine to enlarge the efficiency.
...
