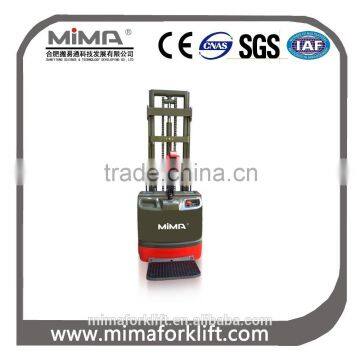

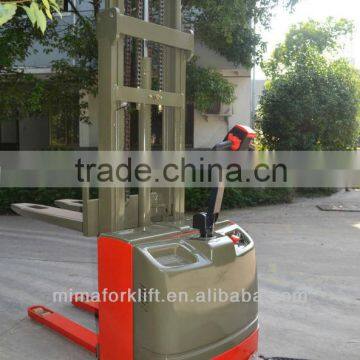

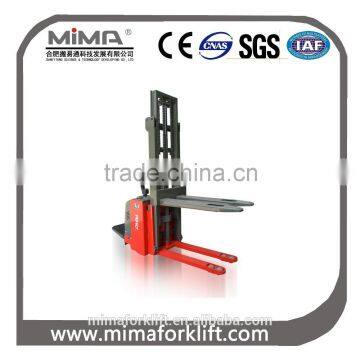

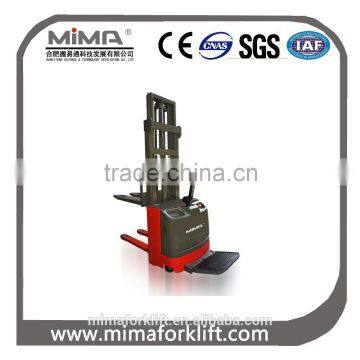

3 to 5m Full Electric Hydraulic Stacker Straddle Capacity1.4 1.6t

Name: 3 to 5m Full Electric Hydraulic Stacker Straddle Capacity1.4 1.6t
Brand: MIMA
SKU: 108454875
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

China

Brand Name:

MIMA

Hefei Banyitong Science & Technology Developing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Nanjing Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin China

Brand Name MIMA

Model Number TB20-45

Type Other

Power Souce AC Motor

Rated Loading Capacity 2000kg

Max. Lifting Height 4500mm

Min. Lifting Height 85mm

Fork Length 1150mm

Fork Width 685mm

Certification CE

Specifications

full electric hydraulic stacker( straddle) capacity1.4/1.6t, max. hgt.3.0 5.0m to lift
Model TB
Loading capacity: 1.0 / 1.5/ 2

full electric hydraulic stacker( straddle) capacity1.4/1.6t, max. hgt.3.0 5.0m to lift

Model	TB10 -16	TB10 -25	TB10 -30	TB10 -35	TB15 -25	TB15 -30	TB20 -16
Load capacity Kg	1000	1000	1000	1000	1500	1500	2000
Load center mm	500	500	500	500	500	500	500
Max. lifting height mm	1600	2500	3000	3500	2500	3000	1600
Free lift mm	0
Wheel type	Polyurethane solid tire
Pedal length mm	500	500	500	500	500	500	500
Fork size(LxW) mm	1150*190
Width of forks(aptotic) mm	680	680	680	680	680	680	680
Overall length(The pedal is closed) mm	2040	2040	2040	2040	2040	2040	2040
Overall width mm	850	850	850	850	850	850	850
Overall height(mast closed) mm	2085	1805	2055	2305	1805	2055	2085
Overall height fork raised(with backrest) mm	2085	3036	3536	4036	3036	3536	2085
Outside turning radius mm	1725	1725	1725	1725	1725	1725	1725
Front wheel to fork tip mm	330	330	330	330	330	330	330
Aisle width for pallet 800x1200 lengthways	2480	2480	2480	2480	2480	2480	2480
Aisle width for pallet 1000x1000 crossways	2460
Lift speed,laden/unladen mm/s	70/108
Lowering speed,laden/unladen mm/s	78
Battery weight Kg	200
Max. walking speeds Km/h	4.0/5.8				4.0/5.8
Grade abitity %	8	8	8	8	8	8	8
Total weight( with battery) Kg	~880	~935	~950	~975	~940	~950	~905
Driving wheel mm	Φ215*75
Front wheel mm	Φ80*70
Balance wheel mm	Φ150*50
Battery V/Ah	24/210
Charger V/A	24/30
Driving motor Kw	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Lifting motor Kw	2.0	2.0	2.0	2.0	2.0	2.0	2.0
Battery dimensions l/w/h mm	650200585
