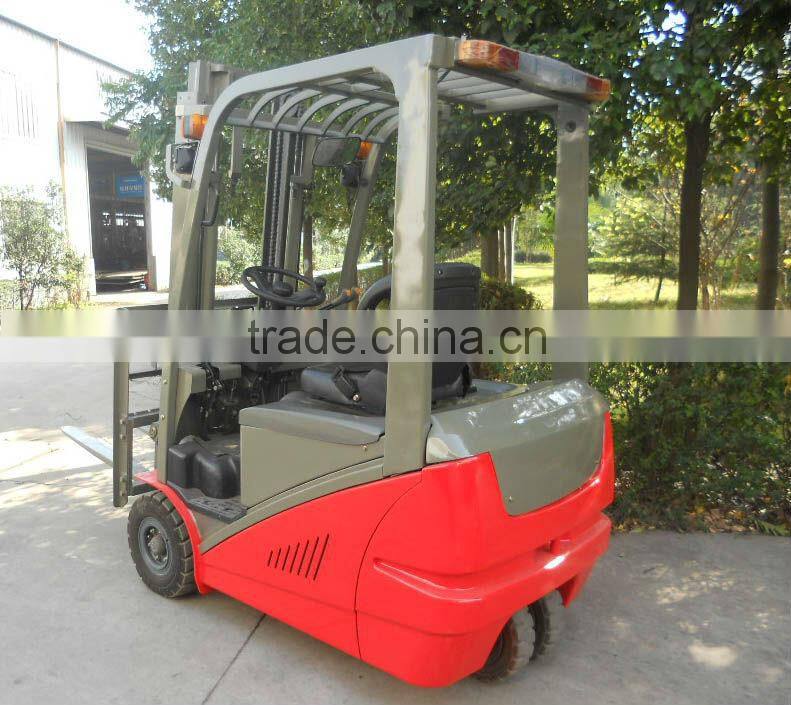

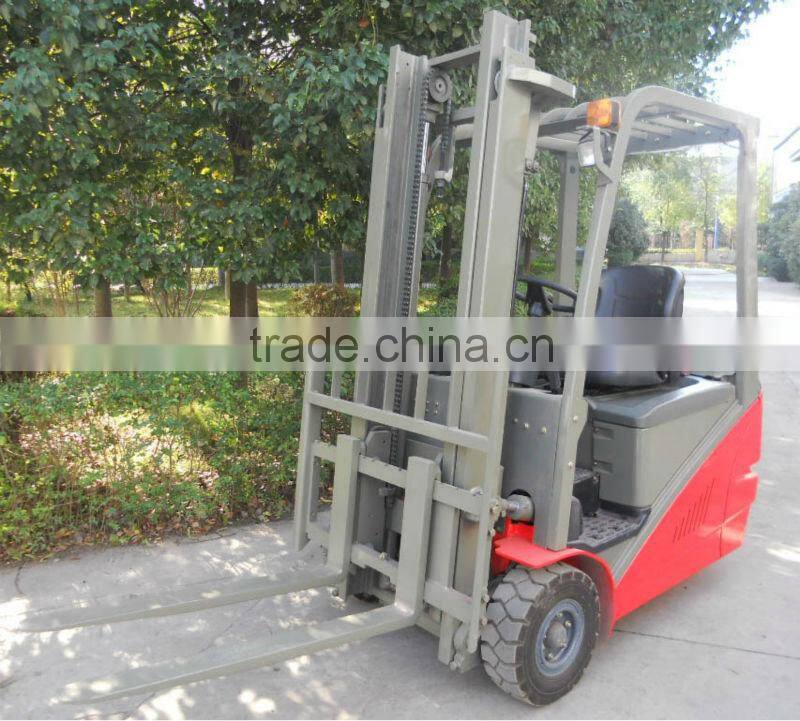

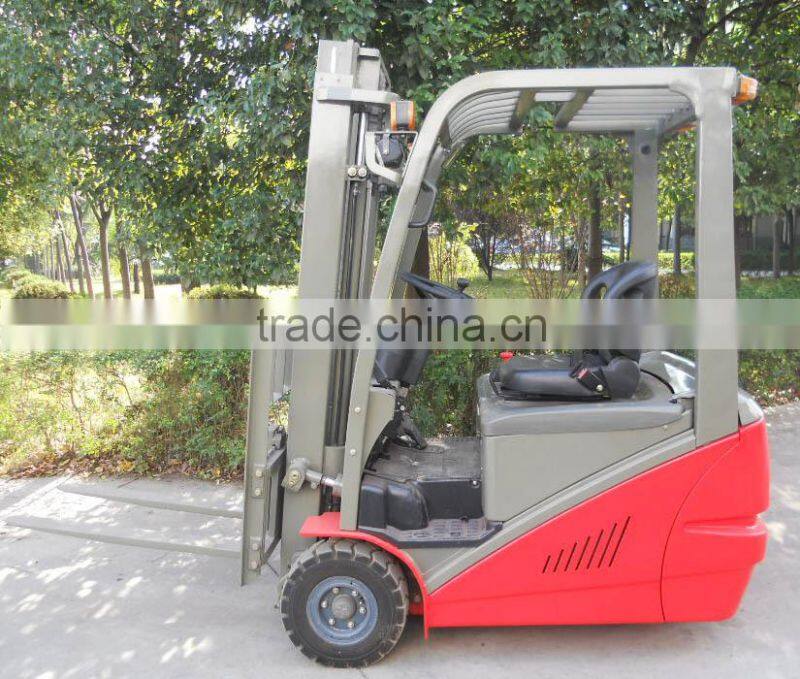

forklift rental ; TK315 series;
MIMA Full AC 3-wheel Battery Forklift with AC Motor;
Product features:
1. The maximum lifting weight 1500 kg; Maximum lifting height 6000 mm;
2. Two of the kinematic each a precursor is independent motor drive, can be separated into gear and motor two parts, each motor driver is a single and complete transmission device, it is superior performance, self-control and safe operation of the strong double driver.
3.Better Stability:Low layout for battery , low center of gravity;
4.full hydraulic power-assisted steering system,easy to steering and save the energy;
5.Curves safe control: the speed will automatic reduced when turning,to aviod the possibility of rollover;
6.Regenerative braking function to increase the working hours for forklift;
7.Better Durability: unitary frame with better strength and rigidity,
8.Full AC technology with high Efficiency and reliability;
9.ergonomics design: comfortable seat,ample inner room and wide visibility;
|
Descriptiom |
TK315 |
| Rated Capacity (KG) | 1500 |
| Operator Type | Seated |
| Max. Lifting Height (MM) | 3000 |
| Min. Turning Radius(MM) | 1600 |
| Min. Stacking Aisle---mm (1200*1200 Pallet) --AST | 3429 |
| Load center MM | 500 |
| Fork Dimensions-L/W/T---mm | 1070*100*35 |
| Overall Length (MM) | 3020 |
| Overall Width (MM) | 1110 |
| Height-Overhead guard--mm | 2045 |
| Height---Mast Lowered(MM) | 2118 |
| Height-Mast Extended w/ Load-Backrest -mm | 3920 |
| Tilt Angle----Forward/Backward--deg. | 6/7 |
| Min Ground Clearance--mm | 135 |
| Front Tyre --(MM) | 18*7-8-16PR |
| Rear Tyre --- (MM) | 15*4 1/2-8-12PR |
| Battery V/AH- "TONGBA"BRAND | 48V /480 AH |
| Battery-Weight ---kg | 795 |
| Driving Motor (KW) | 4.5*2 |
| Service Weight ---kg --incl. Battery | 2950 |
ISO Certificate;
If you have any requirements or suggestion on that,pls don't hesitate to contact with us.
