Forklift Counterweight TK

Forklift Counterweight TK thumbnail-1
Forklift Counterweight TK photo-1
US$ 1,000 - 30,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
MIMA
Contact Supplier Request Quote Chat Now
Hefei Banyitong Science & Technology Developing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name MIMA
Model Number TK
Type Other, 4-wheel forklift
Power Souce AC Motor
Rated Loading Capacity 3000kg
Max. Lifting Height 6000mm
Min. Lifting Height 2500mm
Fork Length 1070mm
Fork Width 120mm
Overall Dimensions 3225*1160*2042mm
Certification SGS
After-sales Service Provided Engineers available to service machinery overseas

Specifications

forklift counterweight,TK series;
with AC driving motor;
Easy Maintenance;

forklift counterweight ; TK series;

Max load capacity: 3.5T, lift height: 6000mm, stable performance, comfortable operation, the advantages are as follows:

1. Initiative shocking proof system, to make sure the forklift more safe and stability;
2. Strenghen mast with high safety factor;
3. Durability: all electric connector with water-proof design;
4. The advanced safe system for mast pipeline, to aviod the out of control for mast when hydraulic system have fault, to ensure the good safe;
5. To use MOSFET controller, it's can provide the smooth and cyclic regenerative braking, to extend the working life of motor and battery;
6. The double pump in one technology, to lower the motor' steering nosie and save the energy;
7. The advanced rear structure design, to increase the working life of driving wheel;
8. The heat-removal system for electric controller, it's can protect the controller and extend the workling life;
9. The main parts are famous brand;
10. Ergonomics' configuration and design to make the operator more comfortable.





Description
Model No.		 TK15-30 TK20-30 TK25-30 TK30-30
Rated Capacity (KG) 1500 2000 2500 3000
Operator Type Seated Seated Seated Seated
Max. Lifting Height (MM) 3000 3000 3000 3000
Min. Turning Radius (MM) 1930 2165 2170 2320
Min. Stacking Aisle---mm (1200*1200 Pallet) --AST 3730 4026 4026 4210
Max Travel Speed km/h-laden/unladen 10.5/1105 12.5/13.5 12.5/13.5 12.5/13.5
Load center MM 500 500 500 500
Fork Dimensions-L/W/T---mm 1070*100*35 1070*100*45 1070*100*45 1070*122*45
Max. Gradeability ---%--Laden/unladen 13/15 13/15 13/15 10/13
Lifting Speed (MM/S)-laden/unladen 136/301 149/285 149/285 128/282
Overall Length (MM) 3085 3420 3425 3597
Length-to Fork Face 2015 2350 2355 2527
Overall Width (MM) 1070 1150 1150 1225
Height-Overhead guard--mm 2200 2207 2207 2200
Height---Mast Lowered(MM) 2130 2015 2015 2080
Height-Mast Extended w/ Load-Backrest-mm 4050 4050 4050 4220
Height--Free Lift --mm 0 0 0 0
Height--seat to overhead guard ---mm
-- ---H7		 1040 1030 1030 1020
Tilt Angle----Forward/Backward--deg. 6/12 6/12 6/12 6/12
Fork Spread Range(MM) 220-960 220-1000 220-1000 260-1060
Front Overhang ----mm 399 455 455 478
Wheelbase ----mm 1250 1500 1500 1600
Tread ----mm --front/rear 891/920 972/960 972/960 1000/992
Min Ground Clearance--mm 94 115 115 115
Front Tyre -- (MM) 6.50-10-10PR 7.00-12-12PR 7.00-12-12PR 28×9-15-12PR
Rear Tyre -- (MM) 5.00-8-10PR 18×7-8-14PR 18×7-8-14PR 18×7-8-14PR
Service Brake Hydraulic
Parking Brake Hand
Battery V/AH- 48V /440 AH 48/630AH 48V/630 AH 80/500 AH
Battery-Weight -- kg 680 1205 1205 1230
Charger-Intelligent 48V /50 A 48V/70A 48 V/70 A 80V/60A
Driving Motor (KW) 5(DC)/8(AC) 8(DC)/11(AC) 8(DC)/11(AC) 10(DC)/16.6(AC)
Lifting Motor (KW) 7.5 10 10 13
Service Weight ---kg --incl. Battery 3226 4100 4210 4980

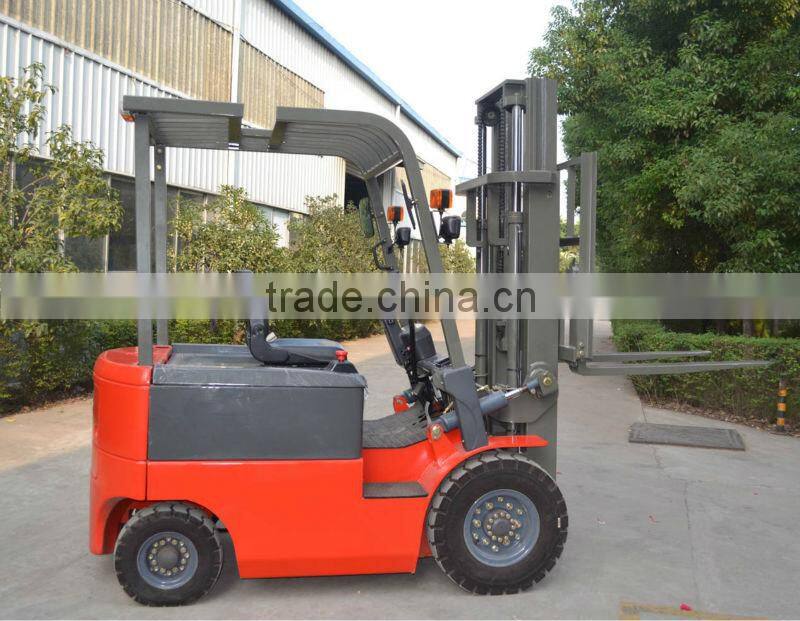

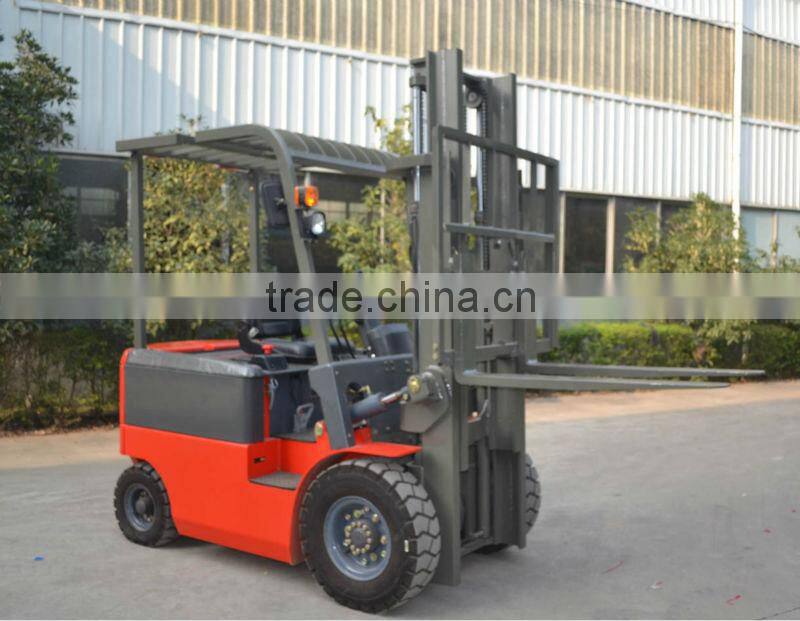

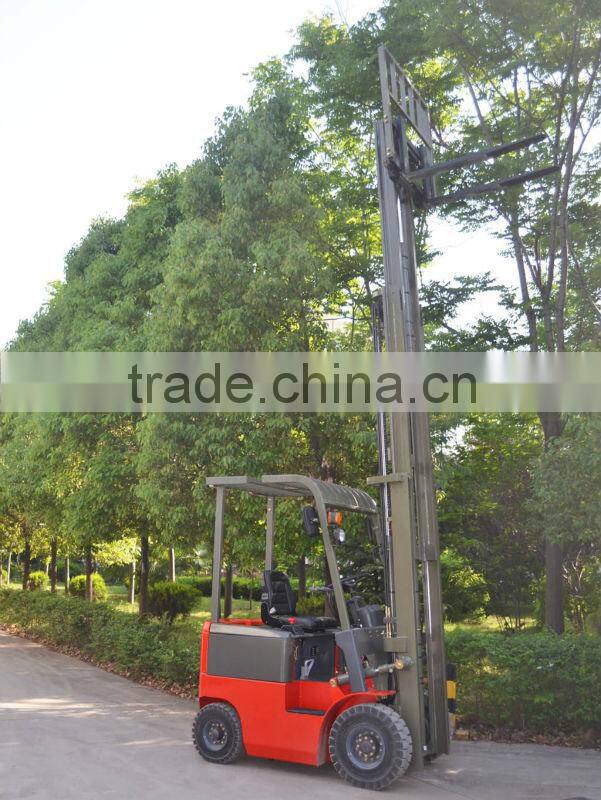

forklift counterweight TKforklift counterweight TKforklift counterweight TK


Company Information

  forklift counterweight TKISO Certificate;

If you have any requirements or suggestion on that,pls don't hesitate to contact with us.
