XOD-05 Oil Mould Temperature Controller Machine for Injection

XOD-05 Oil Mould Temperature Controller Machine for Injection thumbnail-1
XOD-05 Oil Mould Temperature Controller Machine for Injection thumbnail-2
XOD-05 Oil Mould Temperature Controller Machine for Injection photo-1
XOD-05 Oil Mould Temperature Controller Machine for Injection photo-2
US$ 1 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Oil Temperature Machine
Application:
Injection Molding Machine
Contact Supplier Request Quote Chat Now
Dongguan Xinke Automation Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN OR OTHER
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Oil Temperature Machine
Application Injection Molding Machine
Place of Origin Guangdong, China
Brand Name XINGKE
Model Number XOD-05
Temperature Range 200
Temperature Control Accuracy PID 1
Dimension(L*W*H) 800*320*770
Weight 82kg
Internal Piping Size 1/2 INCH
Voltage 380V 50HZ
Power(W) 6kw
Certification ISO
After-sales Service Provided Engineers available to service machinery overseas
Product Description

XOD-05 oil mould temperature controller machine for injection


The oil heaters have both the standard, high temperature and higt temperature high pressure models, which are used to heat up the mould and maintain temperature, although they can be used in other similar applications, Mould backwater is used direchtly (standard type) and indirectly (high temperature type ) which is compressed by bumps, send to the heating tank and controller can maintain an accuracy of ±1℃
MODEL
XOD-05
XOD-10
XOD-20
XOD-30
XOD-10E
XOD-20E
XOD30E
XOD-50E
Temperature range(℃）
200℃
The highest of 300℃
The highest of 350℃
Precise of temperature controlling(℃）
PID±1℃
Power source
AC3￠380V50HZ or other
Heating medium
water
Clooling way
Indirect cooling
Add to heat（kw）
6
9
12
24/36
12/18
18/24
24/30
36/50
Heating capacity(kw/hp)
0.5/0.37
1/0.75
2/1.5
5/3.75
1/0.75
2/1.5
3/2.25
5/3.75
The work flow of pump(L/min)
32
55
95
240
25
50
180
250
Coolingwater preseeure(kg/㎡)
1.5
1.8
2.0
2.6
2.0
2.5
2.8
3.2
Biggest power consumption(kw)
6.5
10
14
26/40
13/19
19/26
26/32
38/52
Warning function
Defaultphase/Oilless/Reheater/Over load/Inversion
Cooling water pipe(inch)
1/2
1/2
1/2
1/2
1/2
1/2
1/2
1/2
Circulationwaterpipe(inch)
3/8×2
3/8×4
3/8×4
3/8×4
3/8×2
3/8×2
3/8×4
3/8×4
Boundary dimension(mm)
800×320×770
800×320×770
800×320×770
800×320×1400
800×320×1100
800×320×1100
800×320×1260
800×320×1260
Weight(kg)
82
92
95
220
250
350
380
500

Main Features

◆ The temperature can up to 350℃.
◆ Controller with 3.2" LCD, visual display and easy operation.
◆ Weekly timing power on/off, ℃/F temperature unit available.
◆ Full digital P.I.D. sectional temperature control system that stable mold temperature can be maintained in
    any operating condition with precision of ±0.5℃.
◆ Efficient water-circulating pump, applying to accurate temperature control and efficient heat transfer in the
     circuit of precision mold and small-diameter mold.
◆ A number of safety devices, like anti-phase protector, pump overload protector, overtemperature protector
    and low level protector, automatically detecting anomalies when malfunction occurs, with displaying indicator
    light.
◆ Stainless steel electrical tube.
◆ Stainless steel interior, endurable in high pressure and anti-explosion.

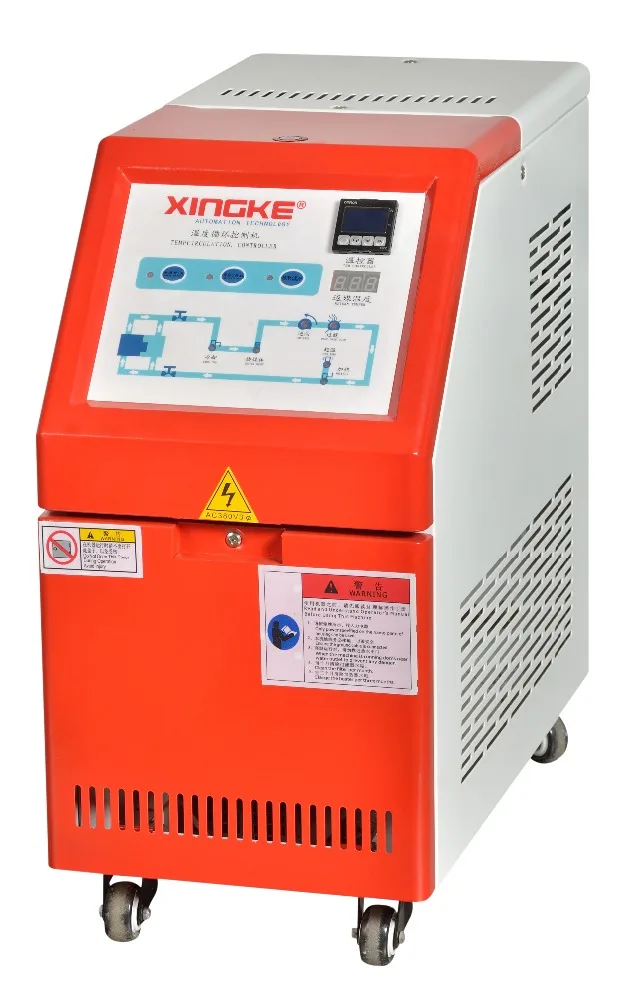

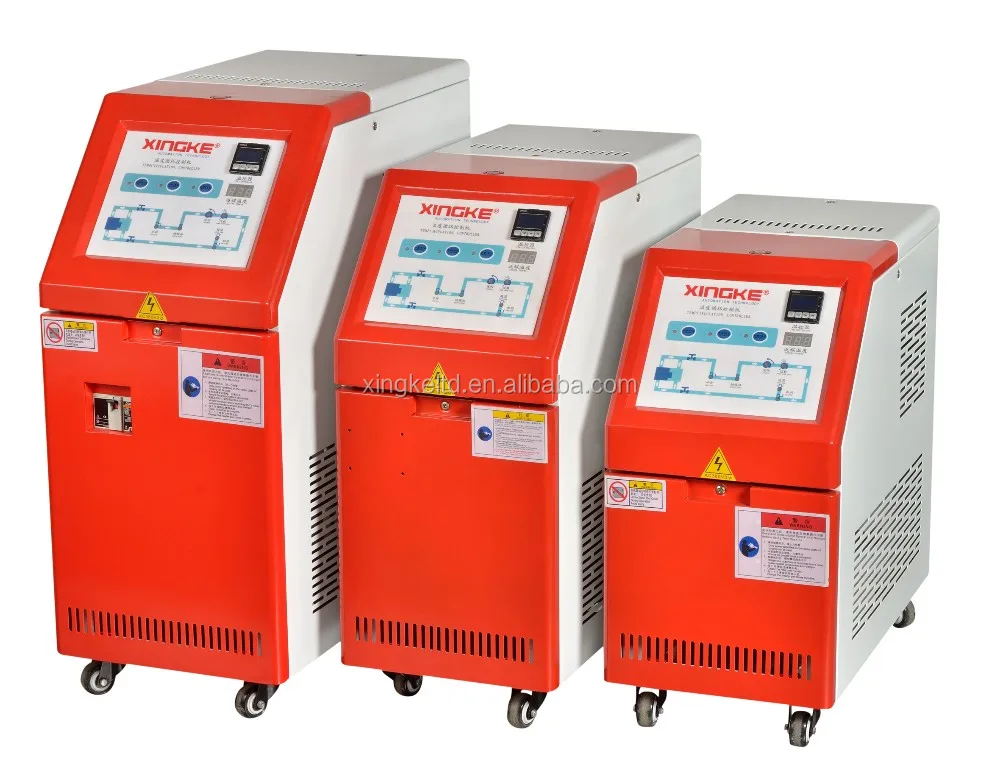

Detailed Images



Optional Configuration

1, Water manifolds and Teflon are optional.

2 , Pump reverse evacuation can be equipped

3, Magnetic drive pump can be equipped

4,Displaying device for mould temperature and mould        backwater can be equipped.

Operating principle

High-temperature oil running back from molds flows into the temperature controller through pipelines then it is conveyed into the heater by bump, after heating it is transported into molds. During this cycle, a cooling magnetic valve will be started, if high-temperature oil is overheated, putting cooling oil into double-layered tube to cool high-temperature oil, achieving constant temperature control; if high-temperature oil is still overheated and over the set point of EGO, then the system will activate an alarm and stop working; if liquid level is under the set value of the level switch which is installed in the oil tank, the low-level signal will be emitted and the system will sound an alarm.

Certifications
Our Service

XOD-05 oil mould temperature controller machine for injection service details are as follows:

1, Provides customers with a full range of technical support and technical training
2, The whole equipment free one-year warranty and lifetime maintenance
3, Provides customers with the thoughtful usage of maintenance tips and perfect after-sales service management system.
4, Received after-sales requirement, technicians will arrive the user factory within 24 hours and handle the equipment failure immediately.
Packing & Delivery


1.Trade terms: FOB
2.Delivery Time: Within 20-25 days after received deposit
3.Payment Terms:40% T/T in advance, 60% balance before delivery
4.Shipping port: Shenzhen, Tianjin or Shanghai
5. Package: Wooden case

Xingke Exhibition
