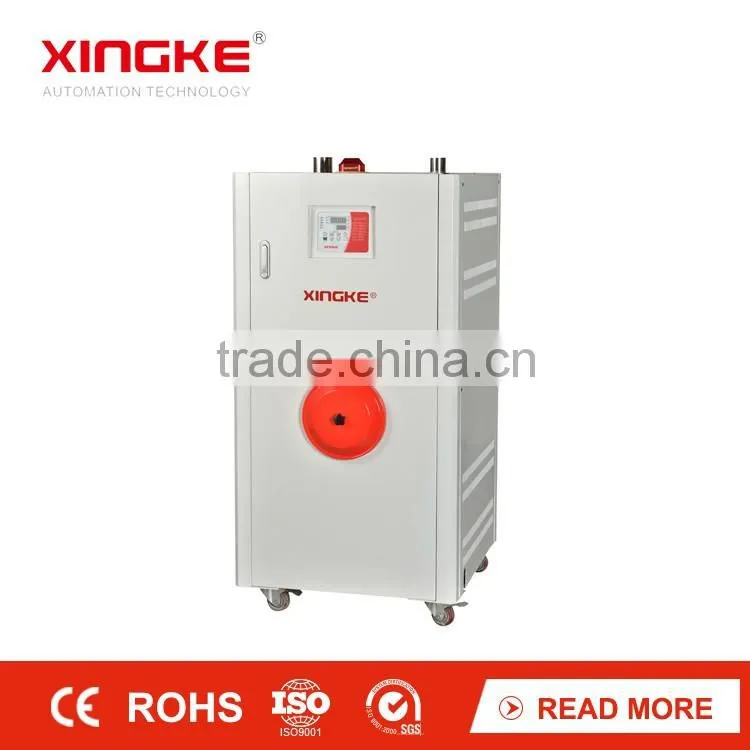

XD-150H Plastic of Industry Desiccant Machine

XD-150H Plastic of Industry Desiccant Machine thumbnail-1
XD-150H Plastic of Industry Desiccant Machine thumbnail-2
XD-150H Plastic of Industry Desiccant Machine photo-1

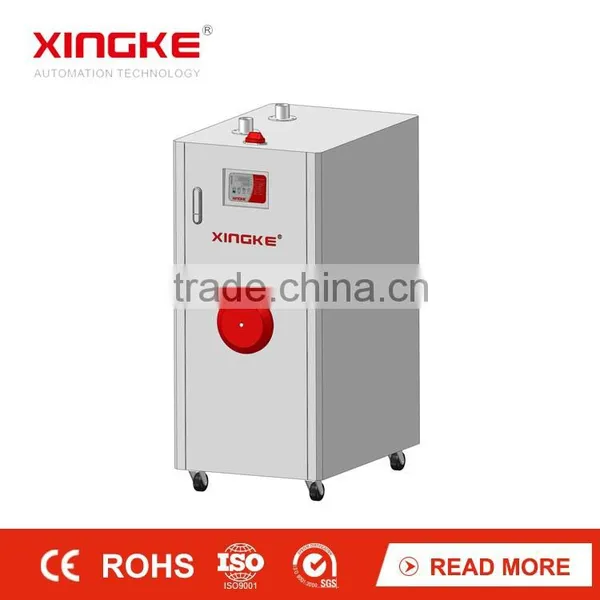

XD-150H Plastic of Industry Desiccant Machine photo-2
US$ 1 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
XINGKE
Contact Supplier Request Quote Chat Now
Dongguan Xinke Automation Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name XINGKE
Model Number XD-80H
Certification ISO9001/CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

XD-150H plastic of industry desiccant machine


Standard Configuration


◆  Adopts P.I.D. temperature controller to accurately control regenerative temperature.


◆  The dehumidifying system of the series feature two coolers to ensure a low return air temperature and low dew-point.


◆  Return air filter is mounted inside to ensure no contamination t the honeycomb.


◆  Full molecular sieve, providing better honeycomb dehumidification than silica gel application.


Optional Configuration


◆ Centralized automatic control can be realized by optionally selected PLC touch screen controller.


◆ Optionally select dew-point monitor to realize dew-point real – time monitoring.


◆ Optionally select drying heater and its ntroller to work with drying hopper for material dehumidifying and drying.


◆  Optional heat-resistant air pipe,cyclone dust separator with floor stand,oil filter are available.

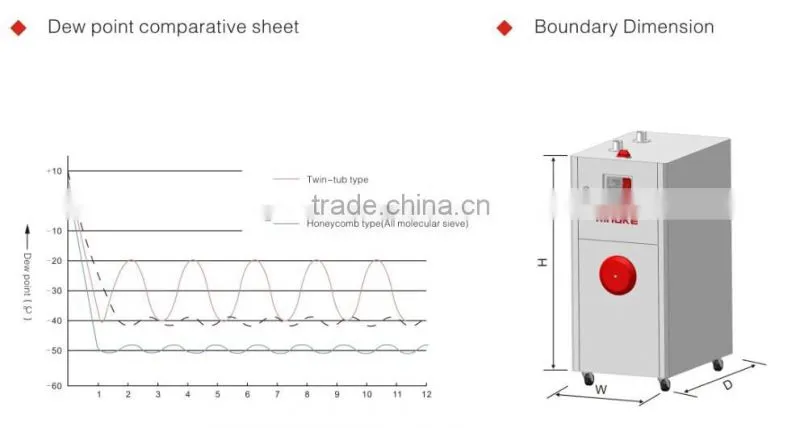

◆  Dew-point temperature at -50℃ can be set.

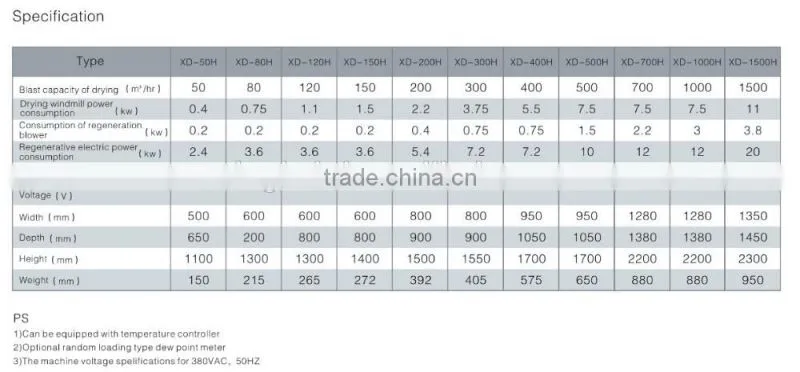

Model
XD-150H
Blast capacity of drying(㎡/hr)
150
Drying windmill power consumption
1.5kw
Consumption of regeneration blower
0.2kw
Regenerative  power consumption
3.6kw
Inlet and outlet pipe diameter
2''
Width（mm）
600
Depth（mm）
800
Height（mm）
1400
Weight（kg）
272
PS：Use separate drying hopper ,In the atmospheric temperature of 20 ℃ and 65% relative humidity, after drying the moisture content is below 0.0005%.

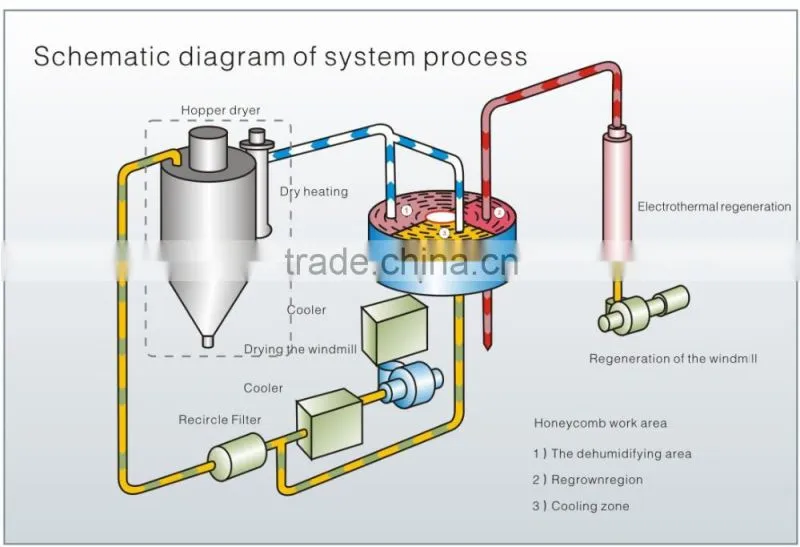

Working Principle

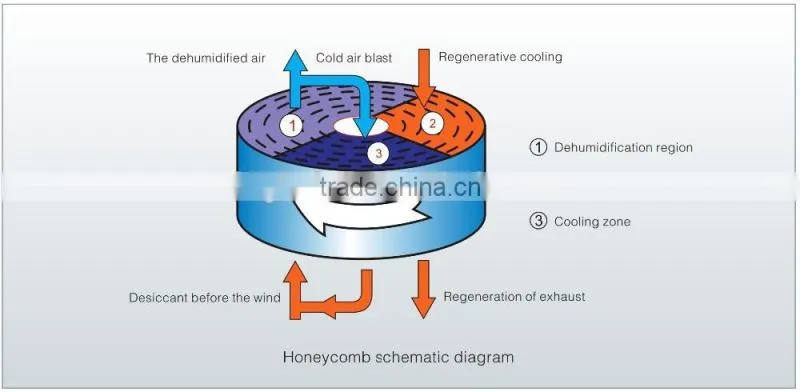

What is “honeycomb rotor”?

The main body of honeycomb rotor is formed by ceramic honeycomb which is made from ceramic fiber and organic addictive. Molecular sieve and silicone as basic material are crystallized and sintered at high temperature for hard surface and tightly attached to the internal wall of honeycomb. Therefore, it would not generate silt as barrel packaged or turntable molecular sieve to contaminate the plastic. The honeycomb rotor can be used permanently and can be washed, while the ordinary molecular sieve must be usually replaced for its easily getting saturate and aging. The water of moisture return air will be quickly absorbed by molecular sieve when it across innumerable ostioles of the honeycomb rotor, therefore the air is completely dehumidified and reaches a very low dew-point. Regenerating and dehumidifying happen simultaneously and follow the similar principle, except that their regeneration air flows in the opposite direction.
Application Range
The honeycomb dehumidifiers are mainly used to dry hygroscopic engineering plastics.A honeycomb-rotor is used to offer effective drying.which under ideal conditions,can supply dehumidified dry air with a dew-point lower than -40℃.the largest of which can provide dry air up to quantity of 4,000m3/hr.

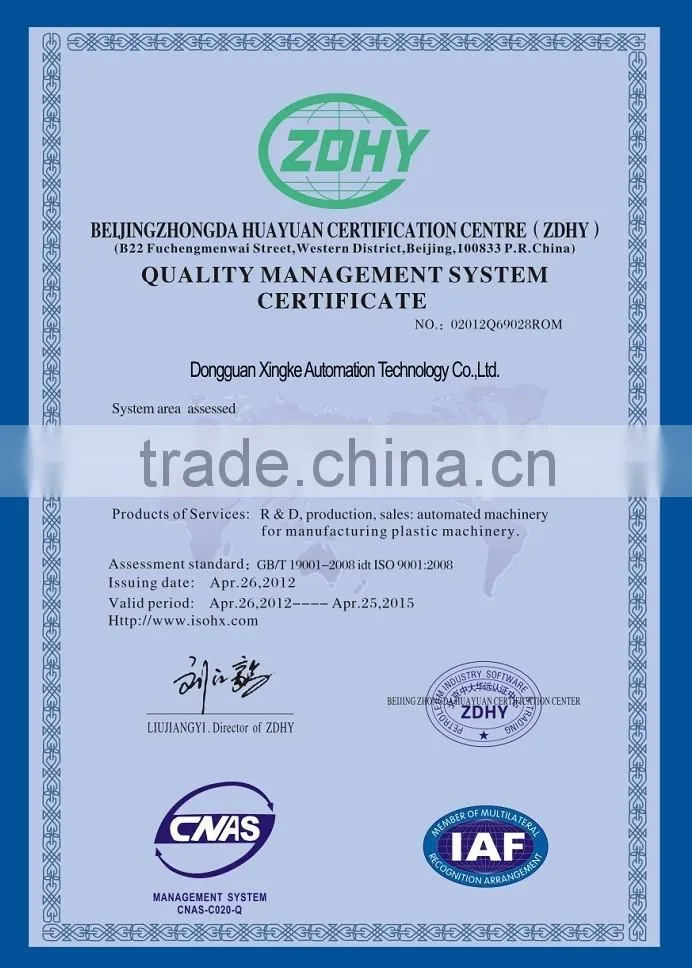

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery


XD-150H plastic of industry desiccant machine

1.Trade terms: FOB

2.Delivery Time: Within 20-25 days after received deposit

3.Payment Terms:40% T/T in advance, 60% balance before delivery

4.Shipping port: Shenzhen

5. Package: Wooden case or others.
