XCD-150/150 Industrial Dehumidifier for Plastic

XCD-150/150 Industrial Dehumidifier for Plastic thumbnail-1
XCD-150/150 Industrial Dehumidifier for Plastic photo-1
US$ 1 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
XINGKE
Contact Supplier Request Quote Chat Now
Dongguan Xinke Automation Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Guangdong, China
Brand Name XINGKE
Model Number XCD-50/50
Certification ISO9001/CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

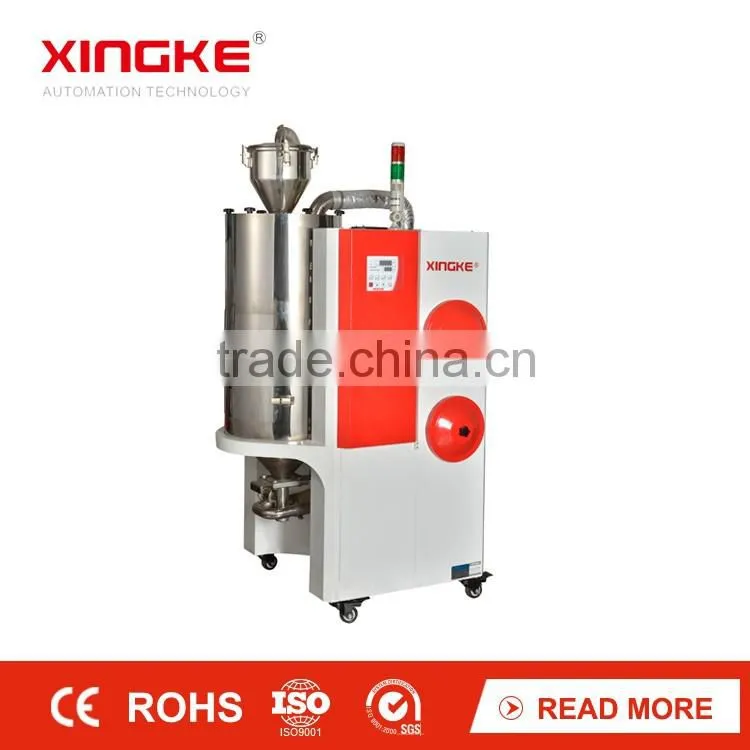

XCD-150/150 industrial dehumidifier for plastic

Standard Configuration
◆ Integration of dehumidification, drying and conveying functions

◆ Dehumidification, drying and conveying integrated unit are equipped with honeycomb rotor for getting low dew-point dry air with good stability. Cut-off valve in semi-open and fully-enclosed feed system are equipped to assure no remnants materials left in material pipe.

◆ Equipped with micro computer and SVH for optical machine for micro powder cleaning, avoiding spot in optical products.

◆ Stainless steel mirror polishing of all material contact surface and closed loop feeding system to avoid the material get contaminate or damp

◆ High-performance filter to filter dusts down to 0.3um and the filtration rate can reach 99.995%;

◆ Bottom blowpipe design of material barrel with cyclone exhaust device for thermal drying barrel, to keep temperature and improve drying efficiency.

◆ Double cooler structure to assure lower return air and dew-point.

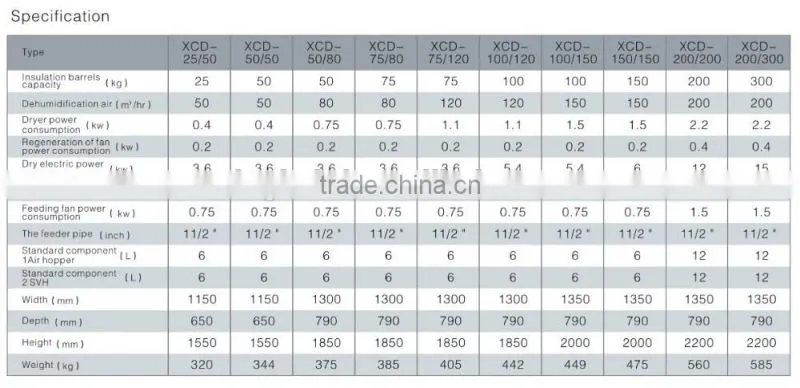

Model
XCD-150/150
Insulation barrels capacity（kg)
150
Dehumidification air(m³/hr)
150
Dryer power consumption(kw)
1.5
Regeneration of fan power consumption
0.2
Dry electric power consumption
6
Regenerative electric power consumption
3.6
Feeding fan power consumption
0.75
The feeder pipe
11/2''
Vacuum hopper（L）
6
Electronic hopper（L）
6

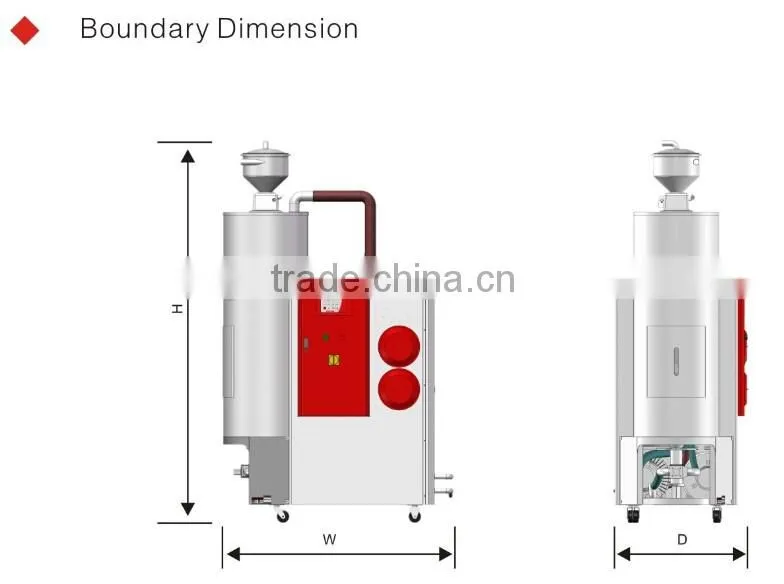

Width(mm)
1350
Depth(mm)
790
Height（mm）
2000
Weight（kg）
475

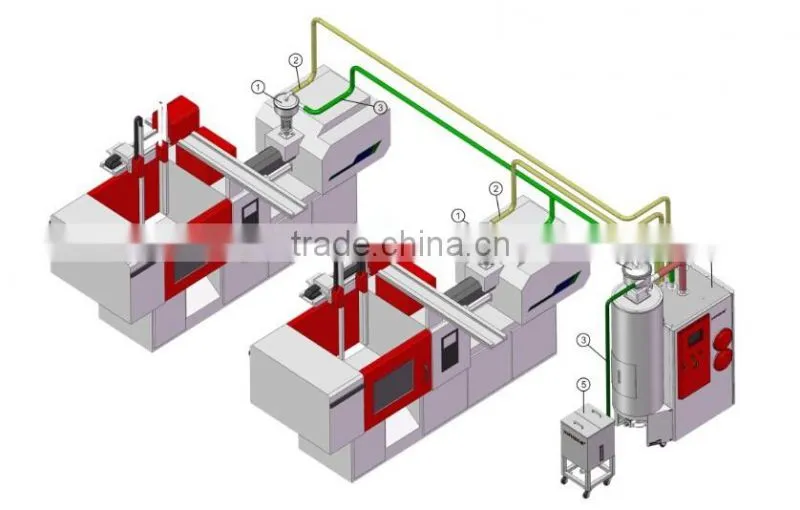

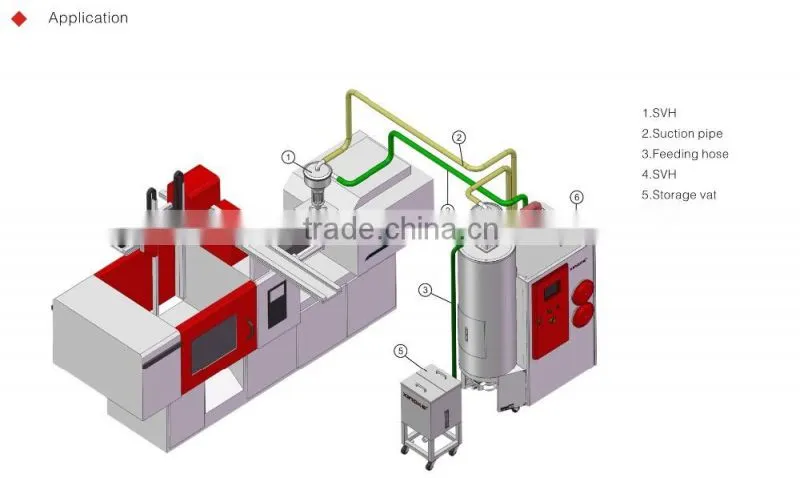

Application Range

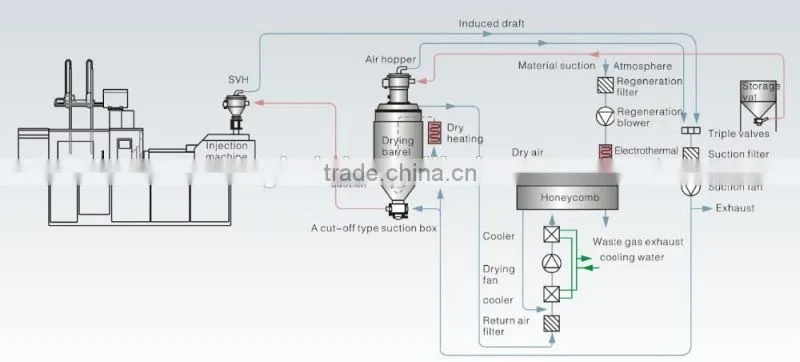

Working Principle

Dehumidification and drying: The hot and humid air from drying material barrel is blown into honeycomb rotor after cooling. The water in air is absorbed by rotor and then desorbed by the regeneration heating air. The two airflows work on the rotor at the same time, and as the rotor rotates, the water in air can be absorbed and desorbed continuously. Thus, a stable low dew-point air is formed and then blown into the drying barrel after heated to the drying temperature of plastic, forming a closed loop to dry material.


Material suction: material suction is to suck material from material barrel or other material container into drying material barrel. The motor starts to run when the magnetic reed switch of the vacuum hopper detects no material, generating vacuum in vacuum hopper, and then the material in material barrel will be sucked into vacuum hopper because of the pressure difference of air. The motor stops working after sucking and the material will drop into drying barrel. At last the dried material will be sucked into SVH hopper or other hopper which is set in plastic moulding machine.

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

XCD-150/150 industrial dehumidifier for plastic


1.Trade terms: FOB

2.Delivery Time: Within 20-25 days after received deposit.

3.Payment Terms:40% T/T in advance, 60% balance before delivery .

4.Shipping port: Shenzhen.

5. Package: Wooden case or others.
