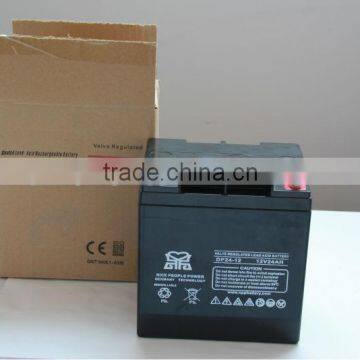

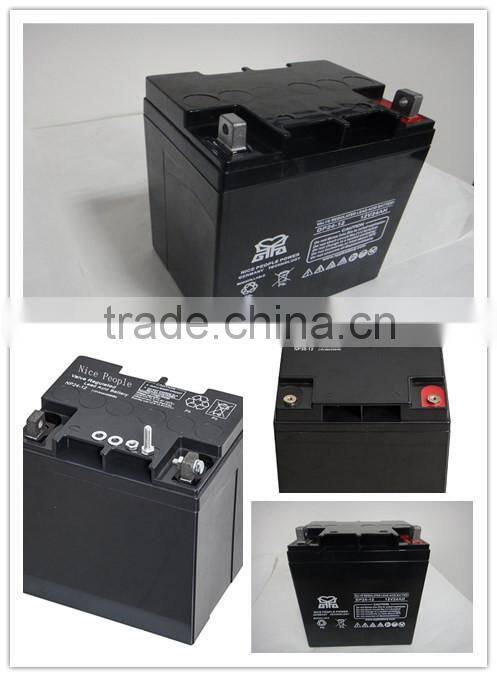

import from china lead acid 12V24Ah maintenance free battery for motorcyle solar ups

Packing:4pc/carton 20'GP quantity=4032pc=336pc/pallet*12 pallet

Specifications

German technology,high quality AGM materials manufactured,competitive price with 1 years quality warranty.long service life

Product Performance:

-Long design life(25ºC): 5-8 years

-Low self-discharge rate:<=3%/month

-Good high rate discharge performance

-High sealed reaction efficiency: >=99%

-Wide operation temperature range: -20ºC~60ºC







Applications:

- Fire protection and security uninterruptible power supply

- Electronic appliance and other backup power supply

- Telephone and telecommunication equipment

- Electric toysPower toolsPortable Lights

- Uninterruptible power supplies (UPS)

- Emergency lighting or small lamp fitting

- Electric bike/motorcycle

- Remote Switching

- Solar power system

- Solar light



Nominal Voltage			12V
Nominal Capacity (20 hour rate)			7.5Ah
Capacity 25oC (77°F)		10 hour rate (0.71A)	6.7Ah
		5 hour rate (1.34A)	5.8Ah
		1 hour rate (4.95A)	4.95Ah
Internal Resistance		Full Charged Battery 25oC	≤21mΩ
Capacity affected by Temperature  (10 hour )		40oC (104°F)	102%
		25oC (77°F)	100%
		0oC (32°F)	85%
		-15oC (5°F)	65%
Self-Discharge 25oC (77°F) Capacity		after 3 month storage	90%
		after 6 month storage	80%
		after 12 month storage	62%
Charge (Constant Voltage) 25oC (77°F)	Float	Initial Charging Current Less than 2.25A Voltage13.6-13.8V
	Cycle	Initial Charging Current Less than 2.25A Voltage 14.4-15.0V



Battery Dimensions	Length	151mm
	Width	65mm
	Height	95mm
	Total Height	101mm
Box Dimensions	Length	364mm
	Width	165mm
	Height	141mm
Quantity Per Box		5 pcs per box
Net weight Per Cell		2.25 kg±100g
Net weight Per Box		11.25kg
Gross Weight		11.7kg









Limited Guarantee and Service Commitment



Product Quality

1.We are liable to remedize or replace the batteries for any defects in materials andworkmanship if they come from our factory and stay within the legitimatewarranty.

2.We will response to your failure-report within 24 hours with a solution ,and willdispatch technician to field if it is necessary.

3.We offerlife-long service to every single of our batteries(free of charge if covered bywarranty),and technical instruction included.

Follow-up Service

1.Our technicans are available for your on-site installation guidance andengineering.

2.We are ready to answer your questions about our products(remote or on-site)untilproblems are solved and deliver

  technical trainging upon your specific demand.
