Specifications
Low Frequency Pure Sine Wave Inverter solar inverter1.Intelligent charging
2.Automatic timing shutdown
3.Using easy and safe

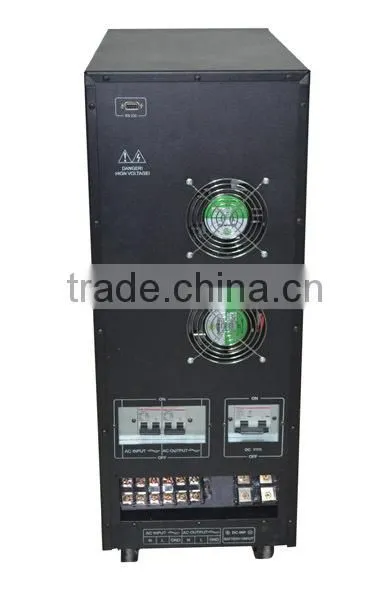

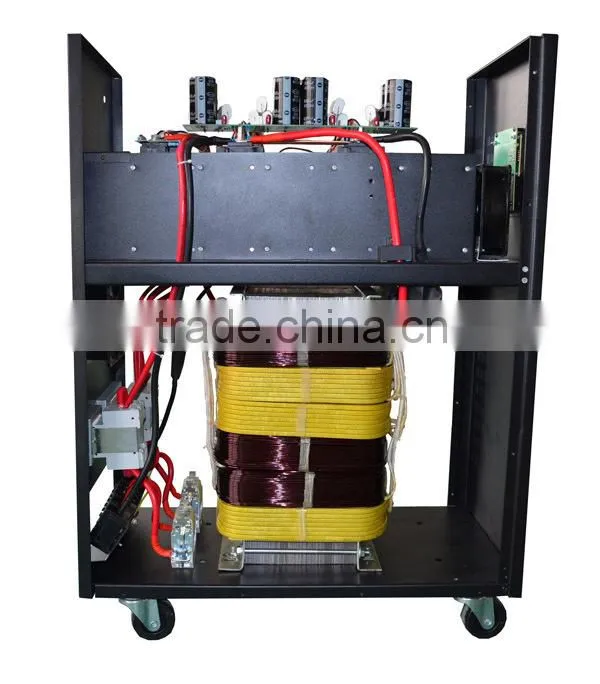

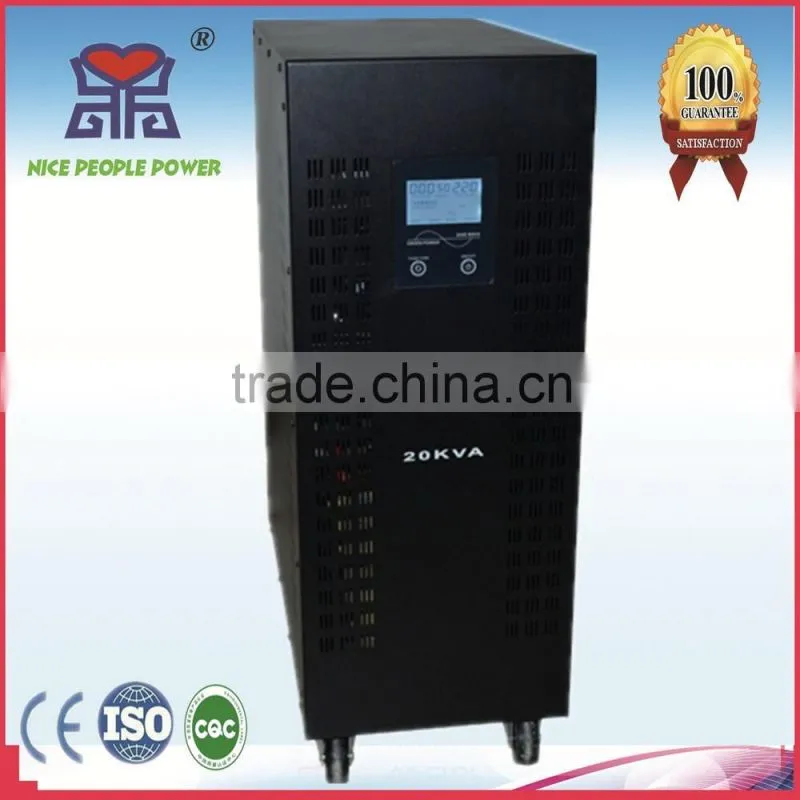

15kw-20kw DC to AC Power inverter with Charger Low Frequency Pure Sine Wave Inverter for grid solar system
1. Advanced performance by CPU control
2. Auto voltage regulation(AVR),wide input voltage 145V~275V,accurate output,AVR function,adapt all kinds lf bad electric environments
3. Intelligent battery charging, the charging current can be adjusted according to the equipped battery, it is fast and reliable and can increase the service life of the battery
4. Intelligence display of output voltage,frequency,battery capacity,fault,over load,load
5. User can use the program of RS232 or USB communication′s software to setting timing auto shut down
6. Generator compatibly and external battery connection achievable
7. Adapt all kinds lf bad electric environments
8. It can be automatically started up with mains supply, and has a wider range of applications
9. Advanced automatic constant charging circuit,prolongs battery life
10. It has perfect battery under-voltage, overload, over-discharge, short-circuit protections.
Technical parameters :
Model D-NB |
153192 |
203384 |
|
Rated power |
15KW |
20KW |
|
Battery Voltage(v) |
192/384 |
||
Size(W×D×H)mm |
600*300*730 |
||
Shipping size(W×D×H)mm |
670×380×930 |
||
Net weight(kg) |
105 |
125 |
|
Gross weight (kg) |
115 |
135 |
|
Universal parameter | |||
Input |
Voltage |
165V~275V |
|
Frequency |
45Hz~65Hz |
||
Output |
Voltage |
220V±2%(Battery mode) |
|
Frequency |
50Hz±0.5Hz |
||
Output wave from |
Sine wave |
||
Output wavefrom distortion |
≤3% |
||
Charging |
3A-5A(Adjustable) |
||
Display |
LED,LCD(Optional) |
||
Transfer time |
<4ms |
||
Surrounding |
Noise |
≤50dB |
|
Temperature |
0℃~40℃ |
||
Humidity |
10%~90%(no condensate) |
||
Efficiency |
≥80% |
||
Protection |
Overload |
Overload exceeds 110%,automatic shutdown in 30 secs;Overload exceeds 120%,automatic shutdown in 2 secs;Under mains supply mode, it will not shutdown if overload, just keeping sound. |
|
Short-circuit |
Output short-circuit,automatic shutdown after keeping sound 20 secs |
||
Battery |
high or low voltage protection |
||
Reverse polarity |
reverse polqrity protection(optional) |
||
Alarm sound |
A |
Without alarm sound if work normally under mains supply mode,when mains supply cut off, turn into battery mode,keeping sound 4 times every 30 seconds. |
|
B |
Keeping sound every seconds for second time alarm of Battery low voltage; send out sharp sound under machine fault. |
||
C |
Keeping sound every seconds under Overload |
||
Remark |
All specifications are subject to change without prior notice |
||
After sale service & promise:
1,supply oem&odm order,independent Q.C department ,3 times of quality checking,
2.100% percent of pass before shipping
3.one year of warranty
4.IS09001 ,CE,FCC,RoHs certification
More detail : Free&Easy ,your best choice .
Our advantage:
1.we can do the designs according to the customers'requirement
2.we can open customers'own mould as per their reuirement
3.we can offer you the high quality & reasionalble price
4.we can offer your a good after-sell service
5.we have strong professinal design team
6.we have our own designer, so welcome OEM&ODM order
7. promptly delivery. small order is welcome.
