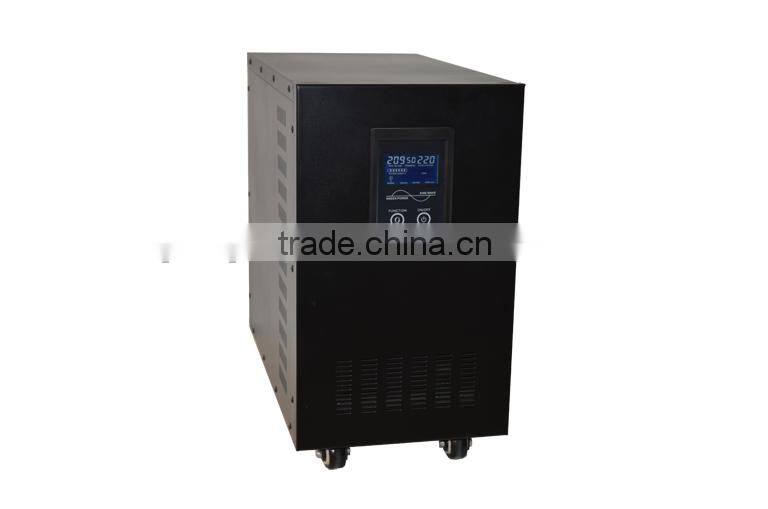

4000W-6000W dc to ac Solar Grid Tie Inverter With Charger Frequency Inverter

4000W-6000W dc to ac Solar Grid Tie Inverter With Charger Frequency Inverter thumbnail-1
4000W-6000W dc to ac Solar Grid Tie Inverter With Charger Frequency Inverter photo-1
US$ 200 - 1,000 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
nice people power
Model Number:
D-NB
Contact Supplier Request Quote Chat Now
Guangzhou Nice People Power Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
huangpu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name nice people power
Model Number D-NB
Specification Normal
Application Home
Output Voltage (V) 220V±2%
Load Power (W) 4000-60000W
Solar Power (W) 4000-60000W
Work Time (h) 2-20hours

Specifications

Low Frequency Pure Sine Wave Inverter solar inverter
1.Intelligent charging
2.Automatic timing shutdown
3.Using easy and safe

4000W-6000W dc to ac solar grid tie inverter with charger frequency inverter



Product Description

 1.Advanced performance by CPU control
2. Auto voltage regulation(AVR),wide input voltage 145V~275V,accurate output,AVR function,adapt all kinds lf bad electric environments
3. Intelligent battery charging, the charging current can be adjusted according to the equipped battery, it is fast and reliable and can increase the service life of the battery
4. Intelligence display of output voltage,frequency,battery capacity,fault,over load,load
5. User can use the program of RS232 or USB communication′s software to setting timing auto shut down
6. Generator compatibly and external battery connection achievable
7. Adapt all kinds lf bad electric environments
8. It can be automatically started up with mains supply, and has a wider range of applications
9. Advanced automatic constant charging circuit,prolongs battery life
10. It has perfect battery under-voltage, overload, over-discharge, short-circuit protections.

4000W-6000W dc to ac solar grid tie inverter with charger frequency inverter4000W-6000W dc to ac solar grid tie inverter with charger frequency inverter4000W-6000W dc to ac solar grid tie inverter with charger frequency inverter



Technical parameters :



Model D-NB

42296

50296

60296




Rated power

4000W

5000W

6000W



Battery

48VDC/96VDC

96VDC/192VDC



Size(W×D×H)mm

465×245×465



Shipping size(W×D×H)mm

530×310×510



Net weight(kg)

44

50

55



Gross weight (kg)

46

60

65



Universal parameter



Input

Voltage

145V~275V



Frequency

45Hz~65Hz



Output

Voltage

220V±2%(Battery mode)



Frequency

50Hz±0.5Hz



Output wave from

Sine wave



Output wavefrom distortion

≤3%



Charging

5A-15A(Adjustable)



Display

LED,LCD(Optional)



Transfer time

<4ms



Surrounding

Noise

≤50dB



Temperature

0℃~40℃



Humidity

10%~90%(no condensate)



Efficiency

≥80%



Protection

Overload

Overload exceeds 110%,automatic shutdown in 30 secs;Overload exceeds 120%,automatic shutdown in 2 secs;Under mains supply mode, it will not shutdown if overload, just keeping sound.



Short-circuit

 Output short-circuit,automatic shutdown after keeping sound 20 secs



Battery

 high or low voltage protection



Reverse polarity

 reverse polqrity protection(optional)



Alarm sound

A

Without alarm sound if work normally under mains supply mode,when mains supply cut off, turn into battery mode,keeping sound 4 times every 30 seconds.



B

Keeping sound every seconds for second time alarm of Battery low voltage; send out sharp sound under machine fault.



C

Keeping sound every seconds under Overload



Remark

All specifications are subject to change without prior notice

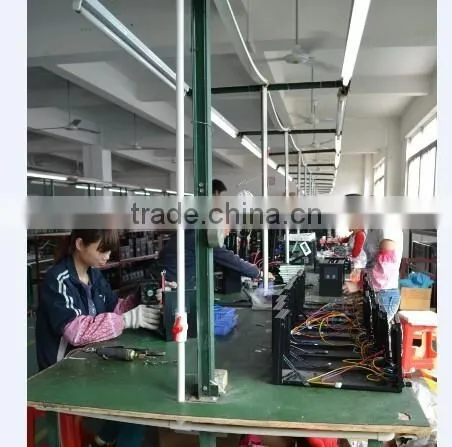

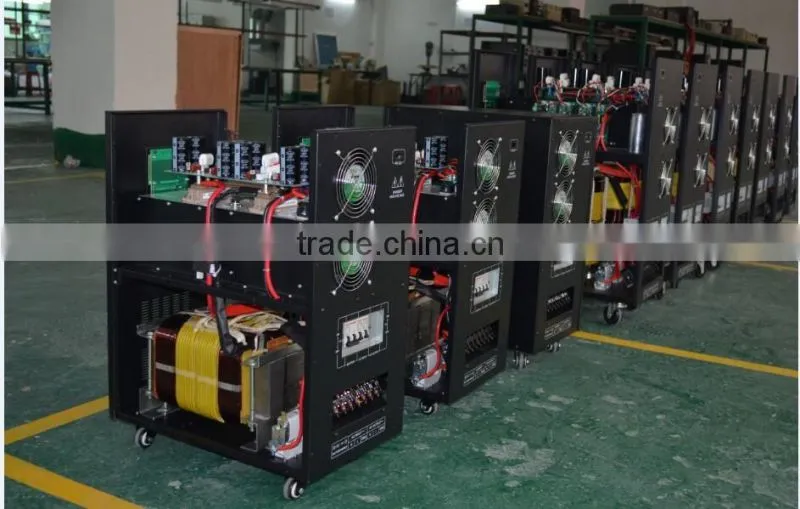

Production Flow

 4000W-6000W dc to ac solar grid tie inverter with charger frequency inverter4000W-6000W dc to ac solar grid tie inverter with charger frequency inverter4000W-6000W dc to ac solar grid tie inverter with charger frequency inverter

 4000W-6000W dc to ac solar grid tie inverter with charger frequency inverter

After sale service & promise:

 1,supply oem&odm order,independent  Q.C department ,3 times of quality checking,



 2.100% percent of pass  before shipping



 3.one year of warranty



 4.IS09001 ,CE,FCC,RoHs certification

More detail :  Free&Easy ,your best choice .

Our advantage:



 1.we can do the designs according to the customers'requirement

 2.we can open customers'own mould as per their reuirement

 3.we can offer you the high quality & reasionalble price

 4.we can offer your a good after-sell service

 5.we have strong professinal design team

 6.we have our own designer, so welcome OEM&ODM order

 7. promptly delivery. small order is welcome.
