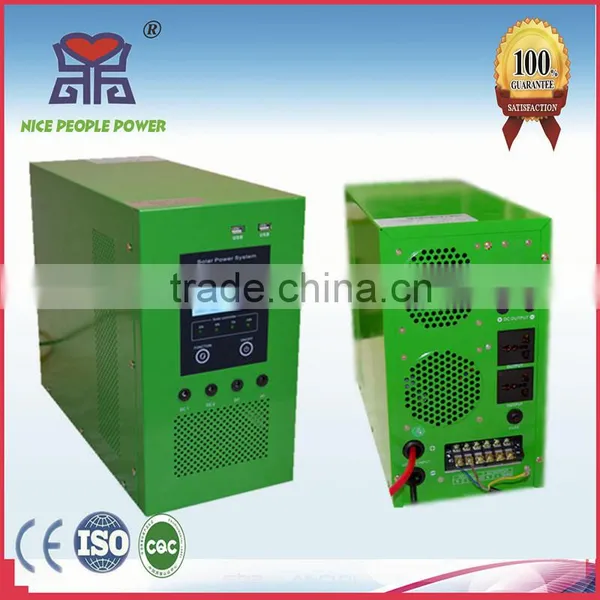

24v2000w Pure Sine Wave Solar Inverter With Controller

Guangzhou Nice People Power Co., Ltd. Gold Verified Supplier
5Yrs
24v2000w Pure Sine Wave Solar Inverter With Controller thumbnail-1
24v2000w Pure Sine Wave Solar Inverter With Controller photo-1
US$ 100 - 300 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
nicepeoplepower
Model Number:
24-2000W
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
huangpu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name nicepeoplepower
Model Number 24-2000W
Output Power 500 - 1000W
Output Type Single
Size 405*180*320mm
Weight 23kgs
Input Voltage 75V-125V
Output Voltage 220V
Type DC/AC Inverters
Output Frequency 50HZ/60HZ
Output Current 10A

Specifications

solar power inverter with solar controller
1.Multiple protection
2.Multiple plug design
3.built in controller





Product Description



                                               solar power inverter with solar controller with changer

Descriptions:

This solar system is consist of solar controller and pure sine wave inverter etc.

Controller: solar power controller is an important part of the solar power system, System of charging and discharging and load work automatically by its intelligent control and protection. Its performance directly affects the reliability of the system. Especially the battery life, overcharge or over discharge will be cause damage and even lethal damage for the battery.

Inverter: in solar photovoltaic power supply system, if it has the AC load, it is necessary to use the devices of the inverter. The direct current generated by solar modules or the battery release of DC into AC for load.

Feature:

1.Ture short-circuit protection

2.The multiple plug design

3.Multiple protection against under voltage, overload, over current, high temperature and high pressure, short circuit and multiple protection function,

4.Advanced circuit design, high-quality imported components, low thermsl diffusion,low repair rate

5.Unique SMT + module combination of processing technology, more stable performance.

6. Range of application: mobile phone charging, laptops, lamps and lanterns, camera, TV, shaver, CD, fan, video game, security, professional tools, instruments of all electrical power.





 Technical Parameters:

Model NBI

15224-30

15248-30

20224-30

PV Controller

Control mode

Direct charge/PWM

Charge current

  30A

    30A

30A

Rated charging voltage

    24VDC

   48VDC

 24VDC

Compulsive charging voltage

29.6V

Balanced charging voltage

28.8V

Floating charging voltage

27.6V

Recovery charging voltage

26.6V

Battery overvoltage protection/recovery

33V/30V

Protection function

Reverse connection, short circuit, overcharge, anti charge protection

 Display

LED

PV Inverter

Rated Capacity

1500W

1500W

2000W

DC voltage

24V

Undervoltage protection

 21V

Inverter structure

Power frequency structure

Mains input

100V/110V/120V/127V/220V/230V/240V(±25%)

Inverter output

100V/110V/120V/127V/220V/230V/240V(±2%)

Mains input charging current

10A

Working way

 Mains priority/solar power priority (optional)

Conversion time

≤4ms

Overload capacity

Overload 110% 30 seconds the machine automatically shut down; overload shutdown 120% 2 seconds; mains mode overload do not shutdown

Conversion efficiency

≥80%

Output waveform

Pure sine wave

Work environment

Temperature0-40℃,Humidity10-90%

Cooling mode

Forced air cooling

Protection function

Mains over / under-voltage, direct current is too high / undervoltage, the inverter output short circuit

Display

LCD

Output waveform distortion

≤±3%

Input and output frequency

Same of grid

Machine specifications

Size(mm)

420*145*215mm

Total G.W(KG)

     15KG

    15KG

18KG

Remarks

All specifications are subject to change without prior notice
