6 ton Natural gas,LPG,CNG,LNG fired industrial thermal oil boiler
1. Introduction of 6 ton Natural gas,LPG,CNG,LNG fired industrial thermal oil boiler

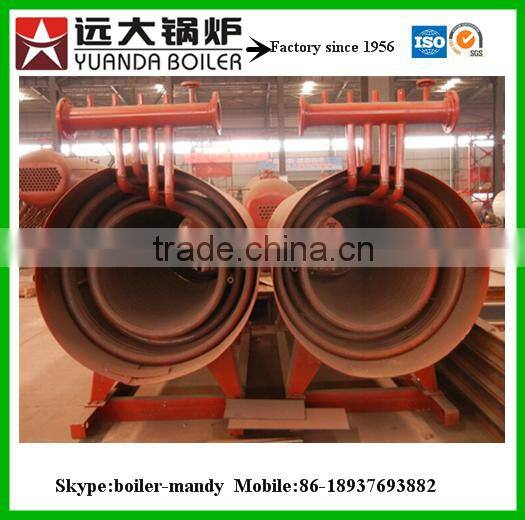

YY (Q) W series of organic heat carrier boiler is quick-fitting forced circulation fuel oil (gas) boiler, this series boiler's is compact structure, the heating area is constituted by closed coil pipes from inside, outside (or internal and external), inside coil pipes are the radiation heating surface. Fuel in inside the inner coil pipe form the combustion chamber, the fuel burn inside and release heat and absorb most of the quantity of heat after radiation heating, high temperature flue gas transfer heat through convection heating surface, then go into the air preheater (or waste heat boiler) to heat the required air (or water), the low temperature flue gas from boiler discharge directly to the chimney then to the atmosphere.
2. Product details of 6 ton Natural gas,LPG,CNG,LNG fired industrial thermal oil boiler
| Model | YY(Q)W hot oil heater / thermic fluid boiler |
| Picture | |
| Fuel | Natural gas,LPG,CNG,LNG,Diesel,heavy oil ,city gas fired /burning |
| Output | hot oil |
| Structure | coil pipe |
| Capacity | 0.7Mw 1.4Mw 2.8Mw 4.2Mw 5.6Mw 7 Mw,1 ton ,2 ton 4 ton 6 ton 8 ton 10 ton |
| Type | Horizontal type package boiler |
| Usage | food factory,rubber factory,plywood factory,drying,oil refinery |
3. Features of 6 ton Natural gas,LPG,CNG,LNG fired industrial thermal oil boiler
1).Easy and convenient to install the boiler, only setting the boiler on the foundation.

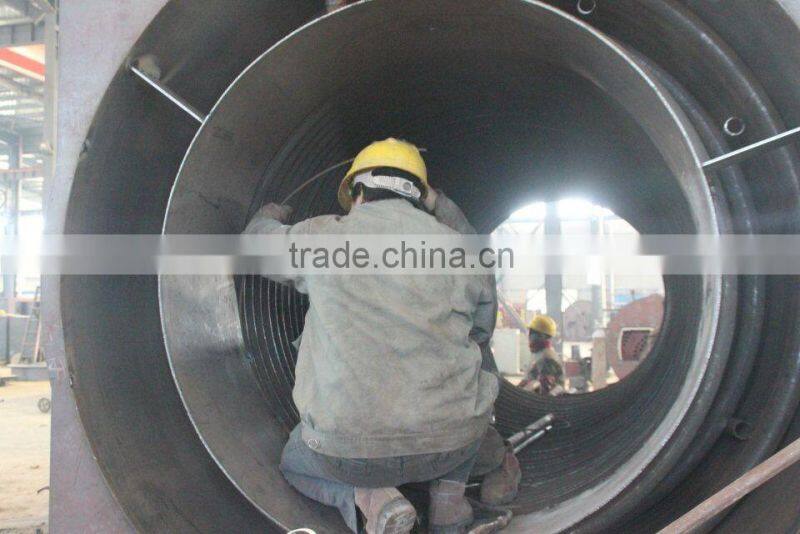

2).Heating surface is formed by round coilers, sufficient arrangement, reducing thermal load of tubes surface to ensure safety.
3).Furnace dimensions is matching with the combustion flame, positive pressure combustion, high radiation heat exchange efficiency.
4). Boiler structure is compact, saving the floor area of boiler room.
5).An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.
4. Technical parameter of 6 ton Natural gas,LPG,CNG,LNG fired industrial thermal oil boiler
|
Item Model |
YYW350 Y(Q) |
YYW700 Y(Q) |
YYW1400 Y(Q) |
YYW2100 Y(Q) |
YYW2800 Y(Q) |
YYW4200 Y(Q) |
Capacity104kcal/h |
30 |
60 |
120 |
180 |
240 |
360 |
Capacity MW |
0.35 |
0.7 |
1.4 |
2.1 |
2.8 |
4.2 |
Thermal Efficiency % |
80 |
80 |
83 |
83 |
83 |
83 |
Pressure Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
Max. Temp. °C |
320 |
320 |
320 |
320 |
320 |
320 |
Circulation Oil m3/h |
40 |
80 |
160 |
240 |
320 |
480 |
|
Connection Pipe Size (mm) |
80 |
100 |
125 |
125 |
200 |
200 |
Fuel applicable |
Diesel oil,heavy oil,Lpg,Natural gas |
|||||
5. Customers visit our factory
Warranty:
Two-year warranty and full-life service for all of our boilers
Boiler spare parts service:
A full range of original spare parts are available for all Yuanda boilers
Service before sale:
Provide relative technical data for customer choosing equipments,layout drawing,foundation,general grawing.
Service after sale:
Help customer for installation and traing.
Maintenance and repair for two years.
Henan Yuanda boiler Co,. Ltd, located in Xihua country, Henan province, is the leading manufacturer of industrial boiler in China. We are professional in manufacturing boilers for 60 years till now(established in 1956). Our company is one of the leading enterprises which firstly obtained the national boiler manufacturing license in China. We have our own factory, professioanl engineers and sales team. Our products are not only well-sold in China, but also export to lots of countries and regions. Our aim is "Yuanda warm every corner of the world".
Our products series include more than 150 kinds. Mainly includes:
- 0.2-20ton/hour industrial boilers with below 2.5Mpa pressure
- Steam boiler or hot water boiler
- Fuel: coal or biomass or gas or oil etc.
- Model: DZL, SZL, WNS, LHS, LNB, LSC etc

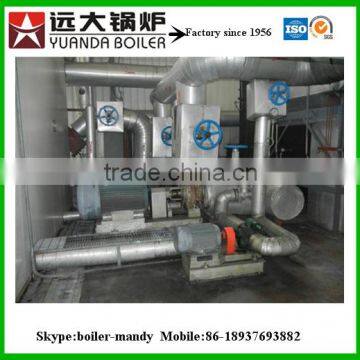

The Process From Manufacturing to Installation of Our Boiler
