4 ton high quality industrial gas fired thermal oil boiler for plywood factory

 4 ton high quality industrial gas fired thermal oil  boiler for plywood factory

1. Introduction of  4 ton high quality industrial gas fired thermal oil  boiler for plywood factory

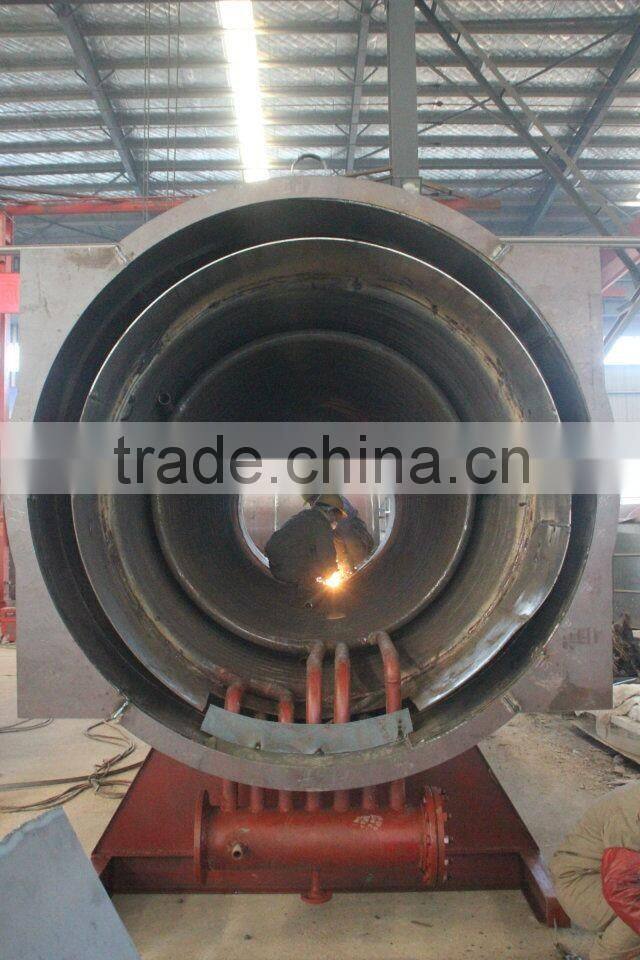

YY (Q) W series of organic heat carrier boiler is quick-fitting forced circulation fuel oil (gas) boiler, this series boiler's is compact structure, the heating area is constituted by closed coil pipes from inside, outside (or internal and external), inside coil pipes are the radiation heating surface. Fuel in inside the inner coil pipe form the combustion chamber, the fuel burn inside and release heat and absorb most of the quantity of heat after radiation heating, high temperature flue gas transfer heat through convection heating surface, then go into the air preheater (or waste heat boiler) to heat the required air (or water), the low temperature flue gas from boiler discharge directly to the chimney then to the atmosphere.

2. Product details of  4 ton high quality industrial gas fired thermal oil  boiler for plywood factory

Model	YY(Q)W hot oil heater / thermic fluid boiler
Fuel	Natural gas,LPG,CNG,LNG,Diesel,heavy oil ,city gas fired /burning
Output	hot oil
Structure	coil pipe
Capacity	0.7Mw 1.4Mw 2.8Mw 4.2Mw 5.6Mw 7 Mw,1 ton ,2 ton 4 ton 6 ton 8 ton 10 ton
Type	Horizontal type package boiler
Usage	food factory,rubber factory,plywood factory,drying,oil refinery

3. Features of  4 ton high quality industrial gas fired thermal oil  boiler for plywood factory

1).Easy and convenient to install the boiler, only setting the boiler on the foundation.

2).Heating surface is formed by round coilers, sufficient arrangement, reducing thermal load of tubes surface to ensure safety.

3).Furnace dimensions is matching with the combustion flame, positive pressure combustion, high radiation heat exchange efficiency.

4). Boiler structure is compact, saving the floor area of boiler room.

5).An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.

4. Technical parameter of  4 ton high quality industrial gas fired thermal oil  boiler for plywood factory

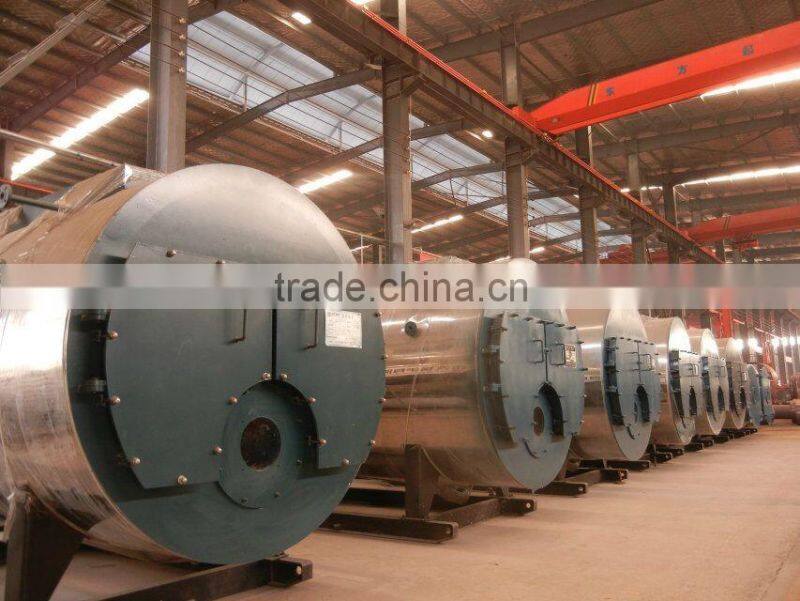

  The  Process From Manufacturing to Installation of Our Boiler
