Trade Assurance Active Power Filter -APF Filter Factory Supplier

Trade Assurance Active Power Filter -APF Filter Factory Supplier thumbnail-1

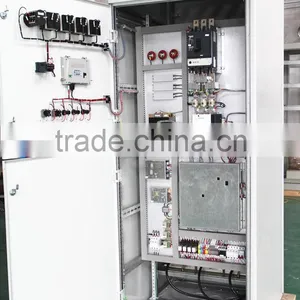

Trade Assurance Active Power Filter -APF Filter Factory Supplier thumbnail-2
Trade Assurance Active Power Filter -APF Filter Factory Supplier thumbnail-3
Trade Assurance Active Power Filter -APF Filter Factory Supplier thumbnail-4
Trade Assurance Active Power Filter -APF Filter Factory Supplier thumbnail-5
Trade Assurance Active Power Filter -APF Filter Factory Supplier thumbnail-6
Trade Assurance Active Power Filter -APF Filter Factory Supplier photo-1
Trade Assurance Active Power Filter -APF Filter Factory Supplier photo-2

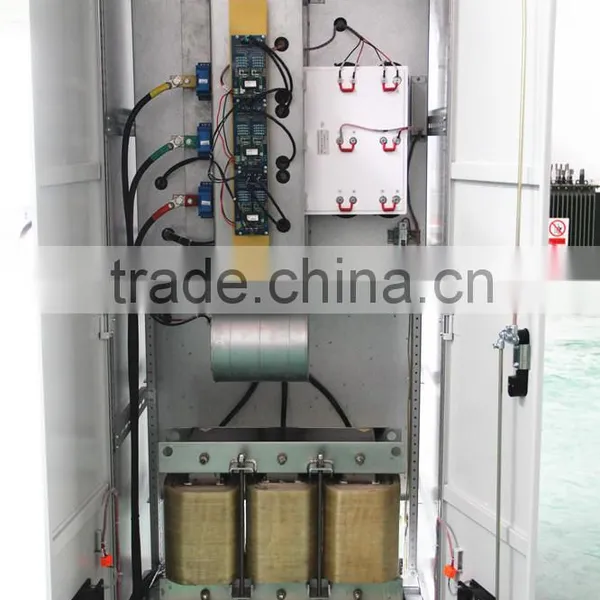

Trade Assurance Active Power Filter -APF Filter Factory Supplier photo-3

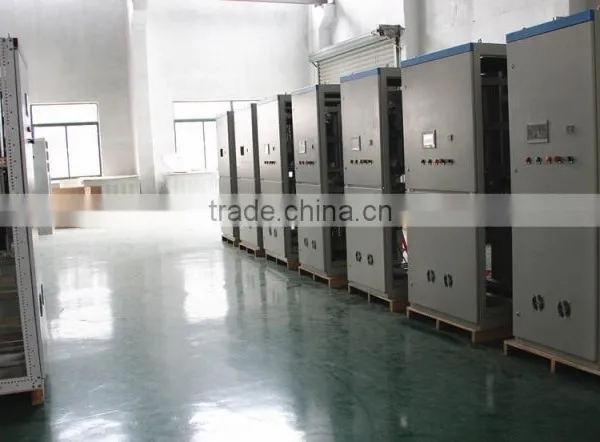

Trade Assurance Active Power Filter -APF Filter Factory Supplier photo-4
Trade Assurance Active Power Filter -APF Filter Factory Supplier photo-5

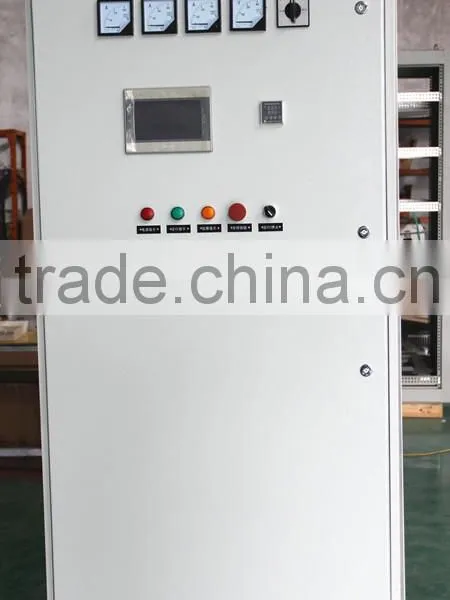

Trade Assurance Active Power Filter -APF Filter Factory Supplier photo-6
US$ 9,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BoCheng
Model Number:
BC-A
Contact Supplier Request Quote Chat Now
Shanghai Bocheng Electrical Hardware Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name BoCheng
Model Number BC-A
Product Description

Active Power Filter (APF, the Active Power Filter) connected to the electricity grid in parallel manner, by high precision sampling CT real-time monitoring the load current, after converted into a digital signal processor can read through a series of operations, in PWM modulation way, control the core of intelligent power module output and harmonic component are equal in size, opposite phase current, achieve the goal of purification to eliminate harmonic power grid.

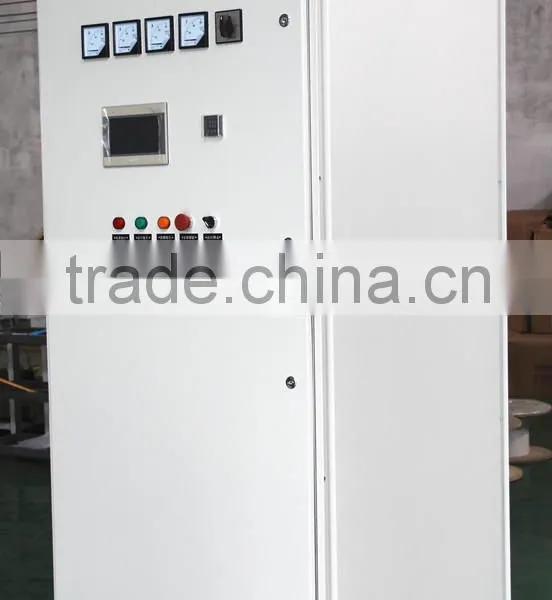

Active Power Filter

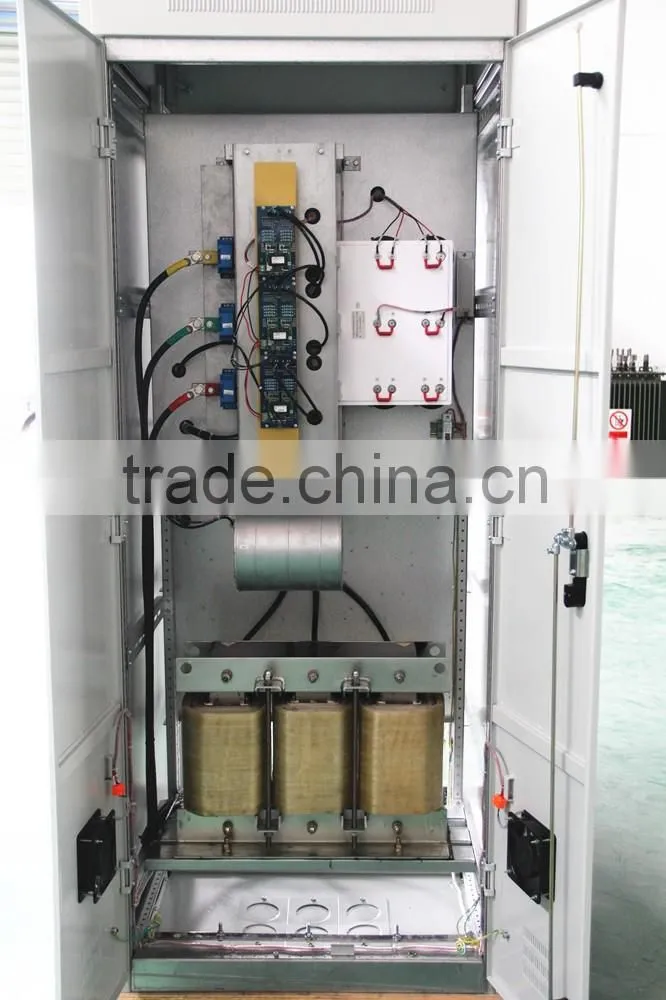

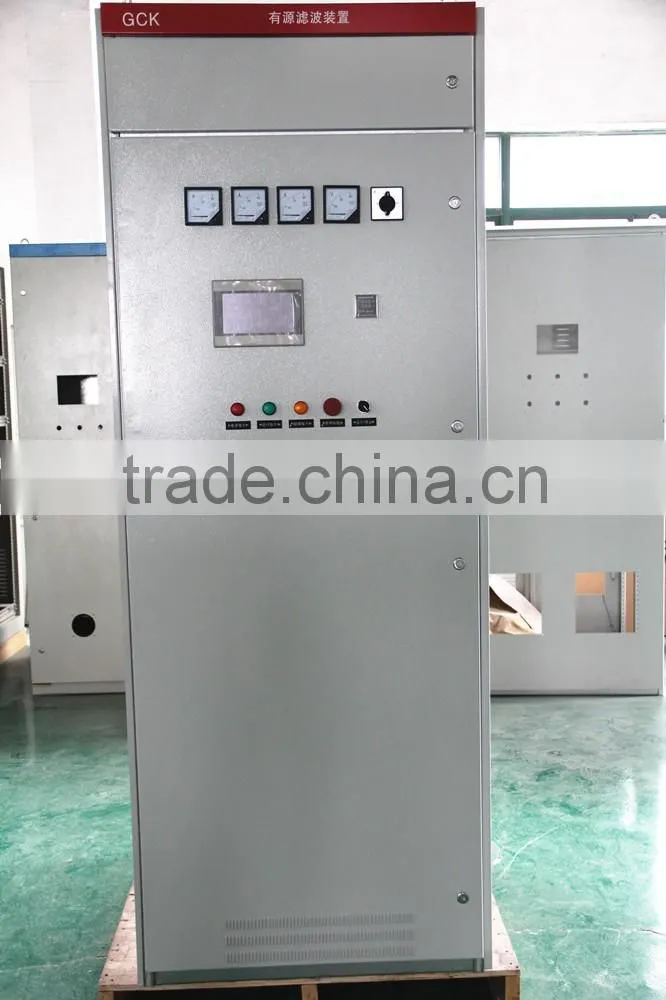

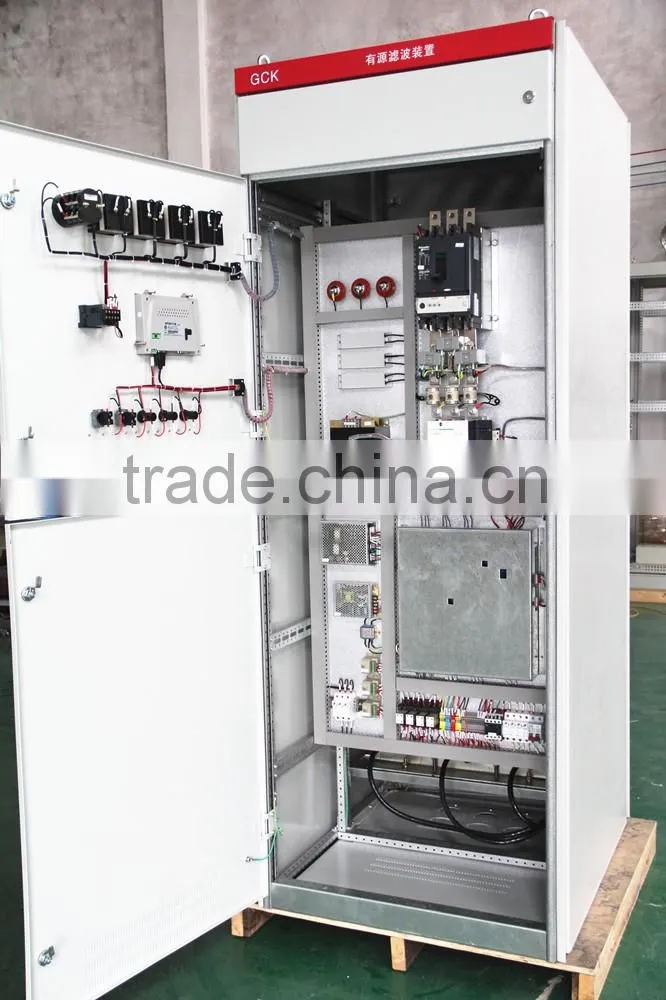

Detailed Images
Type
Three phase three wire
Three phase four wire
Parameter
BC-A-100A(100A~500A)-03-400V(660V)-M
BC-A-100A(100A~250A)-04-400V(660V)-M
filter range
2-50 times (eliminate all or selected number of harmonics )
Filter harmonic degree setting
Under the rated capacity, the maximum degree of elimination of harmonics
Harmonic current distortion rate
≦5%
Response time
≦1ms
Compensation way
Harmonic compensation,reactive compensation,or harmonic reactive with filling
Switch frequency
20KHz
Parallel operation ability
N set in parallel，professional advice up to 10 set.
Effective power loss
< rated capacity 3%
Display functions

（user interface）
Frequency,power factor,voltage and current value,total current distortion rate, frequency spectrum, current waveform，Total load current value, output current valueOperation mode setting, dry node settings, fault information and operation time
Protection mode
Input under-voltage, lacking input phase, over-current, overheating, DC bus undervoltage, overload automatic current limit protection
Cooling mode
Force-air cooling
Noisy
≦65dB(A)
IP
IP20 （higher protection level can be customized ）
Color
Shallow camera gray（other colors can be provided as required）
I-direction
Aspirant line / down line
Condition
Indoor installation , it is recommended to install an altitude of not more than 2400m (higher altitude to be reduce capacity to use)
Ambient temperature
-25℃～45℃

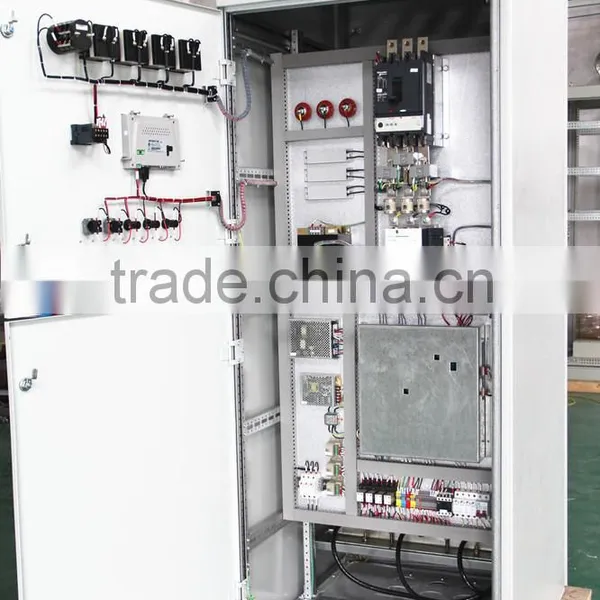

Detailed Image
